- 37 -
(19)

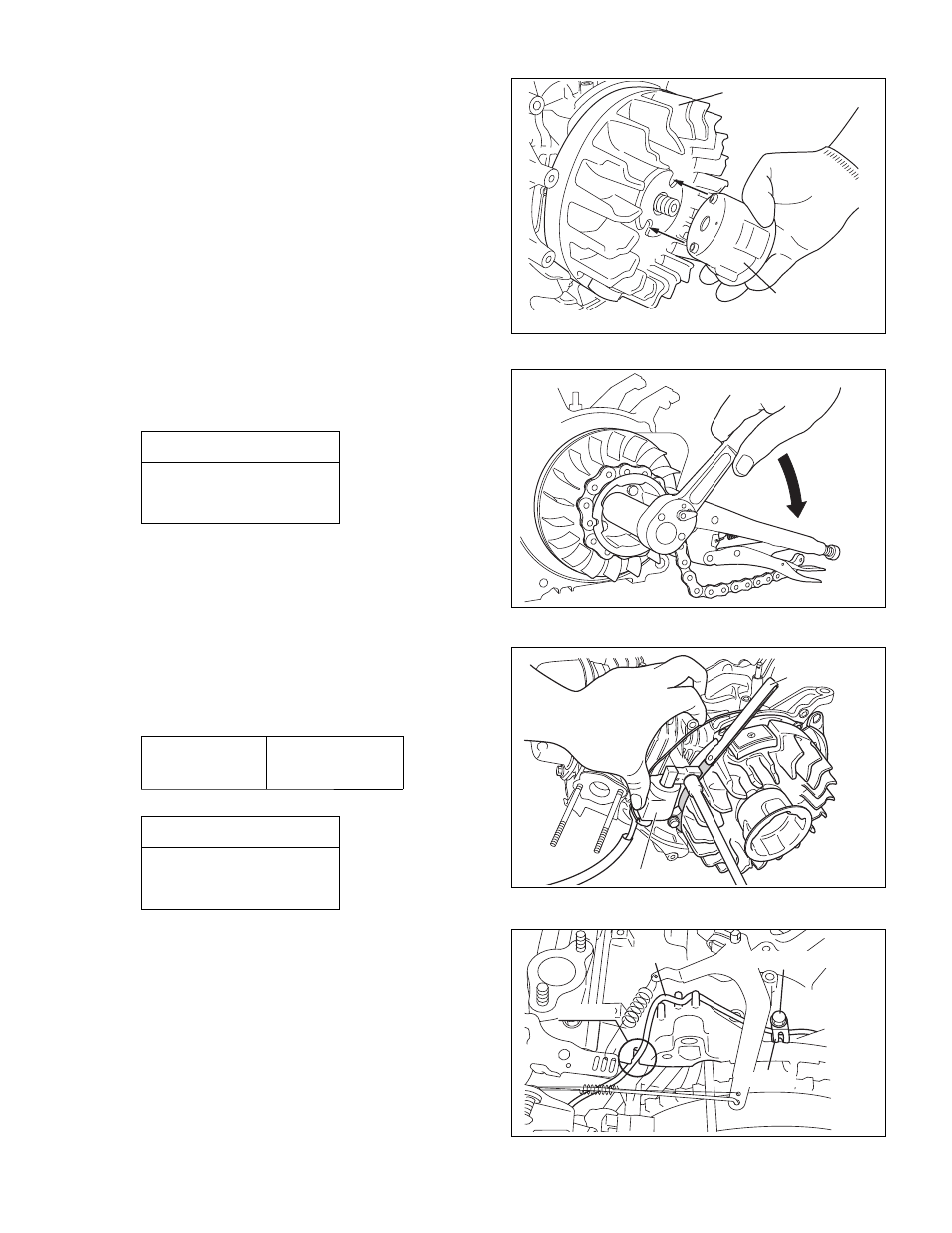

FLYWHEEL, COOLING BLOWER
and STARTING PULLEY
NOTE:
When mounting the flywheel, be sure to
wipe off any oil on the tapered portion
of the crankshaft and flywheel.
a) Mount the flywheel on the crankshaft.
b)
Install cooling blower and starting pulley to
the crankshaft.
c)
Tighten crankshaft nut with locking pliers
adopted as shown in the illustration.
COOLING BLOWER
STARTING PULLEY
Fig.5-54
Fig.5-55
Fig.5-56
Fig.5-57
IGNITION COIL
THICKNESS
GAUGE
M6 x 8 BOLT : 1 pc.
WIRE 1
CLAMP
NOTCH
Align the 2 bosses of starting pulley with the depression of flywheel.
(20) IGNITION COIL
When mounting the ignition coil, insert a
thickness gauge between the ignition coil
and the flywheel to check the air gap.
M18 Nut : 1 pc. (24mm box wrench)
M6 × 25 mm bolt and washer : 2 pcs.
Make sure to put in the wire 1 to the notch on
the crankcase, and tighten it with the clamp.
(M6×8 mm bolt : 1 pc.)
Tightening torque
100.0 - 120.0 N・m
(1000 - 1200 kgf・cm)
(72.3 - 86.8 ft・lb.)
Tightening torque
7.0 - 9.0 N・m
(70 - 90 kgf・cm)
(5.1 - 6.5 ft・lb.)
Air gap
0.3 - 0.5 mm
(0.012 - 0.020 in.)
