- 14 -

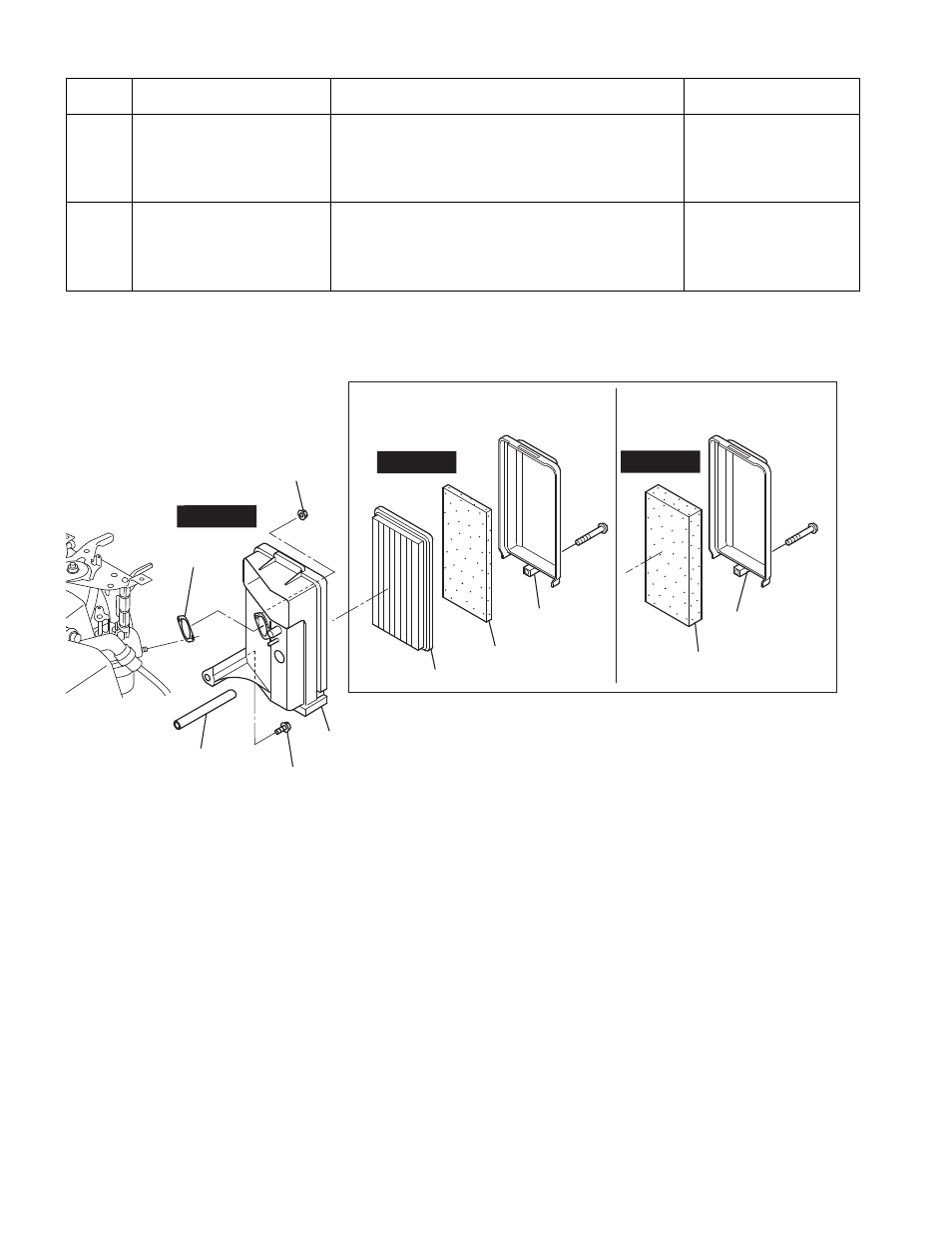

Fig.5-4
Step Parts to remove Remarks and procedures Fasteners
3
Air cleaner cover Remove the air cleaner cover and element. - screwdriver
4
Air cleaner Remove the air cleaner while pulling the breather pipe
away from the rocker cover. 10 mm box spanner
M6 nut : 2 pcs.
M6 x 16 : 1 pc.
PAPER ELEMENT
URETHAN FOAM
URETHANE ELEMENT
TYPE DUAL ELEMENT TYPE
AIR CLEANER
COVER
URETHAN FOAM
AIR CLEANER
COVER
AIR CLEANER BASE
M6 FLANGE NUT : 2 pcs.
M6 x 16 FLANGE BOLT : 1 pc.
GASKET
BREATHER PIPE
STEP 3
STEP 4
STEP 3
