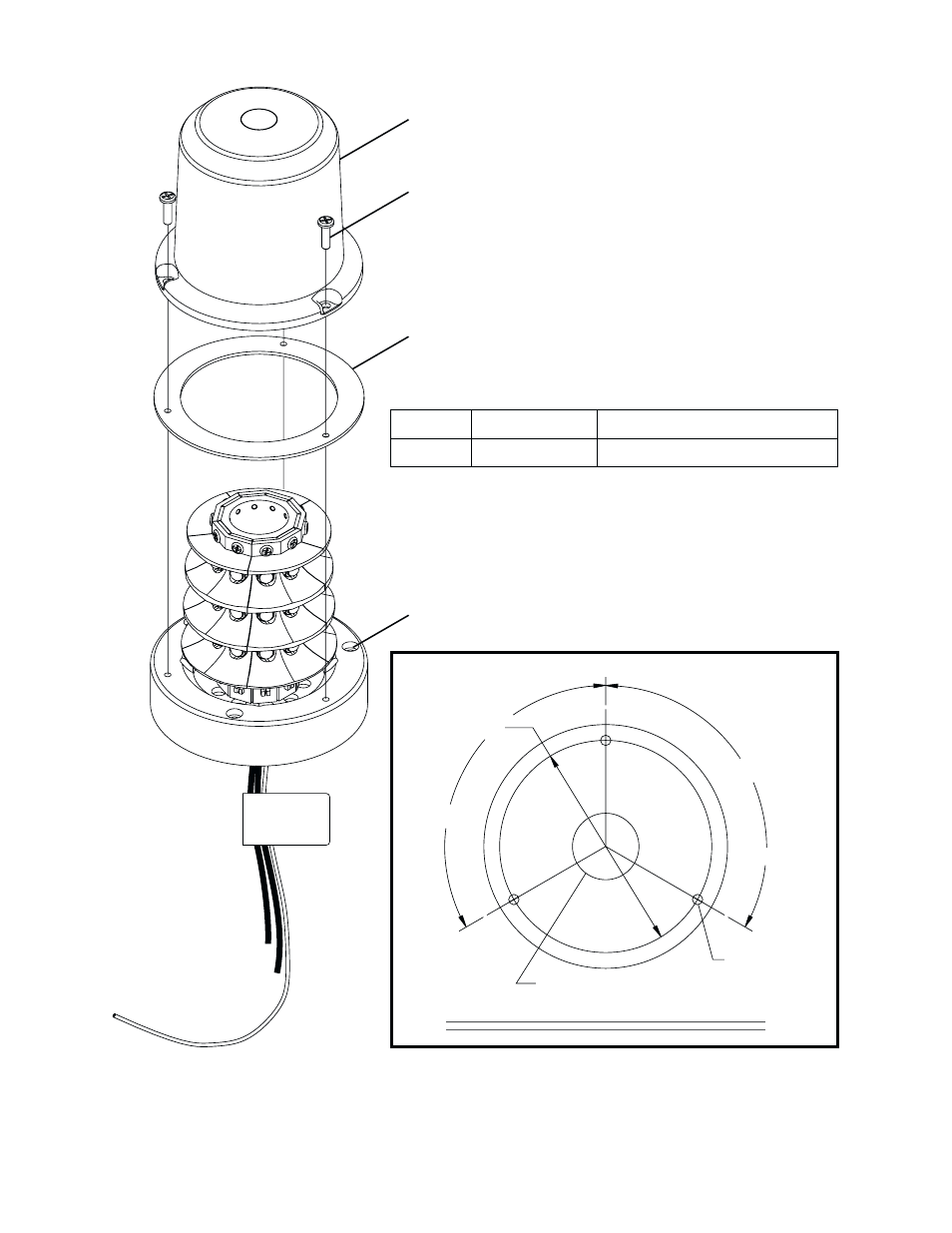

Lens
P/N: 68-4990257-30
Screw
P/N: 14-062216-05M
Gasket
P/N: 38-0250843-00
Model
7090500 Part Number
01-0770905-00 Description
28VDC, No Connector
Suggested Mounting Hole Pattern
120°
3.190”
3x#6-32 MTG
1.00” Clearance for wires
120°
“RTV” required after hardware installation
for inverted (bottom) mounted units
