Basic Operations

Part 2

3

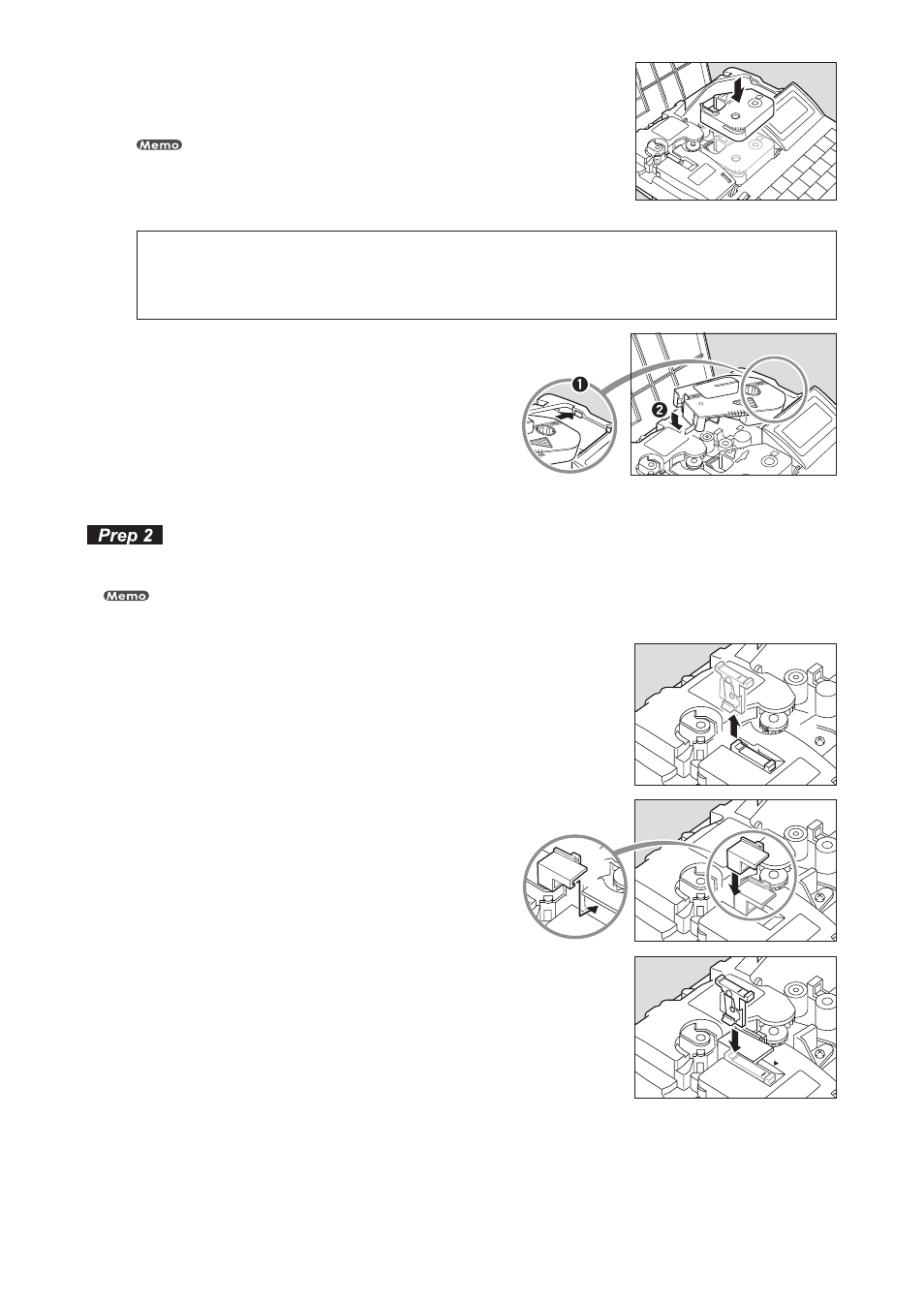

Install the ribbon cassette in the printer.

Press it firmly so that it clicks into place.

If the ribbon cassette is loose, the ribbon may not be detected, so be sure to press it in until
it clicks.

CAUTION

Do not touch the connector (metal part)

Do not hold the connection terminal (metal part) of the cassette. Doing so could cause an
improper recognition of the cassette.

4

Install the wrap-around tape cassette into the

printer.

Align the tab on the wrap-around tape cassette
with the hole in the printer, and then push the
cassette in until it clicks into place.

Installing the wrap-around tape guide

Install the wrap-around tape guide

If the wrap-around tape guide has been installed, verify that it is installed correctly.

1

Pull out the cutter.

2

Install the wrap-around tape guide.

Press the guide firmly so that it hooks under the
ledge in the machine.

3

Install the cutter.

To ensure correct orientation, align the “-” mark on the cutter with
the “

” mark as shown, and insert the cutter all the way in.
