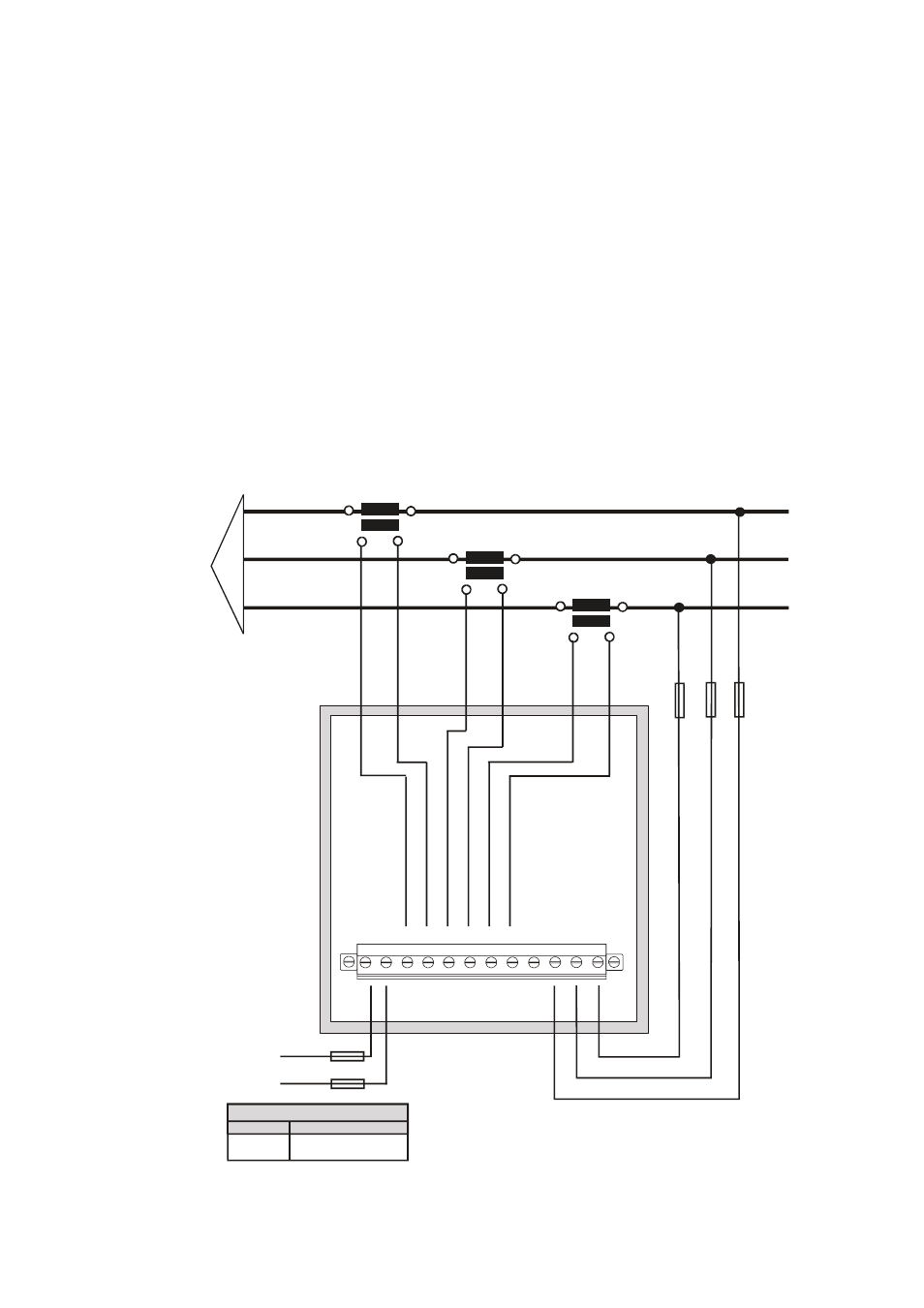

b.-Three-phase network – 3 wires (low voltage):
S1
P1
S2
P2
L1
L2
L3
S1
P1
S2
P2
S1
P1
S2
P2
VL3
VL2
VL1
1 2 3 4 5 6 7 8 9 10 11 12
A.C. POWER SUPPLY
PowerSupply (SDC Model)
Terminal
Description
+ V d.c.
- V d.c.
1
2
