- B 15 -
Short Seam Automat 2110-4 / 2111-4 Working Instructions Beisler Automated Sewing Equipment
B.2
Functions of the machine
B.2.2 Line-up and alignment

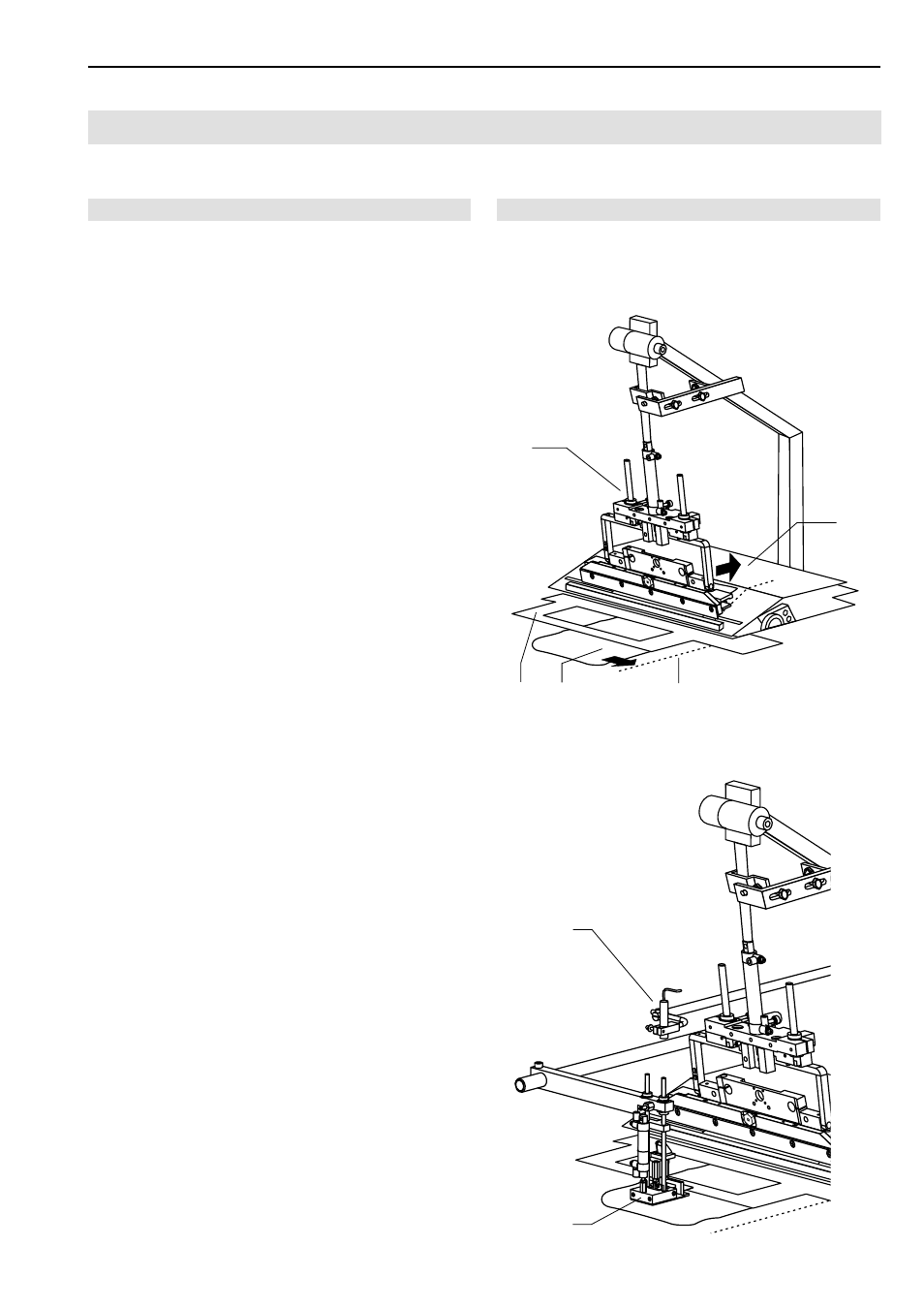

Crimping over and picking up pocket edge, Fig. 4:
The folder 1 moves to the right to the pick-up
plate 5. The pocket edge is crimped over and picked
up. During this time, the pocket bag is positioned.
Pocket bag line-up position, Fig. 4:
The pocket bag 3 is lined up within the operating ran-
ge of the pocket bag clamp 2. The exact position is
determined by a marking 4 at the working plate.
Manual labeling, Fig. 5:
Single labels are positioned manually with the pocket
bag. The exact line-up position of the labels is marked
with the reticle of the guide laser 1.
Automatic label feed system, Fig. 5:
The short seam automat can be equipped with an au-
tomatic label feed system 2 for folded labels. This sy-
stem is activated with a footswitch, the magazine is
supplied manually. The label feed system is an inte-
gral part of the machine operation and is controlled by
the selectable operating mode.
Fig. 4/5
Fig. 4
Fig. 5
2
5
1
4 3
1
2
