Configuration
C-12
Vipersat CDM-570/570L User Guide
This calculator uses the site budgetary numbers to determine the maximum
power value when operating at peak transmission settings. After the operator
enters all parameters and selects the Calculate Max Power command, the calcu-
lator compares the values to base numbers and selected BER tables to determine
the power budget based on the total margin.

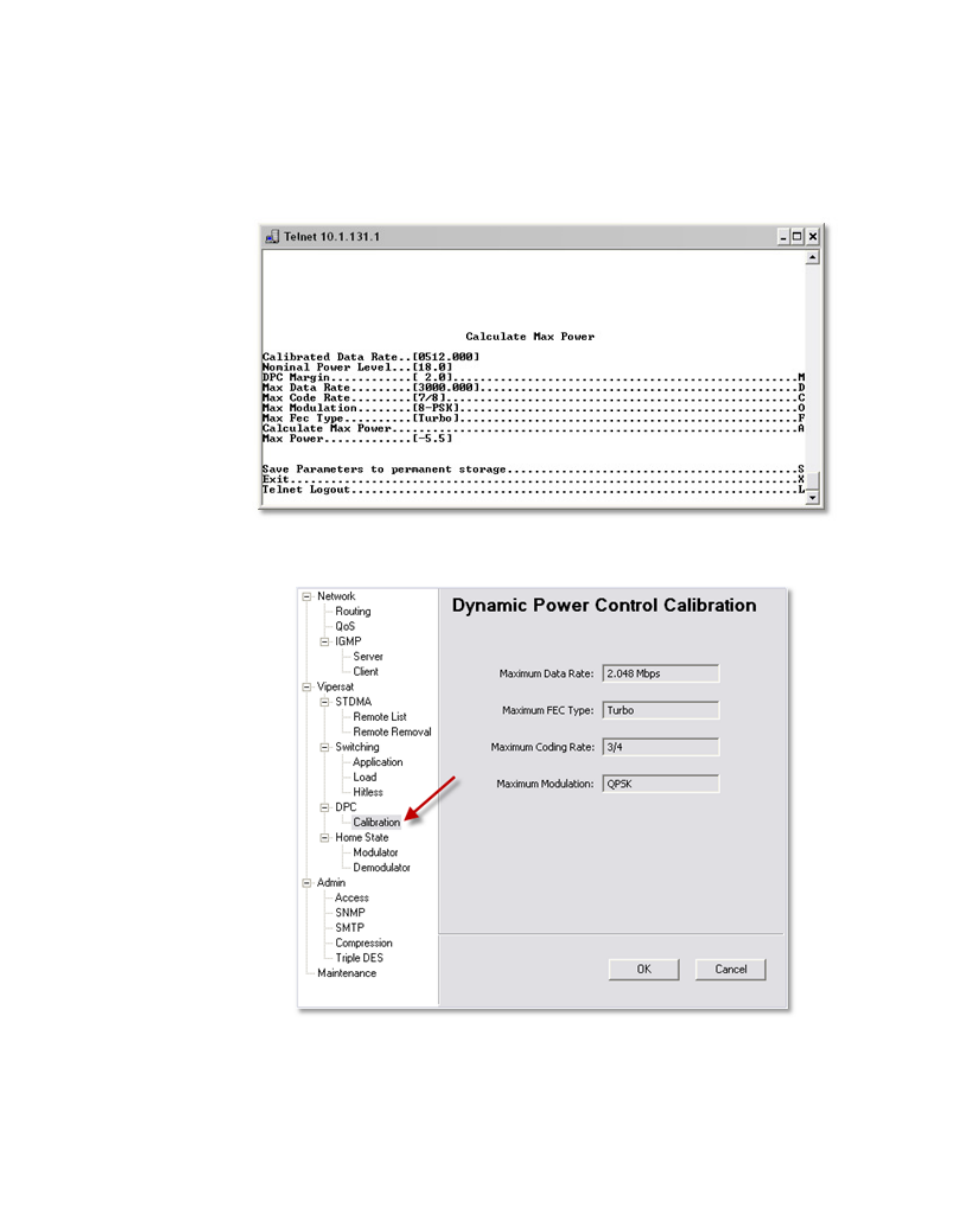

Figure C-5 DPC Calculate Max Power screen, CLI
Figure C-6 DPC Calibration dialog, Parameter Editor
