Vipersat Configuration
3-8
Vipersat CDM-570/570L User Guide
Vipersat Configuration
Enter V at the command prompt from the CDM-570/570L Main Menu shown
in figure 3-1 to display the Vipersat Configuration screen shown in figure 3-6.

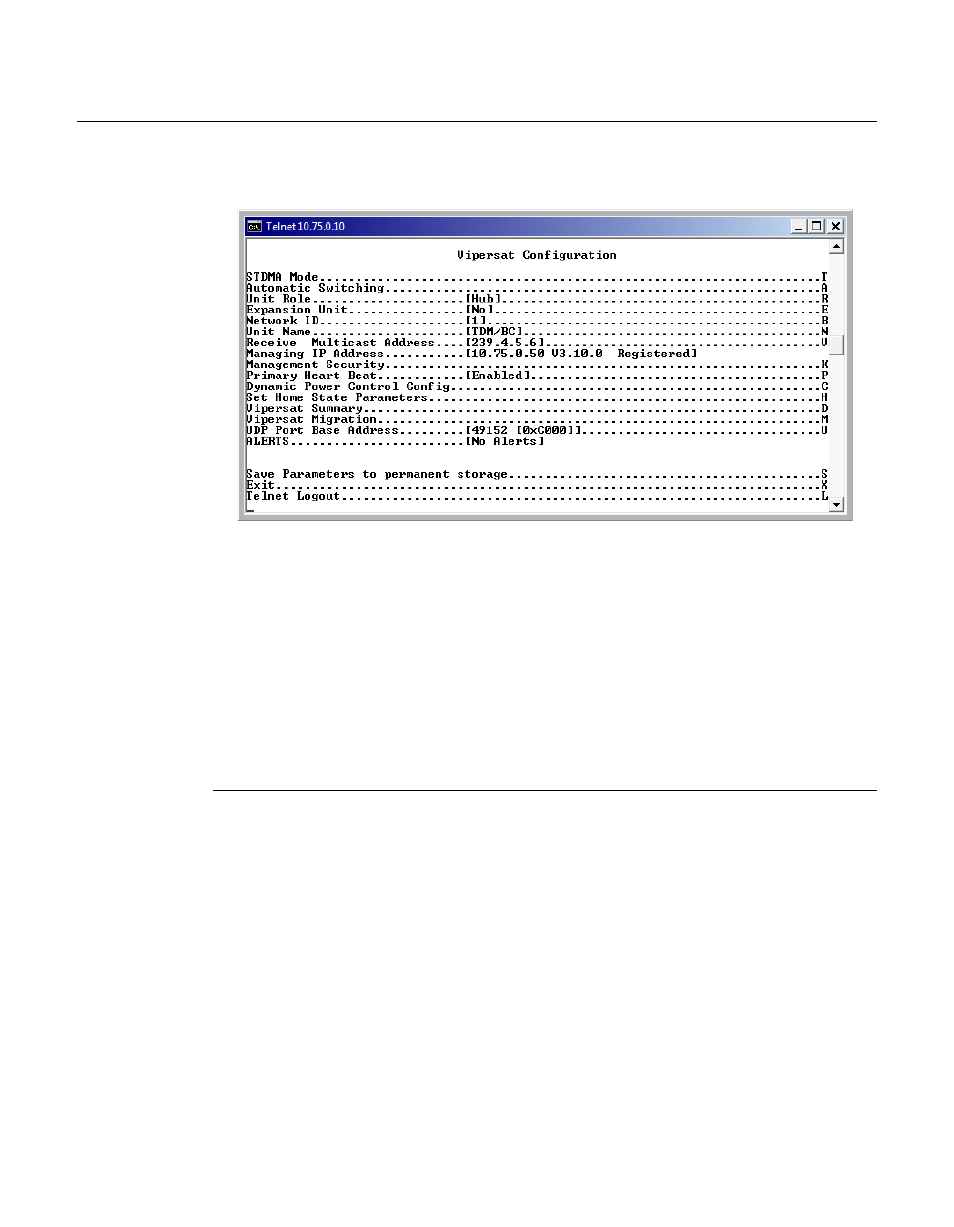

Figure 3-6 Vipersat Configuration screen (Hub)
This menu lists the available commands for configuring a Vipersat CDM-570/
570L. Note that for the Hub modem only, the command Primary Heart Beat is
displayed in the Vipersat Configuration screen. For the Remote modem only,
the status of the Home State Revert setting is displayed.
Each of these commands is explained in the following sections.
STDMA Mode
The STDMA Mode parameters for this CDM-570/570L are accessed by enter-
ing T at the Vipersat Configuration screen command prompt.
The items in the STDMA menu will vary depending on the function the target
CDM-570/570L performs in the network (Hub or Remote) and the Hub Type
that is designated. The CDM-570/570L STDMA menu shown in figure 3-7 is
from a CDM-570/570L serving as a Hub in the network, with the Hub Type
designated as Dynamic Cycle.
For comparison, the STDMA menu for a CDM-570/570L operating as a
Remote unit is shown in figure 3-8. Note that some of the command items differ
between these two screens, and most of the items on the Remote screen are
information-only display.
