Chapter 5 Designing Labels Using LDS
322M Operator’s Manual
39
5.7.10 AN (Attribute Number)
The AN parameter has four different effects. If set to a value of “0” the character spacing is
proportional if available. Reverse Text (white on black) is created by setting the AN to a
value of “1” and printing a black box on top of the text using the Line Draw function.
(Special Note: The AN of the line field should also be set to a “1” for proper reverse
imaging.) If the AN parameter is set to a value of “2”, the character spacing will be fixed /
non-
proportional. A setting of “3” will print both fixed/non-proportional character spacing
and reversed text.
0 Proportional Character Spacing
1 Reverse Video
2 Fixed / Non-proportional Character Spacing
3 Fixed / Non-proportional Character Spacing and Reverse Video
5.7.11 Line Draw Sample
Enter the following format to produce the sample shown in Figure 10.
^D57 <CR>
2,575,609,,25,35,0,1,285,0,0 <CR>
1,110,482,,6,,,,355,5,,,,,0 <CR>
1,286,127,,6,,,,5,355,,,,,0 <CR>
^D56 <CR>
^D2 <CR>
line <CR>
^D3 <CR>

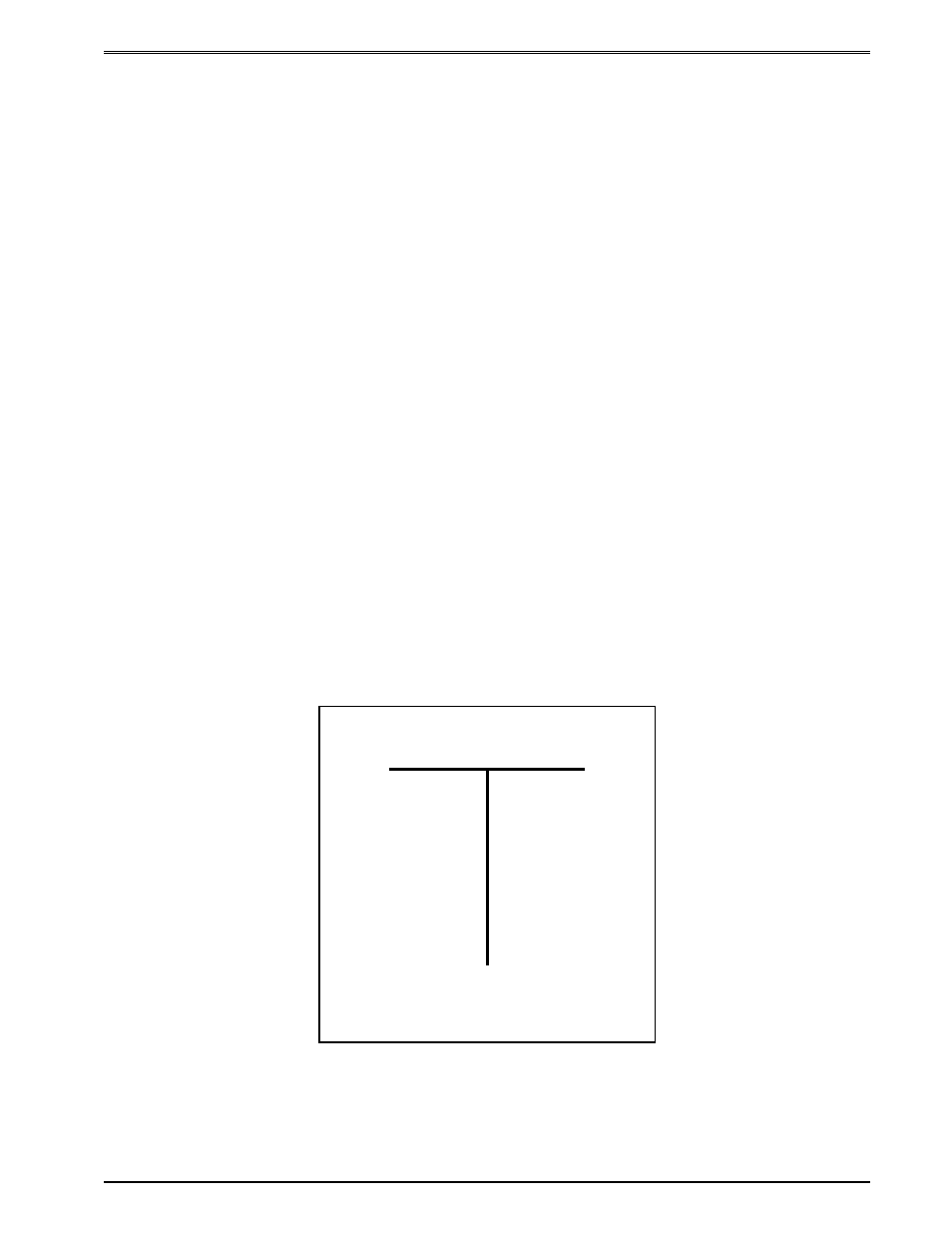

Figure 10 Line Draw Sample
