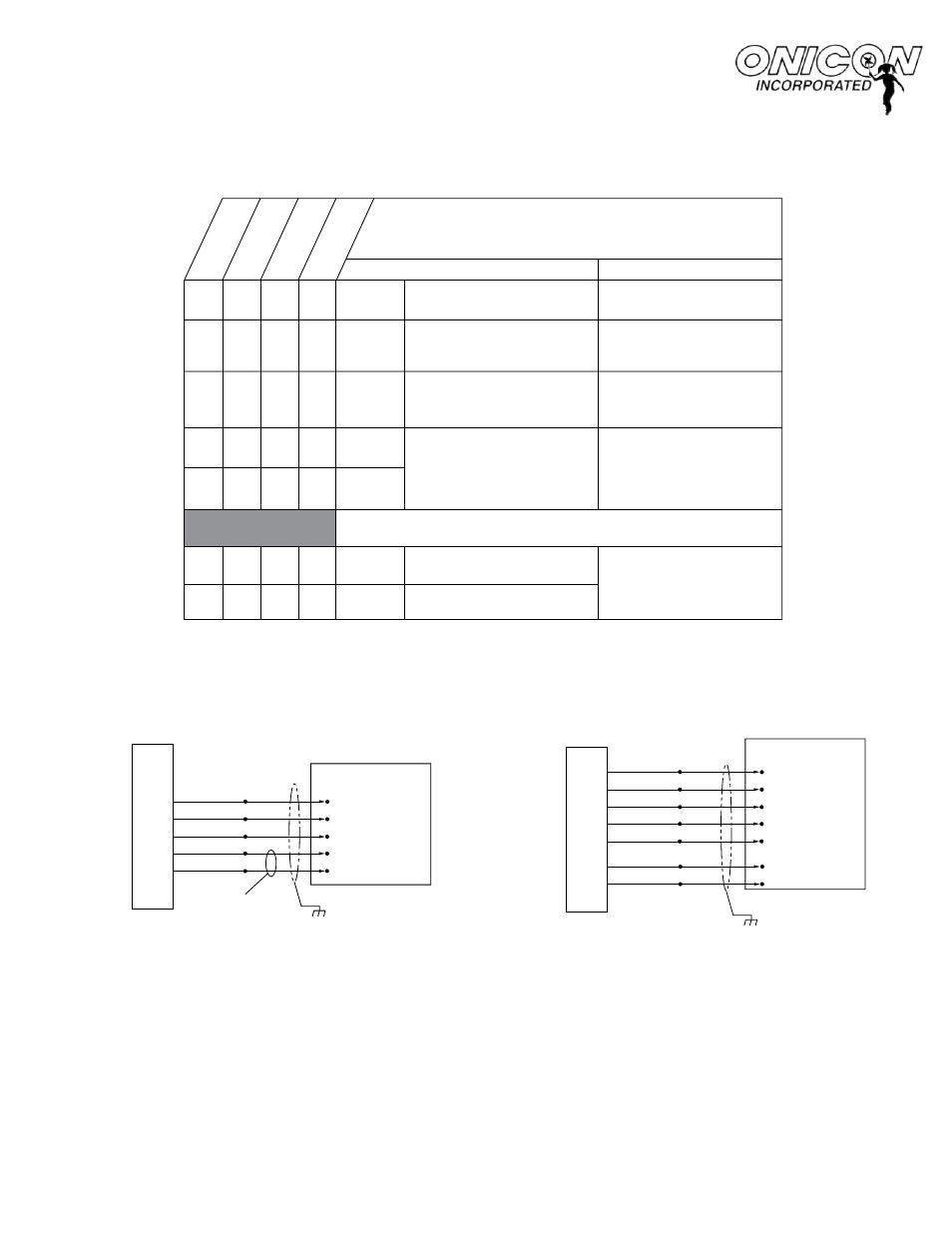

FLOW METER WIRING INFORMATION

User Connections for Models with Frequency Output

Models: F-1100, F-1200, FB-1200 & F-1300

8-02

0271-1

1500 North Belcher Road, Clearwater, Florida 33765 Tel (727) 447-6140 Fax (727) 442-5699

www.onicon.com E-mail: [email protected]

FLOW METER WIRING INFORMATION

User Connections for Models with Frequency Output

Models: F-1100, F-1200, FB-1200 & F-1300

Wiring Information

WIRE COLOR CODE

NOTES

(+) 24 ± 4 V AC/DC

supply voltage

RED

*

BLACK

(–) Common ground

(Common with pipe ground)

Connect to power supply
negative

GREEN

(+) Frequency output signal:

0-15 V peak pulse

GRAY

VIOLET

Dry contact directional

output - indicates

flow direction

Contact closed when flow

is in direction of arrow

on meter

DIAGNOSTIC SIGNALS

ORANGE Bottom turbine frequency

WHITE

Top turbine frequency

These signals are for

diagnostic purposes -

connect to local display

or BTU meter

Connect to power supply

positive

F-1

100

Single

Turbine

F-1300

Inline

F-1200

Dual

Turbine

FB-1200

Bi-Directional

FB-1200 Wiring Diagram

Connections to ONICON Display or BTU Meter

F-1100 / F-1200 / F-1300 Wiring Diagram

Flow Meter Connections to ONICON Display or BTU Meter

NOTES:

*

1. Serial Numbers 115691 and earlier require 24 VDC. Serial Numbers 115692 and higher

can accept 24 V AC/DC.

2. Black wire is common with the pipe (typically earth ground).

3. For ONICON display module or BTU meter, connect all wires provided. Refer to wiring diagram

provided with display or BTU meter.

FLOW METER

FLOW METER

RED

GREEN

BLACK

WHITE

ORANGE

GRAY

VIOLET

+ 24 V
FREQUENCY INPUT
GROUND
TOP TURBINE
BOTTOM TURBINE

DIRECTIONAL

CONTACTS

ONICON Display

or BTU Meter

RED

GREEN

BLACK

WHITE

ORANGE

+ 24 V
FREQUENCY INPUT
GROUND
TOP TURBINE
BOTTOM TURBINE

ONICON Display

or BTU Meter

F-1200 only

Output frequency is typically

below 200 Hz, but can be

up to 300 Hz

SHIELD

SHIELD

0271
