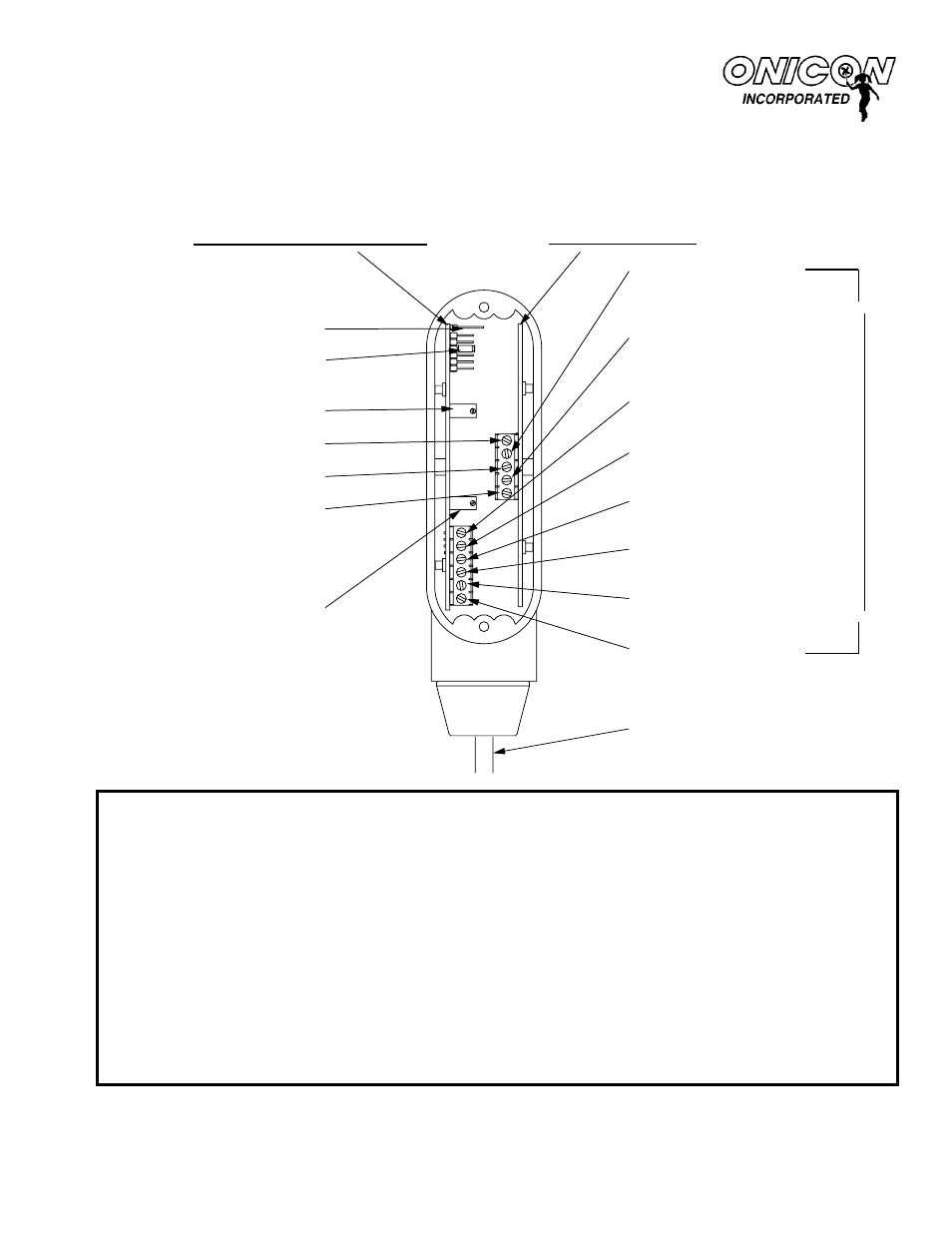

WIRING DIAGRAM
INTERNAL CONNECTIONS FOR
ISOLATED ANALOG OUTPUT
FLOW METERS
MODELS F-1111 / F-1211 / F-1311
SENSING BOARD ISOLATED ANALOG BOARD
EXTERNAL CABLE CONNECTIONS
NOTES:
8-22-00
1500 North Belcher Road, Clearwater, Florida 33765 Tel (727) 447-6140 Fax (727) 442-5699
www.onicon.com E-mail: [email protected]
0068-2
EXTERNAL CABLE
NOTE: INTERNAL CONNECTIONS
OMITTED FOR CLARITY
TOP TURBINE:
F-1211 ONLY
(WHITE WIRE)
BOTTOM TURBINE:
F-1211 ONLY
(ORANGE WIRE)
ISOLATED GROUND
(YELLOW WIRE)
4-20 mA OUTPUT
(BLUE WIRE)
0-10 V OUTPUT
(BROWN WIRE)
FREQUENCY OUTPUT
(GREEN WIRE)
COMMON GROUND
(BLACK WIRE)
+24V AC/DC SUPPLY
(RED WIRE)
TEST SIGNAL INPUT
RANGE JUMPER
(FACTORY SELECTED)
4 mA ZERO ADJUST
BLACK WIRE (BOARD TO BOARD)
GREEN WIRE (BOARD TO BOARD)
RED WIRE (BOARD TO BOARD)
10 V & 20 mA SPAN ADJUST
For use with serial numbers
115692 and later
0068-2
