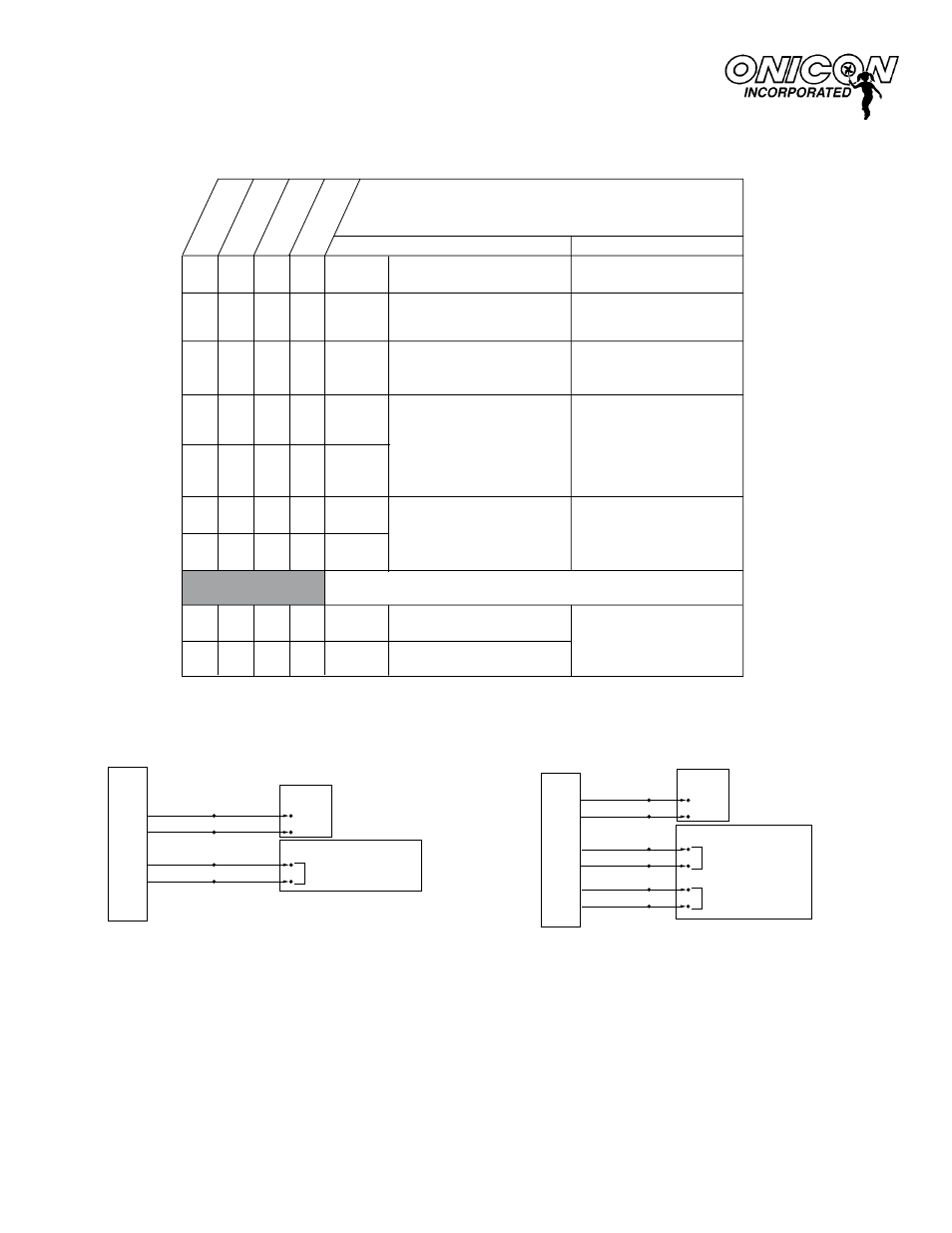

FLOW METER WIRING INFORMATION

User Connections for Models with Scaled Output
Models: F-1130, F-1230, FB-1230 & F-1330

Wiring Information

WIRE COLOR CODE

NOTES

(+) 24 ± 4 V AC/DC
supply voltage

RED

*

BLACK

(–) Common ground
(Common with pipe ground)

Connect to power supply
negative

GREEN

(+) Frequency output signal:
0-15 V peak pulse

Required when meter
is connected to local
display or BTU meter

BLUE

Dry contact scaled
output

Scaled to provide one
pulse per volumetric unit

Examples:
1 pulse per 10 gal.
1 pulse per 100 gal.

BROWN

GRAY

VIOLET

Dry contact directional
output - indicates
flow direction

Contact closed when flow
is in direction of arrow
on meter

DIAGNOSTIC SIGNALS

ORANGE Bottom turbine frequency

WHITE

Top turbine frequency

These signals are for
diagnostic purposes -
connect to local display
or BTU meter

Connect to power supply
positive

F-1130

Single

Turbine

F-1330

Inline

F-1230

Dual

Turbine

FB-1230

Bi-Directional

FB-1230 Wiring Diagram

Connections to a Control System (No Display or BTU Meter)

F-1130 / F-1230 / F-1330 Wiring Diagram

Connections to a Control System (No Display or BTU Meter)

NOTES:

*

1. Serial Numbers 115691 and earlier require 24 VDC. Serial Numbers 115692 and higher

can accept 24 V AC/DC.

2. Black wire is common with the pipe (typically earth ground).

3. For ONICON display module or BTU meter, connect all wires provided. Refer to wiring diagram

provided with display or BTU meter.

4. This is NOT a "loop-powered" instrument. DO NOT connect power to any of the signal

output wires (blue, brown, green, orange or white)

FLOW METER

FLOW METER

RED

BLACK

BLUE

BROWN

GRAY

VIOLET

Power

Source

+ 24 V

COM

Control System

BINARY (DIGITAL) INPUT

(Rate)

BINARY (DIGITAL) INPUT

(Direction)

RED

BLACK

BLUE

BROWN

+ 24 V

COM

Power

Source

Control System

BINARY (DIGITAL) INPUT

0275
