Compact HMI and Compact HMI Editor Operations Manual
Super Systems Inc.
Page 46 of 60

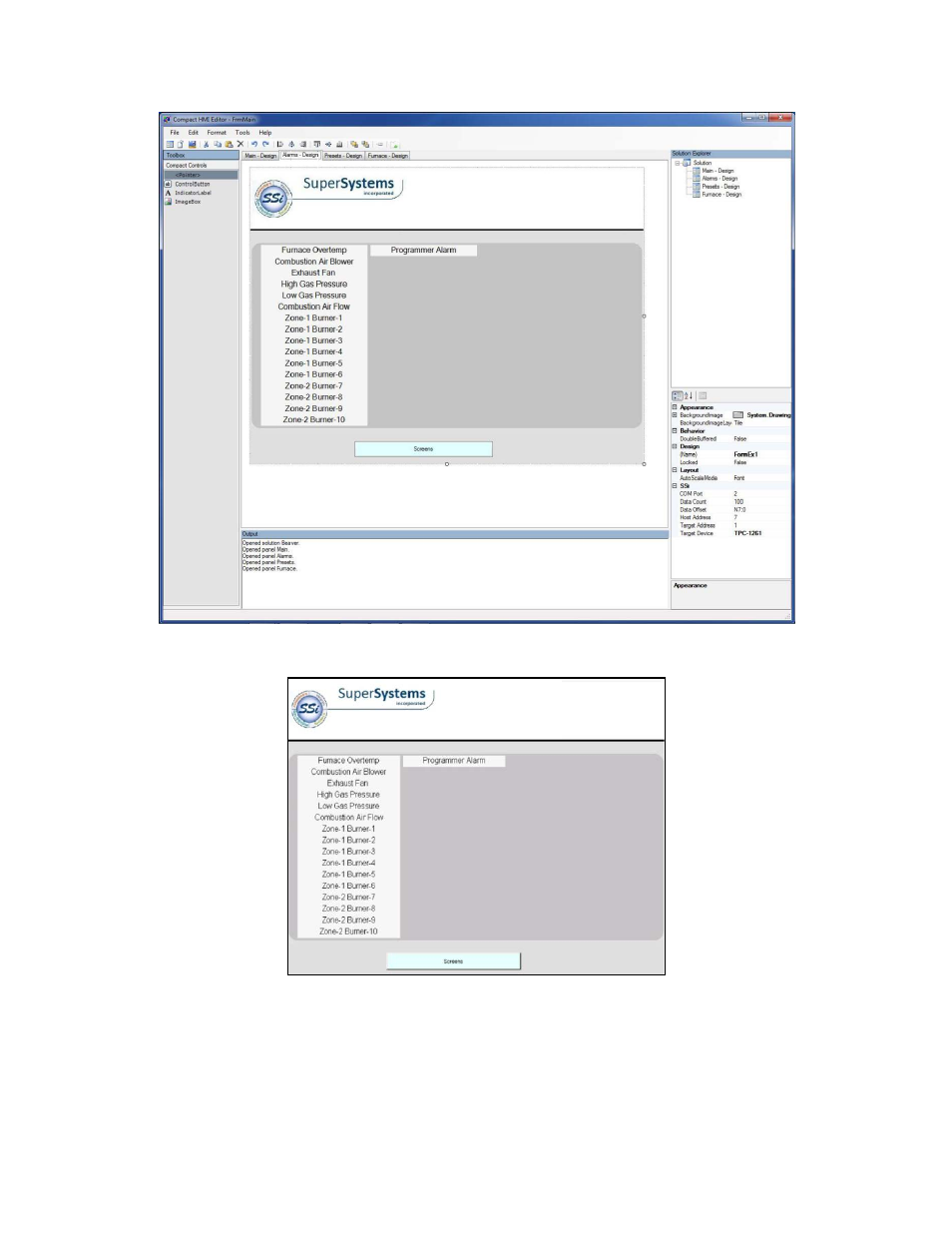

Figure 49 - Alarms Panel (Compact HMI Editor)
Figure 50 - Alarms Panel (Compact HMI - Touch Screen)
• Presets Panel. In the example, this Panel is used to enter furnace control presets. The
Panel also displays setpoints and process variables (PVs) for parameters such as
combustion air pressure. The Compact HMI Editor view for this Panel is shown in Figure 51;
the Compact HMI (Touch Screen) view is shown in Figure 52.
