– 24 –

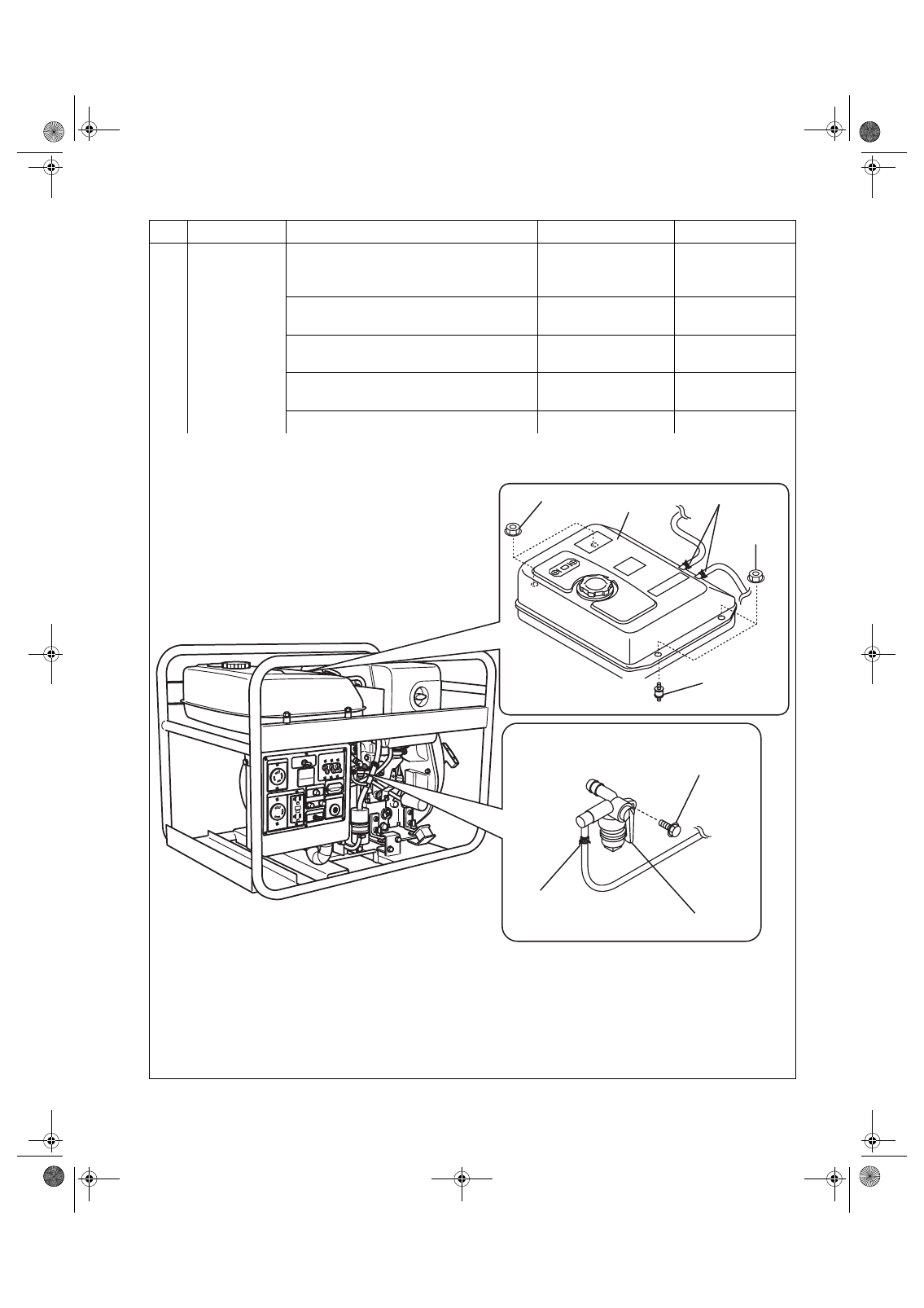

9-3 DISASSEMBLY PROCEDURES
Step Part to remove
Description
Remarks
Tool
1
Fuel Tank
(1) Close fuel cock.
Draining tank of fuel
before disassembly is
unnecessary.
(2) Remove the fuel cock from the bracket
(6 ø flange bolt).
(3) Remove the hose clamps (three
places).
Plier
(4) Loosen the four nuts (8 ø) and remove
the fuel tank.
Take care of spilt fuel
from the fuel tank.
10 mm spanner or
box spanner
(5) Remove the fuel tank mount. (4 places)
HOSE CLAMP
FUEL TANK
HOSE CLAMP
8 ø NUT
8 ø NUT
FUEL COCK
6 ø FLANGE BOLT
MOUNT
GENERATOR_GS2380.fm 24 ページ 2007年10月1日 月曜日 午前9時13分
