– 36 –

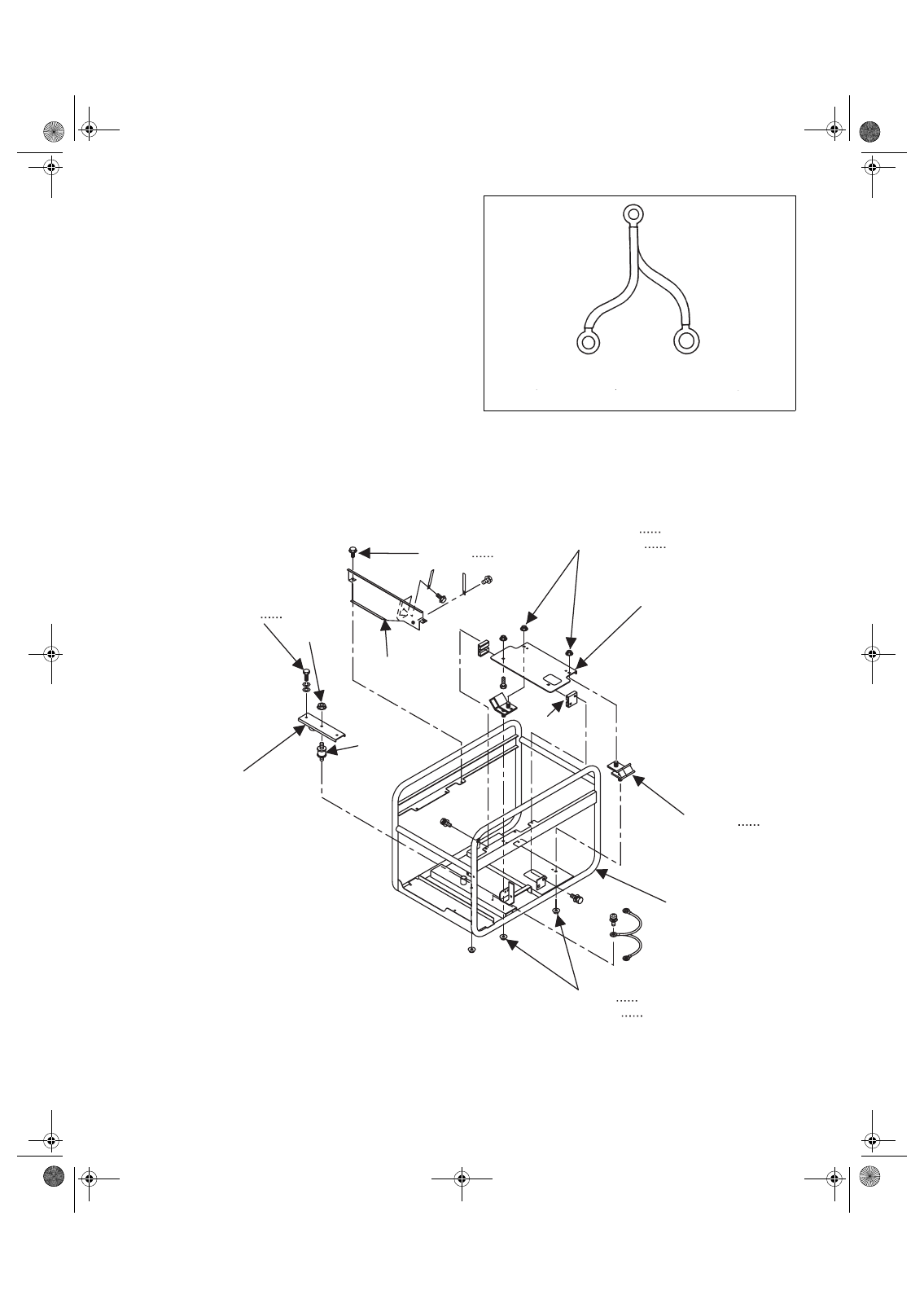

9-4-5 PIPE FRAME
(1) Attach two mount rubbers for the engine base
onto the frame.
Tighten the nuts from the bottom side of the
frame.
8 ø flange nut ............................. 2 pcs.
Tightening torque: 11.8 ~ 13.7 N-m (120 ~
140 kg-cm, 8.68 ~ 10.1 ft-lb)
(2) Attach the 5 ø terminal of grounding wires
(green/yellow) to the unpainted thread hole of
the frame base plate using a 5 mm brass
screw.
(3) Attach the generator mount rubber to the frame.
NOTE: The mount rubbers are selected to reduce vibration most effectively by model and its
frequency.
Be sure to use the correct mount rubber for your generator.
5 ø TERMINAL
(FRAME)
8 ø TERMINAL
(REAR COVER) 6 ø TERMINAL
(CONTROL BOX)
PIPE FRAME
GENERATOR BASE
MOUNT RUBBER
MOUNT RUBBER 2 pcs.
RGD3300H: 8 ø NUT
RGD5000H: 10 ø NUT 2 pcs.
2 pcs.
8 ø NUT
8 ø BOLT 2 pcs.
6 ø BOLT 2 pcs.
FUEL TANK
BUFFLE PLATE
ENGINE BASE
STOPPER
RGD3300H: 8 ø NUT
RGD5000H: 10 ø NUT 2 pcs.
2 pcs.
