11-18
Maintenance and service

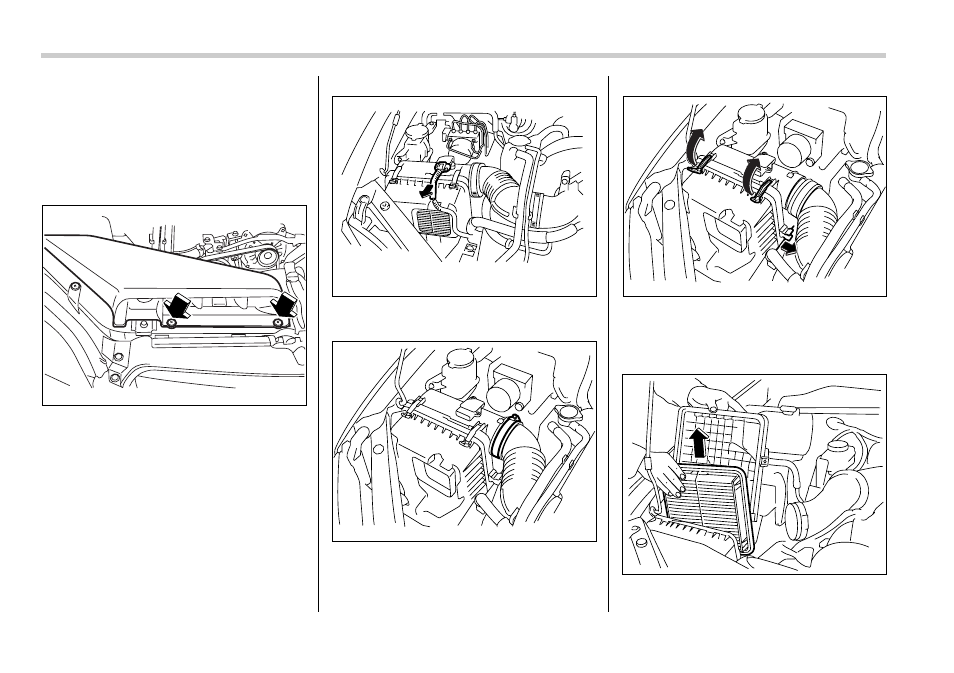

7. To install the air cleaner case cover, in-
sert the three projections on the air clean-
er case cover into the slits on the air clean-
er case and then snap the two clamps on
the air cleaner case cover.
T Turbo models
0
1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air in-
take duct.
2. Unplug the connector that is attached
to the top of the air cleaner case.
3. Use a screwdriver to remove the duct
that is connected to the air cleaner case
cover.
4. Unsnap the two clamps holding the air
cleaner case cover.
At the same time, pull the hose from the
clamp that runs next to the case cover.
5. Open the air cleaner case cover and
B00116
B00206
B00207
B00201
B00114
