CONNECTOR PINOUTS
14.1

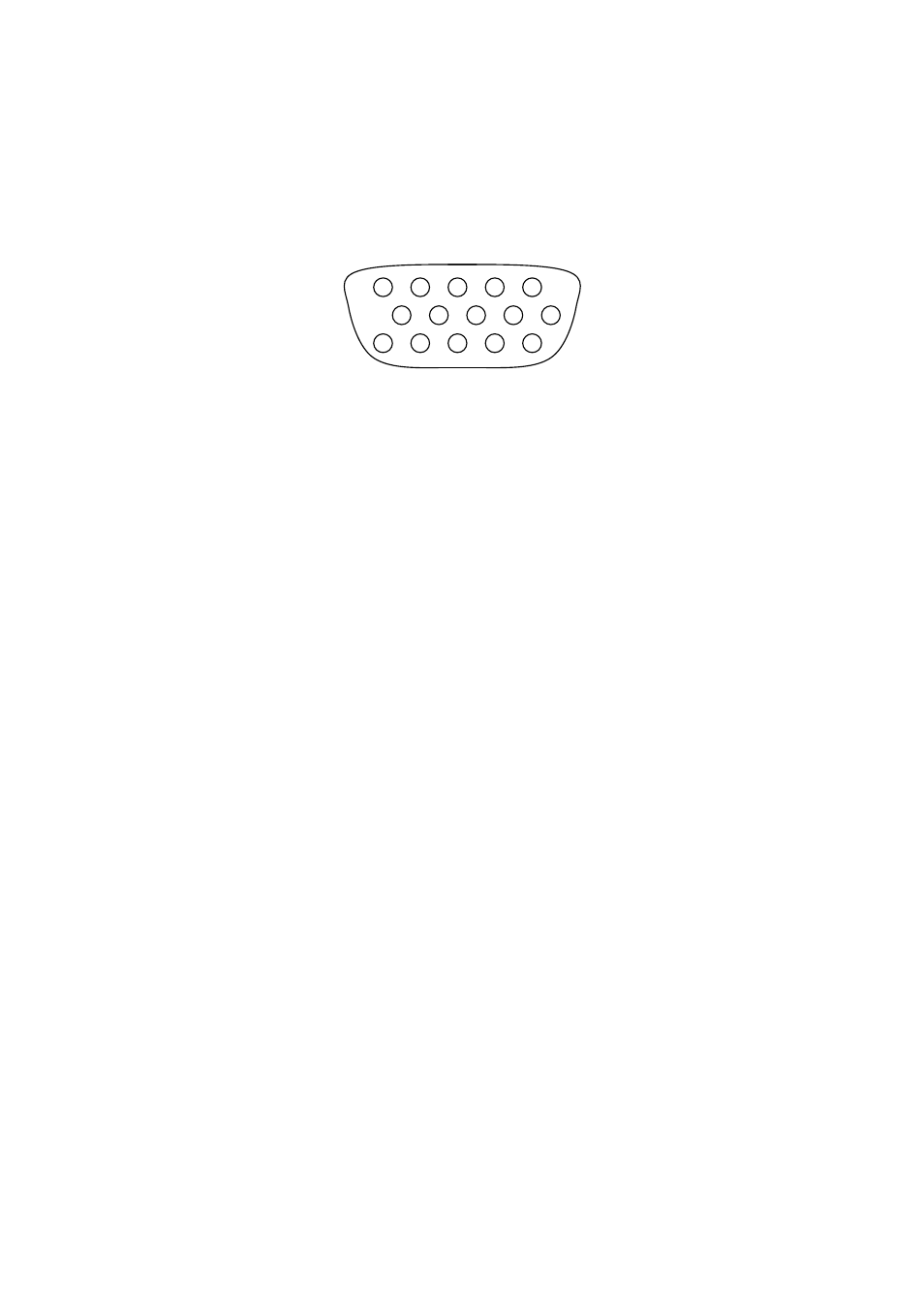

HD15 connector
1. Red / Pr / R-Y
2. Green / Y
3. Blue / Pb / B-Y
4. ID2 (input & output linked)
5. GND
6. GND
7. GND
8. GND
9. No connection
10. GND
11. GND on input, pulled high on output (used for auto-termination)
12. SDA (input & output linked)
13. H sync (or composite sync for RGBS)
14. V sync
15. SCL (input & output linked)
14.2
RS232 / D9 socket
1. N/C
2. TX (Transmit data)
3. RX (Receive data)
4. N/C
5. GND (Signal return)
6. N/C
7. CTS (Clear to send)
8. RTS (Request to send)
9. N/C
14.3
4 Pin mini-DIN S-video connector (YC) input
1. Y (Luminance)
2. GND
3. GND
4. C (Chrominance)
1
5
11
15
6
10
