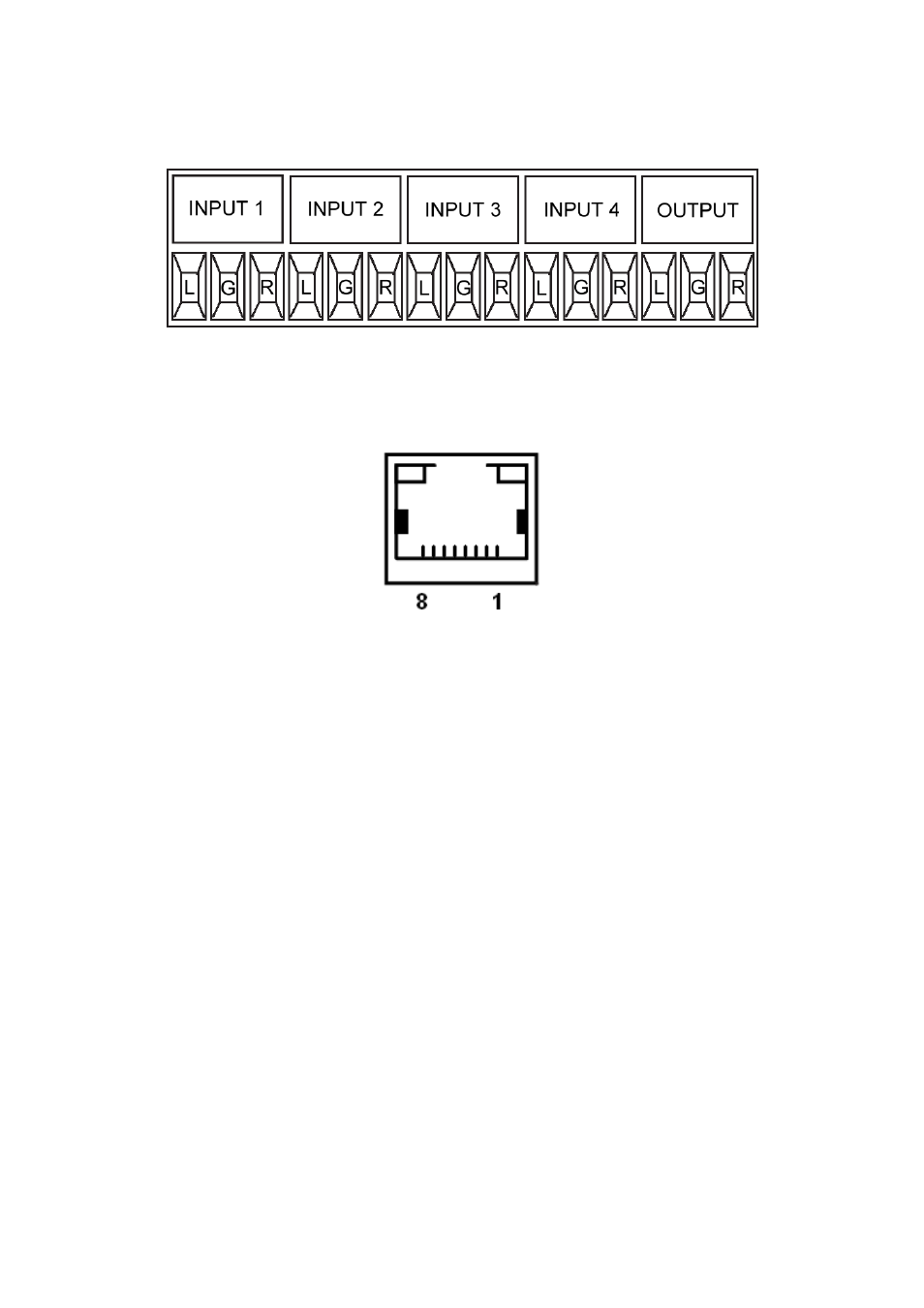

14.4 Multi-way audio connector
L = Left signal
G = Signal ground (shared with left and right)
R = Right signal
14.5 UTP output
1. Red+
2. Red-
3. N/C
4. Green+
5. Green-
6. N/C
7. Blue+
8. Blue-
