MDE-4340A Series 9800Q Pumps and Dispensers Installation/Operation Manual · January 2006 Page 5-15
Wiring

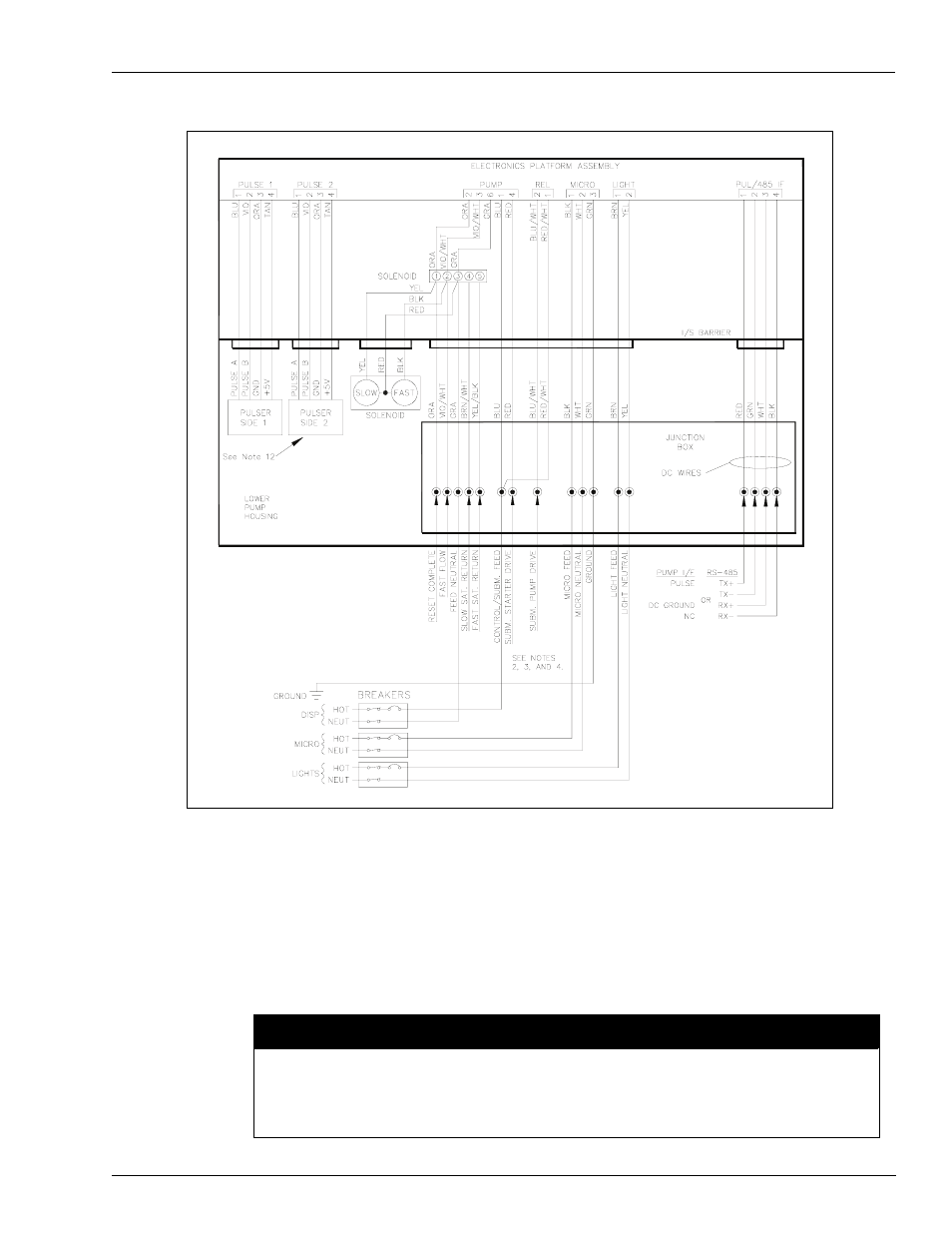

024255 Wiring Diagram Models 9852QXTW1, 9852QXTW2, 9853QXTW1,
9853QXTW2
Notes:
1 All wiring and conduit runs must conform with all building/fire codes, all Federal, State, and
Local codes, National Electrical Code, (NFPA 70), NFPA 30, and Automotive and Marine
Service Station Code (NFPA 30A) codes and regulations. Canadian users must also comply
with the Canadian Electrical Code.
2 The input line CONTROL/SUBM FEED is comprised of two wires which are tied together at
the factory.
CAUTION CAUTION
To avoid damage to the CPU PC board, all unused wires must be individually capped, and
before applying power, you must verify that the RESET COMPLETE, FAST FLOW,
SUBM. STARTER DRIVE, SLOW and FAST SATELLITE RETURN wires are not
shorted to conduit or chassis.
