MDE-4340A Series 9800Q Pumps and Dispensers Installation/Operation Manual · January 2006 Page 6-7
Pump/Remote Dispenser Operation
On the status display, the leftmost digits (842) are error indicators which are blank when the
corresponding error condition is not active. When any of these digits are displayed, their
meanings are: 8=temperature probe fault is detected; 4=pulser error occurred; 2=exceptional
reset was detected.
Setting the DIP Switches
# Use Setting
1 Product 1 ON=Diesel; OFF=Gasoline
2 Product 2 ON=Diesel; OFF=Gasoline
3 Not Used
4 Not Used
5 Pulser Multiplier ON=9850; OFF=9852/9853
6 # of Probes ON=2, OFF=1
7 Pulser Adder ON=9840
8 ATC ON=ATC on; OFF=ATC off

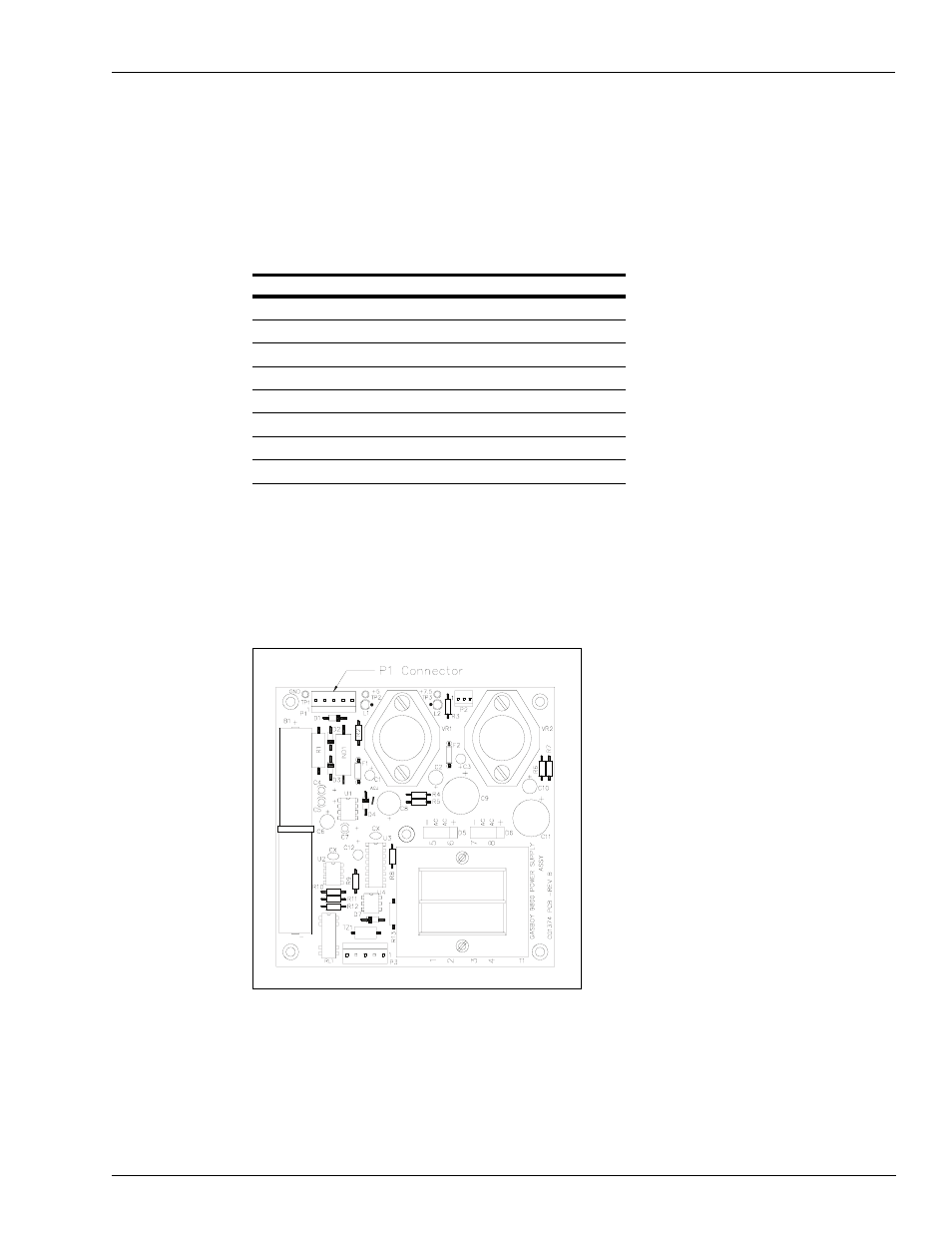

Battery Back-Up Power Supply
9800Q models can be equipped with an optional battery back-up power supply. This allows
the last transaction data to be displayed for a minimum of 15 minutes. After the batteries reach
a certain low-voltage point, the power will automatically shut off. If you need to shut off the
battery power before the low-voltage point is reached, momentarily disconnect, then
re-connect, the cable that plugs into P1 on the power supply.
