Pump/Remote Dispenser Operation
Page 6-2 MDE-4340A Series 9800Q Pumps and Dispensers Installation/Operation Manual · January 2006
3

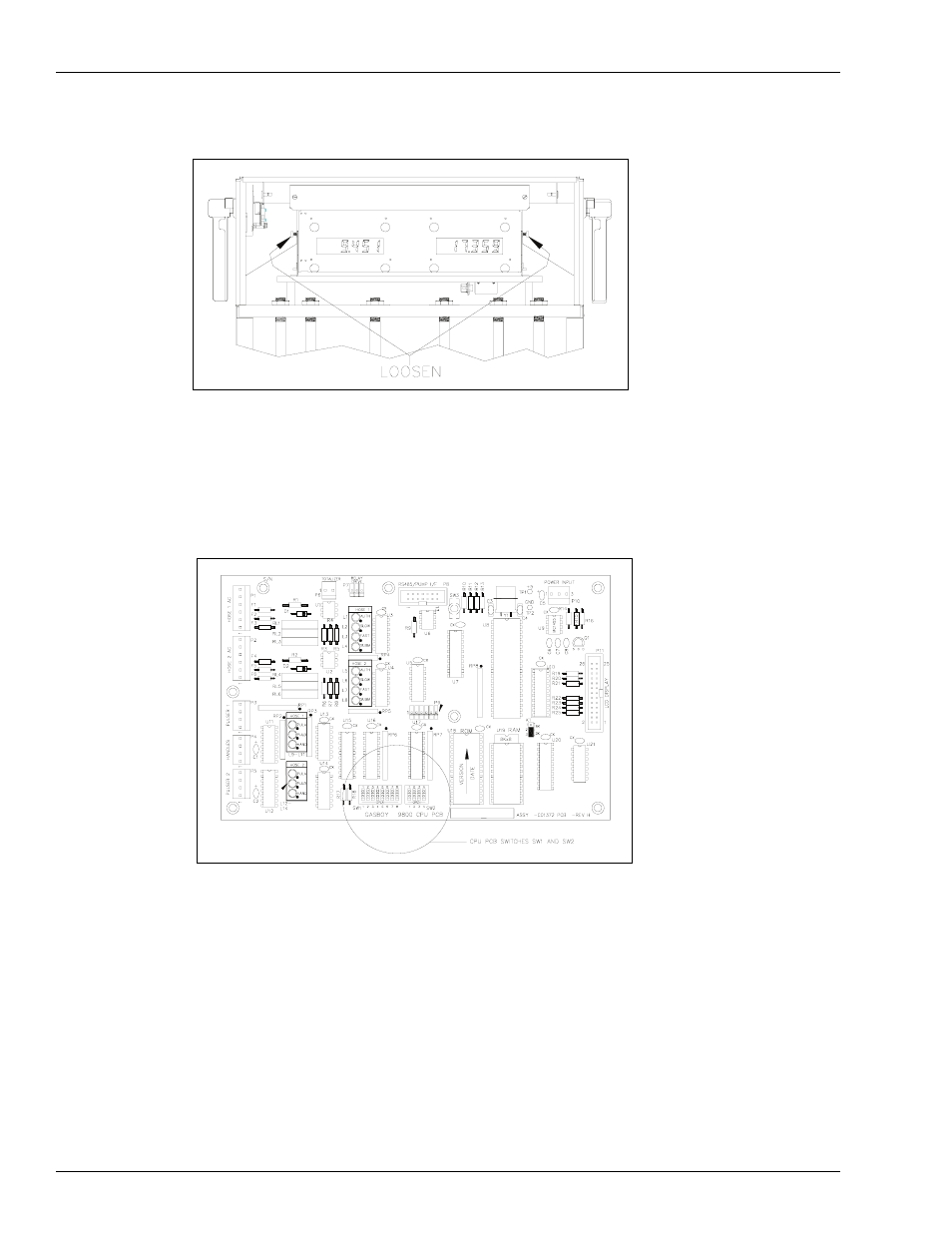

Loosen the two screws located on the left and right door support brackets and pivot display
panel.
CPU Switch Settings
The 9800Q can be configured for various operating conditions using the switches located on
the CPU PCB. Check these switches and change their settings if necessary. Switch settings
should be changed with the power OFF. The new settings are read by the CPU PCB when the
power is turned ON again.
