Greenheck Waterwash (458292) - Manual (Page 15)

15 April 2005
®
PANEL
END ENCLOSURE
HOOD TOP
PANEL
FRONT ENCLOSURE
BY OTHERS
FASTENERS TO WALL
HOLE
3/8 IN. DIA.
5/16 IN. BOLTS WITH
NUTS AND WASHERS
CLAMP

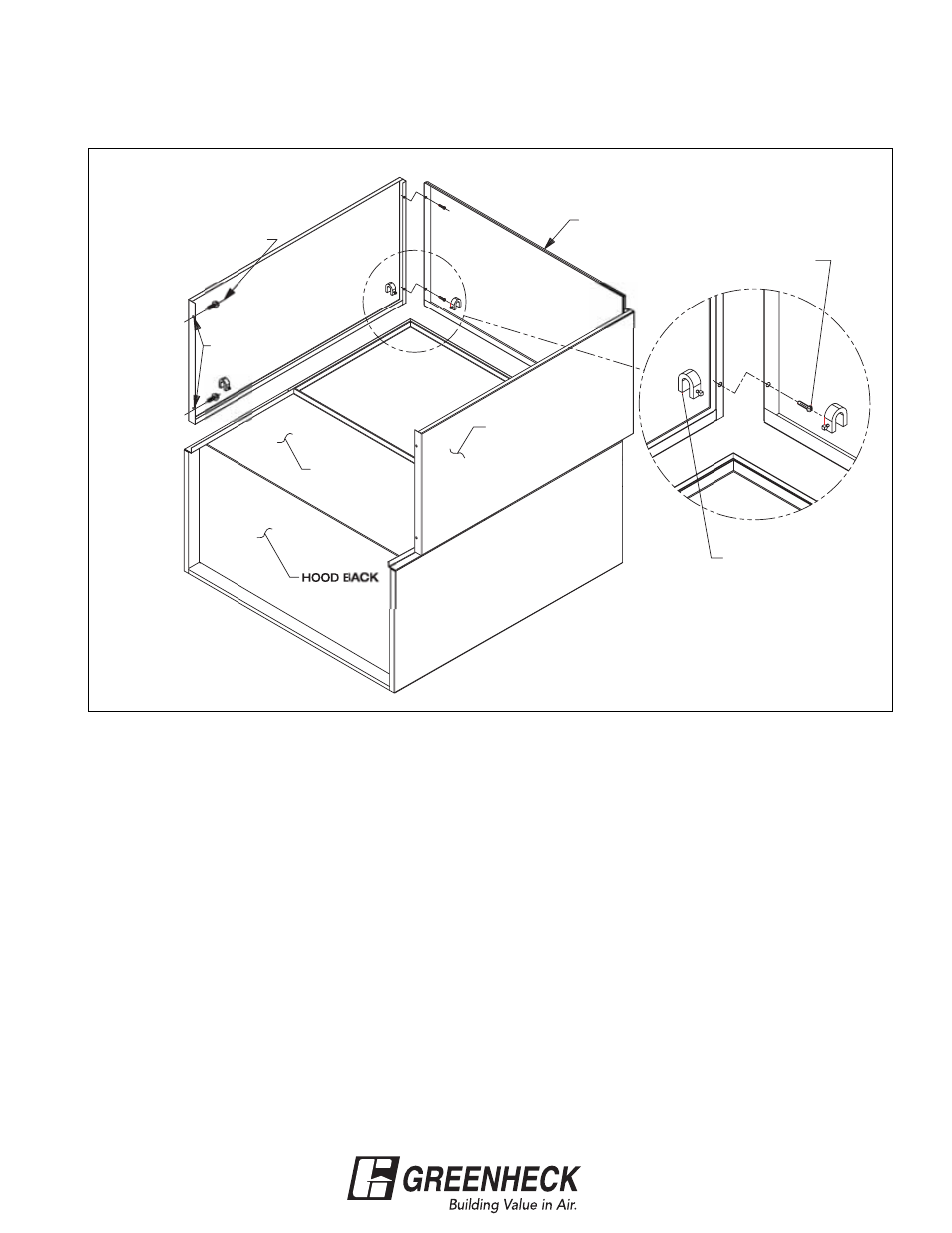

ENCLOSURE PANEL INSTALLATION INSTRUCTIONS
Before installing the enclosure panels, make sure the hood is hung in position with all the ductwork attached
and electrical connections completed.
Fig. 16
1. Position the end enclosure panels on the hood, and clamp into place with clamps provided or tack weld the
panels into place (see Fig 16).
2. Fasten the end enclosure panels to the wall, method depends on wall construction. (fasteners are not
provided)
If the hood is a double island, bolt the end enclosure panels together. (fasteners are not provided)
3. Position the front enclosure panel(s) on the hood, and bolt to the end enclosure panels with the 5/16 in.
bolts provided in the hardware package.
4. Tack weld or clamp the front enclosure panel(s) to the hood. If clamps are used, they must be positioned
4 inches from the ends, and in the center of the front enclosure panel.
5. To allow for ease of cleaning, caulk the external seams with NSF Approved silicone caulk (GE SCS-1009, or
its equivalent). The caulk is not provided.
6. Installation instructions may not be applicable for concrete ceilings.
Return to Page 9.
