4 Top and rear panel
⑧ ⑨
① ② ③ ④ ⑤ ⑥ ⑦

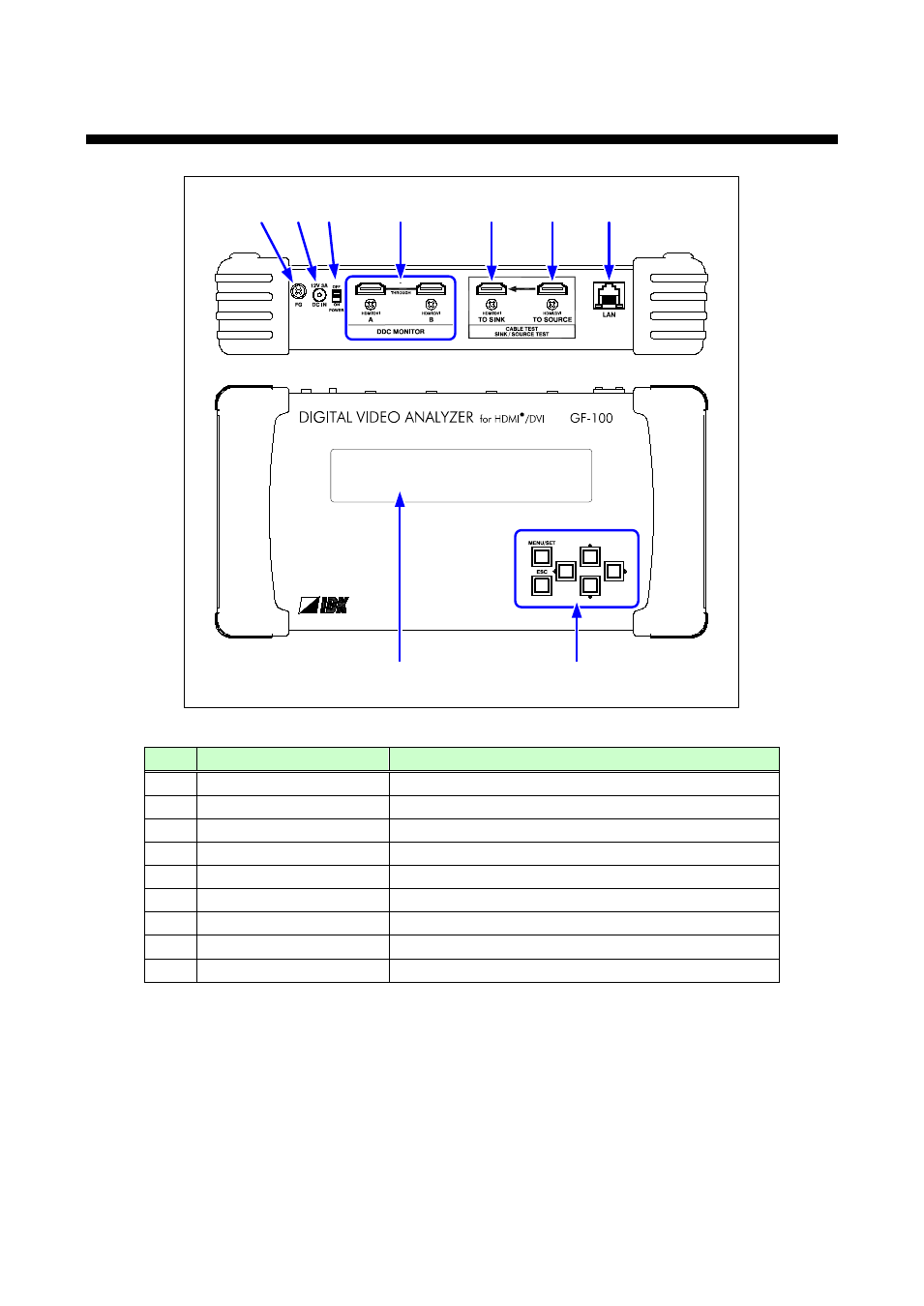

[Fig. 4.1] Drawing
# Part name Description
① Frame ground For indoor ground terminal. An M4 screw is used.
② Power supply connector For provided AC adapter.
③ Main power switch Turns on/off the GF-100.
④ DDC monitor connector For DDC monitor.
⑤ Sink test connector For sink test and cable/transmission path test.
⑥ Source test connector For source test and cable/transmission path test.
⑦ LAN port For browser.
⑧ LCD display Displays menus, setting, and statuses.
⑨ Menu operation keys For menu operation.
