GF-100 User’s Guide
36
7.2.3 HDCP (copyright protection) supported/not supported
If the sink device does not support HDCP (copyright protection), “HDCP:NG” is displayed while “HDCP:OK” is
displayed for device that supports HDCP. Sink devices that do not support HDCP cannot display or output
audio video and audio having HDCP.
T O P > S I N K S T A T E [ 1 / 4 ] S U M M A R Y 1
I D K 0 0 1 H
D V I & H D M I , H D C P : N G , N O T R E P E A T E R
R 4 4 4 / Y 4 2 2 / Y 4 4 4 , 8 / 1 0 / 1 2 b i t
T O P > S I N K S T A T E [ 1 / 4 ] S U M M A R Y 1
I D K 0 0 1 H
D V I & H D M I , H D C P : O K , N O T R E P E A T E R
R 4 4 4 / Y 4 2 2 / Y 4 4 4 , 8 / 1 0 / 1 2 b i t
HDCP
HDCP

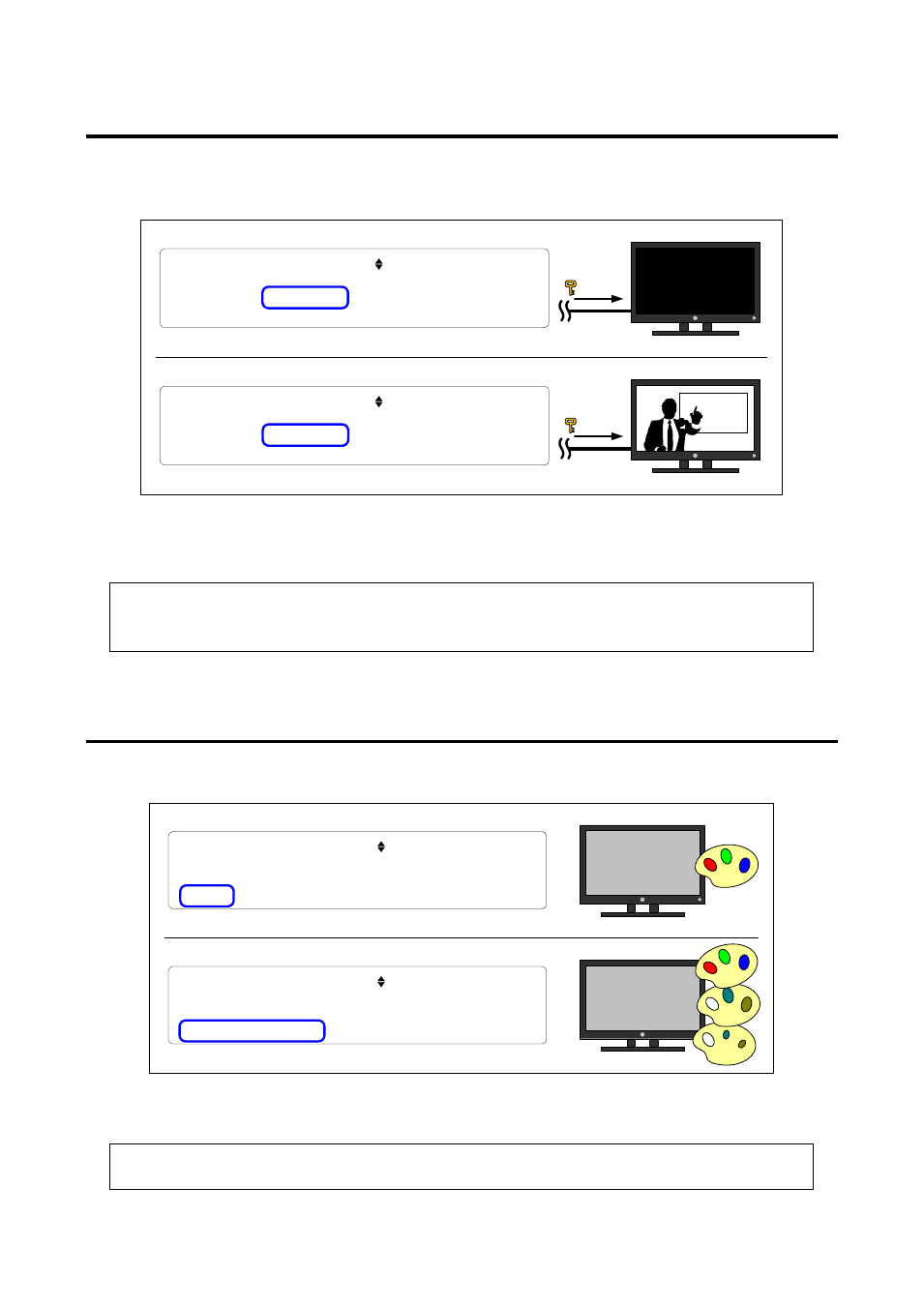

[Fig. 7.2] HDCP supported/not supported
<Recommended actions for when the image cannot be displayed on the sink device>
● Check the power supply, input switching (if there are some inputs), and operation using test
patterns (P.39) of the sink device.
● Check the presence or absence of output signals (P.21) and HDCP (P.23) of the source device.
7.2.4 Supported color space
RGB4:4:4: “R444”, YCbCr4:2:2: “Y422”, YCbCr4:4:4: “Y444”
Y CbCr
Y
Cb
Cr
T O P > S I N K S T A T E [ 1 / 4 ] S U M M A R Y 1
I D K 0 0 1 H
D V I & H D M I , H D C P : O K , N O T R E P E A T E R
R 4 4 4 , 8 / 1 0 / 1 2 b i t
T O P > S I N K S T A T E [ 1 / 4 ] S U M M A R Y 1
I D K 0 0 1 H
D V I & H D M I , H D C P : O K , N O T R E P E A T E R
R 4 4 4 / Y 4 2 2 / Y 4 4 4 , 8 / 1 0 / 1 2 b i t
R
G
B
R
G B
4
4
4
4
2
2
[Fig. 7.3] Supported color space
<Recommended actions for when the image is not display with correct colors>
Sink device: Check the operation using test patterns (P.39)
Source device: Change the color space of the output signals (P.23)
