6.2.3 HDMI/DVI (with/without audio)
If the source signals have audio, “HDMI” is displayed while “DVI” is displayed for signals that do not have
audio.
T O P > S O U R C E S T A T E [ 1 / 9 ] S U M M A R Y
1 9 2 0 x 1 0 8 0 p , 5 9 . 9 4 H z , 1 6 : 9
D V I , H D C P , R G B , 8 b i t C O L O R , D D C = 5 . 0 0 V
T O P > S O U R C E S T A T E [ 1 / 9 ] S U M M A R Y
1 9 2 0 x 1 0 8 0 p , 5 9 . 9 4 H z , 1 6 : 9 , V I C = 1 6
H D M I , H D C P , R G B , 8 b i t C O L O R , D D C = 5 . 0 0 V
P C M , 2 C H , 4 8 k H z , 2 4 b i t , N O T H I - B I T
♪
....
DVI
(without
audio)
HDMI
(with
audio)

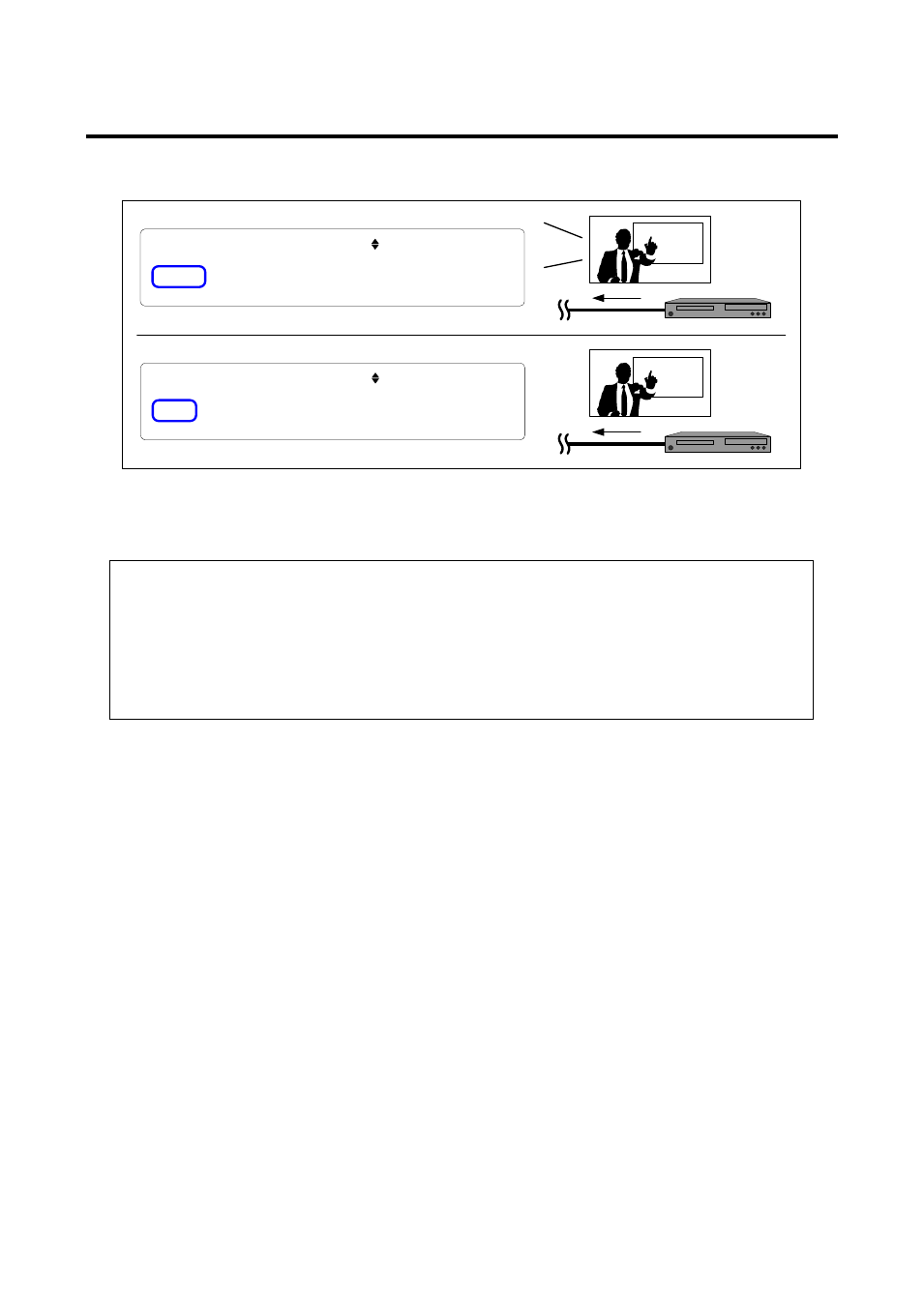

[Fig. 6.6] HDMI/DVI
<Recommended actions>
● When the image cannot be displayed on the sink device;
Check the power supply, input switching (if there are some inputs), and operation using test
patterns (P.39) of the sink device.
● When the audio is not output from the sink device (HDMI supported);
Check the volume, mute, presence or absence of headphone, audio input setting
(analog/digital), audio source (such as silent scene and pause), and operation using test tones
(P.39).
