18
Appendix Tips Settings Playback Connections Contents
Front panel Display Rear panel Index Remote
FRONT
SUBWOOFER
SURROUND SURROUND BACK CENTER 1 CBL/SAT 2 DVD 3 Blu-ray 4 MEDIA PLAYER 5 CD PHONO
AM
FM
COAXIAL OPTICAL
CBL/SAT 1 DVD 2 1 TV AUDIO
2
CD
1 CBL/SAT 2 DVD 3 Blu-ray 4 GAME 5 MEDIA PLAYER 6 AUX2
STRAIGHT CABLE DC12V 150mA MAX. IN
MONITOR
PR/ CR PR/CR PB/ CB PB/CB Y Y
1 CBL/SAT
3 Blu-ray
1 CBL/SAT
MONITOR
2 DVD 2 DVD
IN
OUT
NETWORK
RS-232C DC OUT FLASHER
COMPONENT VIDEO OUT
AUDIO IN 7.1CH IN PRE OUT
M-XPort
ANTENNA
(ASSIGNABLE) DIGITAL AUDIO IN (ASSIGNABLE) (ASSIGNABLE)
AUDIO IN (ASSIGNABLE)
COMPONENT VIDEO IN VIDEO OUT
SURROUND SURROUND FRONT FRONT CENTER SURROUND BACK SURROUND BACK FRONT HEIGHT/WIDE FRONT HEIGHT/WIDE
SIGNAL GND
VIDEO IN REMOTE CONTROL
ZONE2 MONITOR
ARC
SURROUND SURROUND BACK FRONT CENTER ZONE2
1 2 SUBWOOFER
SPEAKERS IMPEDANCE : 6～8Ω CLASS 2 WIRING
ASSIGNABLE
HDMI IN (ASSIGNABLE) HDMI OUT
AC IN
(75Ω) SURROUND SURROUND FRONT FRONT CENTER SURROUND BACK SURROUND BACK FRONT HEIGHT/WIDE FRONT HEIGHT/WIDE

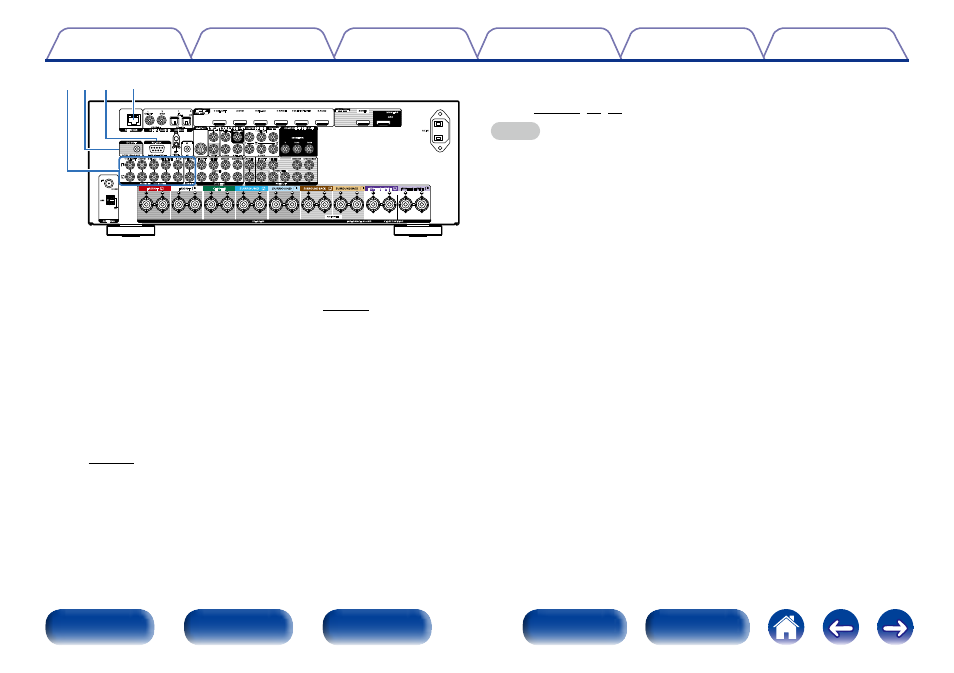

Q5 Q4 Q6 Q7
Q4 Network connector (NETWORK)
Used to connect this unit to the network (vpage 46).
Q5 RS-232C connector
The RS-232C serial port is provided to allow compatibility with an
external home automation controller. Consult the owner’s manual
of the home automation controller for more information about serial
control of this unit. The serial port allows two-way control and status
via an external home automation controller.
Q6 DC OUT jack
Used to connect devices equipped with the trigger function
(vpage 50).
Q7 Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors
(vpage 37, 38, 40).
NOTE
• Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
