23
Appendix Tips Settings Playback Contents
Front panel Display Rear panel Index Remote
Connections
%
• This unit is compatible with Audyssey DSX® (vpage 224), Dolby Pro Logic gz
(vpage 226) and DTS Neo:X (vpage 227) which offers an even wider and
deeper surround sensation.
When using Audyssey DSX®, install front wide speakers or front height speakers.
When using Dolby Pro Logic gz, install front height speakers.

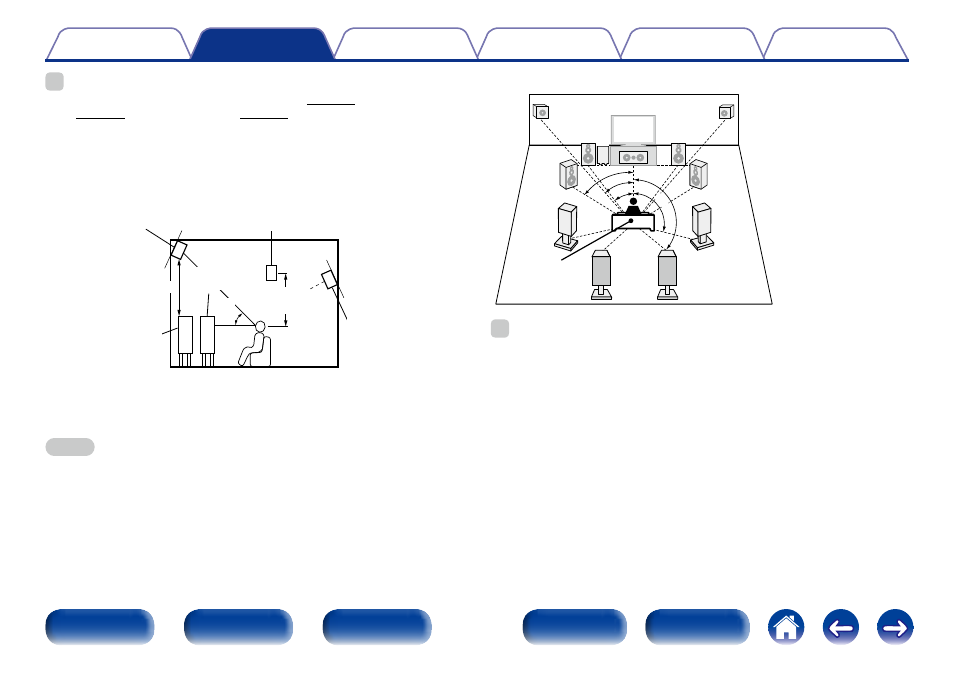

• Use the illustration below as a guide for how high each speaker should be installed.
The height does not need to be exactly the same.
z 1
z 2
45˚
Surround
speaker
2 – 3 ft/
60 – 90 cm
GViewed from the sideH
Front height
speaker
• Point slightly
downwards
At least
3.3 ft/1 m
Surround back
speaker
• Point slightly
downwards
Front
speaker
Front wide
speaker
z1 Recommended for Dolby Pro Logic gz
z2 Recommended for Audyssey DSX®
NOTE
• You cannot have audio output from the surround back speakers, front height
speakers and front wide speakers simultaneously.
2 Typical speaker layout
FHR FHL
FL FR
SL SR
FWL FWR
SW
C
SBL SBR
z1
z2
z3
z5
z4
Listening
position
z1 22˚ – 30˚
z2 22˚ – 45˚
z3 55˚ – 60˚
z4 90˚ – 110˚
z5 135˚ – 150˚
%
• When using a single surround back speaker, place it directly behind the listening
position.
• You can change the settings to use either the Front height speakers or Front wide
speakers only.
GSpeaker abbreviationsH
FL Front speaker (L) SBL Surround back speaker (L)
FR Front speaker (R) SBR Surround back speaker (R)
C Center speaker FHL Front height speaker (L)
SW Subwoofer FHR Front height speaker (R)
SL Surround speaker (L) FWL Front wide speaker (L)
SR Surround speaker (R) FWR Front wide speaker (R)
