250 Trinix NXT — Installation and Service Manual
Section 4 — Trinix Asymmetrical Power Supply Configurations

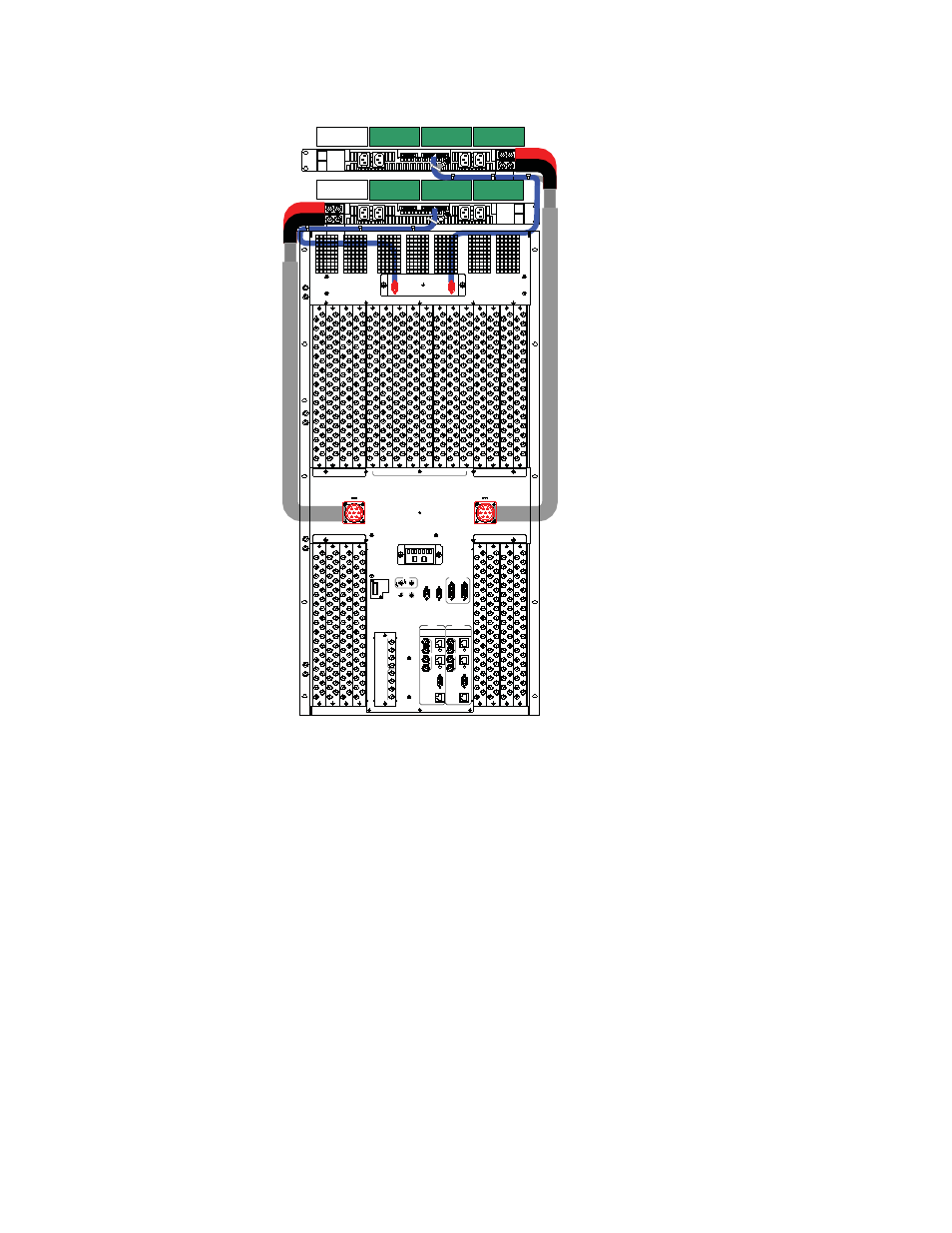

Figure 160. Trinix 256X512 Redundant PSU Configurations, Option D
Option D uses two power supplies with three power supply modules each.
