Trinix NXT — Installation and Service Manual 257
The 512X1024 Trinix Asymmetrical Frame
512X1024 Redundant Power Supply Configurations, Option A
The redundant power supply configuration, option A, include the default
power supply configuration and two additional Trinix power supply
frames with eight additional power supply modules. The additional power
supply racks are connected to the DC INPUT B connectors of the router
frame. The additional power supply’s interface cables are connected to the
PMBUS B connectors of the router frame (
Figure 166 ).

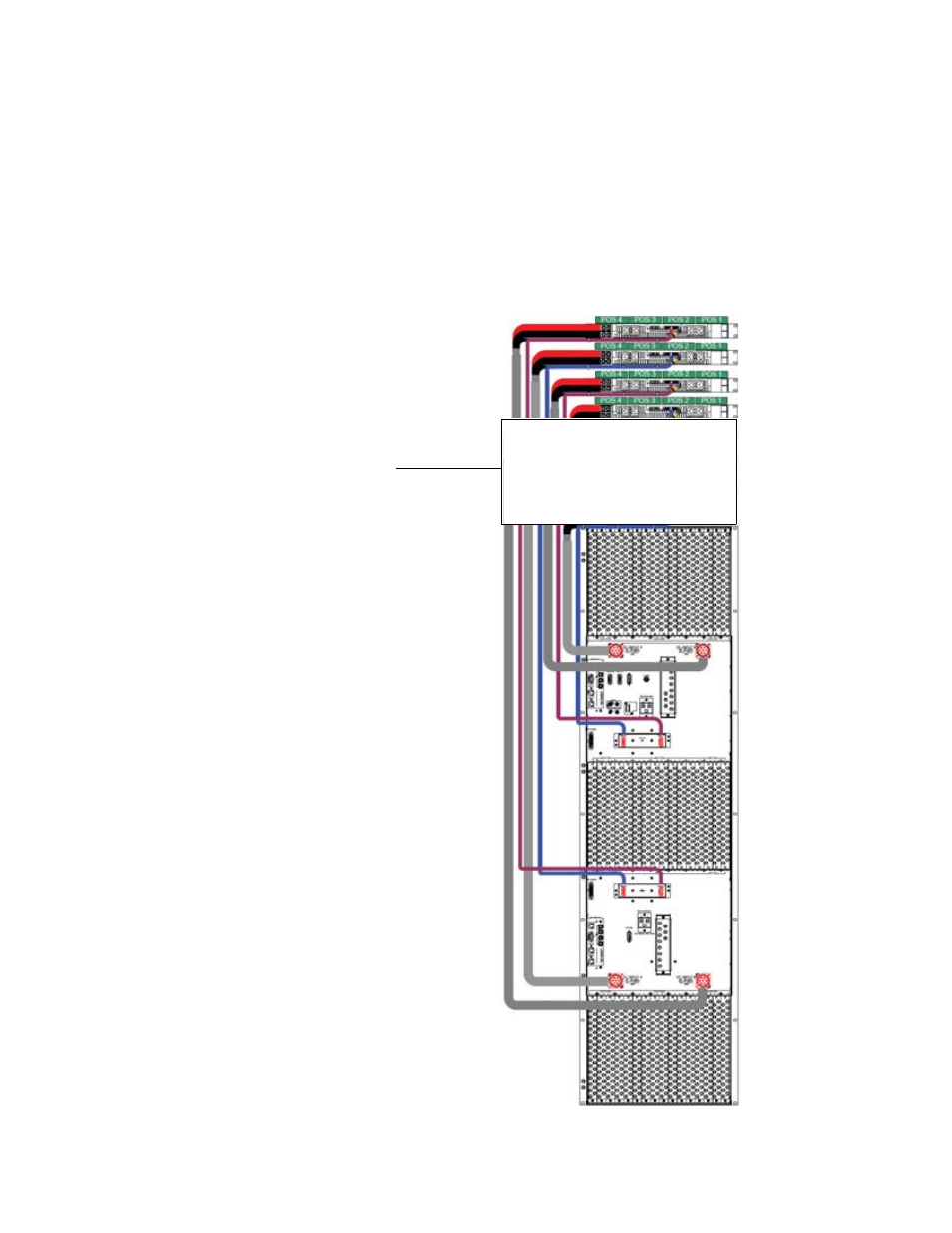

Figure 166. Trinix 512X1024 Redundant PSU Configuration, Options A
071827612_Trinix 512X1024 Redundant PSU configuration, Options A
3 RU space
2RU RU Empty Space
1 RU Fan
