User’s Manual of WGSD-10020 Series
4.8.13 MLD Snooping Status
This Page provides MLD Snooping status. The IGMP Snooping Status screen in Figure 4-8-16 appears.

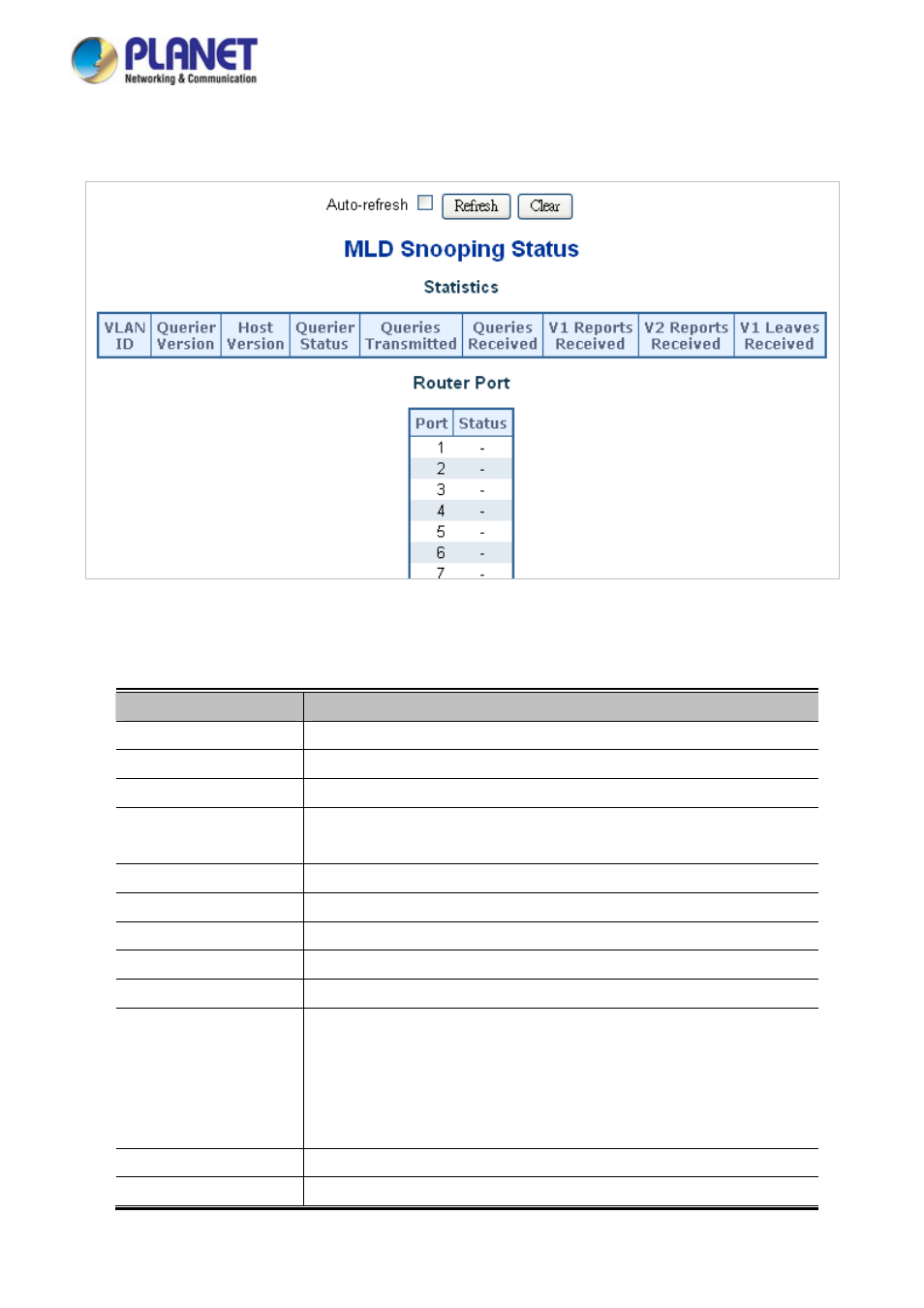

Figure 4-8-16: MLD Snooping Status Page Screenshot
The Page includes the following fields:
Object Description

VLAN ID The VLAN ID of the entry.

Querier Version Working Querier Version currently.

Host Version
Working Host Version currently.

Querier Status Shows whether the Querier status is "ACTIVE" or "IDLE".
"DISABLE" denotes the specific interface is administratively disabled.

Querier Transmitted The number of Transmitted Queries.
 Querier Received The number of Received Queries.
 V1 Reports Received The number of Received V1 Reports.
 V2 Reports Received The number of Received V2 Reports.
 V1 Leave Received The number of Received V1 Leaves.
 Router Port Display which ports act as router ports. A router port is a port on the Ethernet
switch that leads towards the Layer 3 multicast device or MLD querier.
Static denotes the specific port is configured to be a router port.
Dynamic denotes the specific port is learnt to be a router port.
Both denote the specific port is configured or learnt to be a router port.
 Port Switch port number.
 Status Indicates whether specific port is a router port or not.
