Page 96
96
4.
Select the
Test Pattern
setting and press
Enter
.
5.

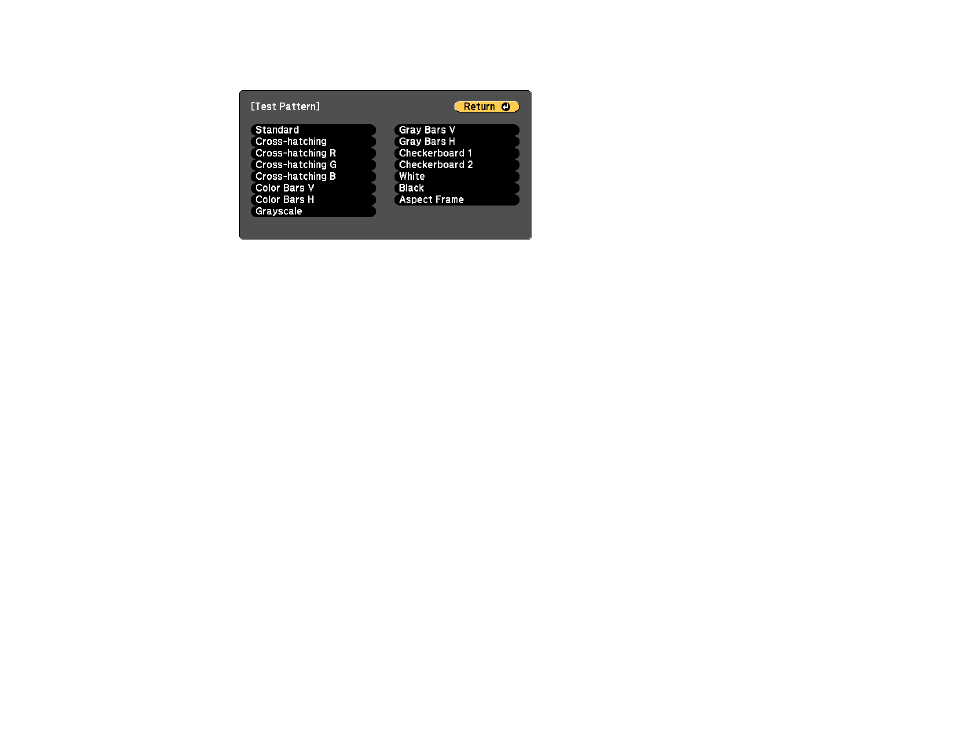

Select the pattern you want to display and press
Enter
.
A test pattern is displayed.
6.
Press the left or right arrow buttons or press
Enter
to cycle through the available test patterns.
7.
Adjust the image as necessary.
8.
Press
Esc
to clear the test pattern.
Parent topic:
Using Basic Projector Features
Image Shape
You can project an evenly rectangular image by placing the projector directly in front of the center of the
screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off
to the side, you may need to correct the image shape for the best display quality.
When you turn on automatic keystone correction in your projector's Settings menu, your projector
automatically corrects vertical keystone effects when you reposition the projector.
Correcting Image Shape with H/V Keystone
Correcting Image Shape with Quick Corner
Parent topic:
