Control Application
Adtec Digital is deploying a web-based command and control (C&C) software application for our products. For the
mediaHUB-HD Pro, devices with software versions 3.01.22 and up will be able to view portions of this software as it is
integrated into each build, and online updates will progressively activate the system's features.
The program is optimized to work with the following browser versions:
Firefox ©: 3.0 (recommended) •
MS Internet Explorer ©: 7.0 and higher •
Safari ©: 3.0 and higher •
Opera ©: 9.0 and higher •
Note for Safari © users:
The C&C program is designed to use the Bonjour Zero Configuration Protocol.
When using Safari ©, click on the " ^^ " symbol to open a networked devices list. ♦
Select the device to point the browser to that device's IPA. ♦
•
Access

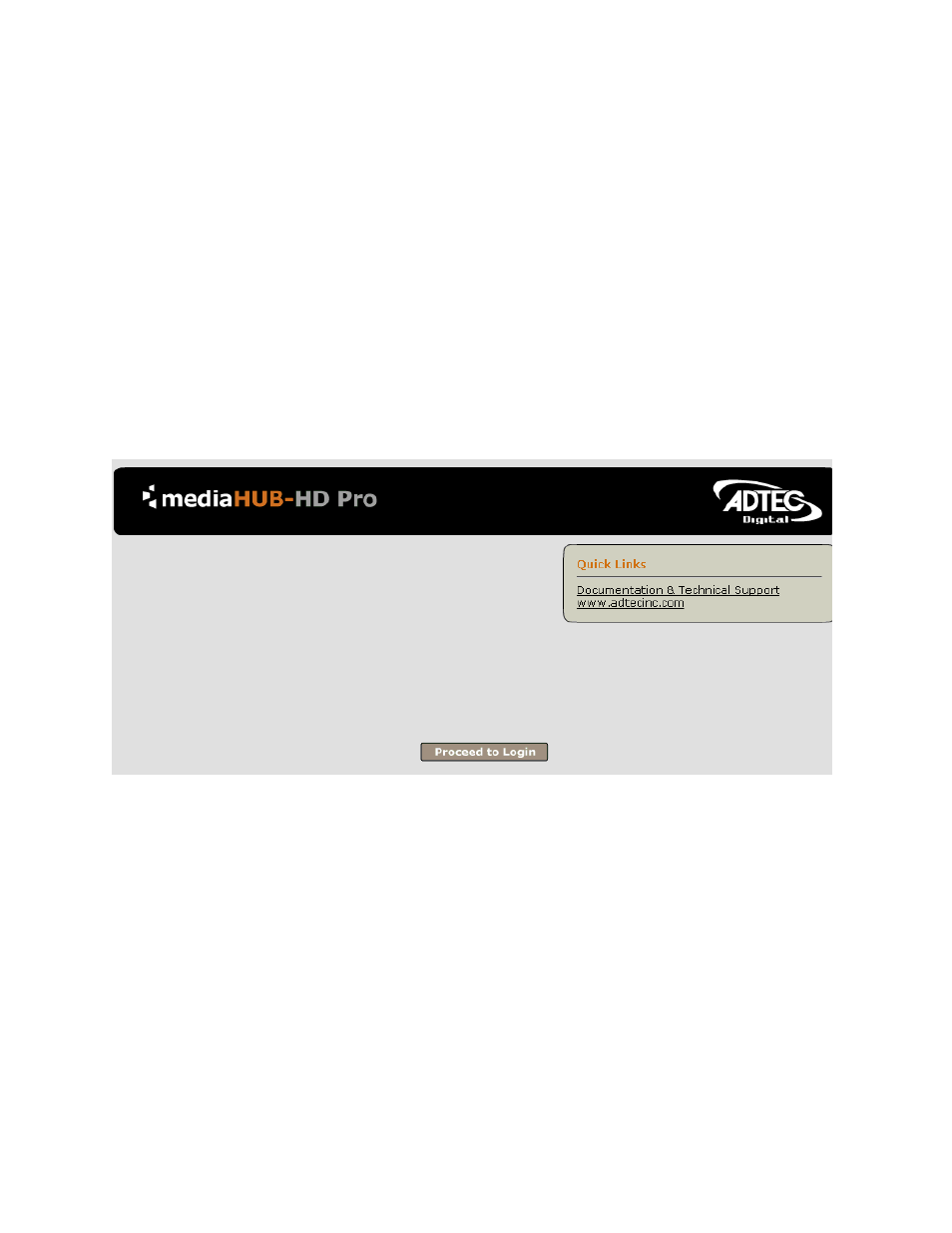

Access the C&C application by pointing your web browser to the unit's IP address. The following screen (image reduced for
clarity) will appear:
Links to the unit's Release Notes and a link to Adtec's Technical Support contact page are also located on this screen.
Login
Log in to the C&C application by clicking the "Proceed to Login" button and typing in the user name 'adtec' and the
password 'none' in the pop-up box that appears.
C&C Screen
Once you are logged in, the C&C Screen will appear (screenshot reduced for clarity):
