GF-100 User’s Guide
17

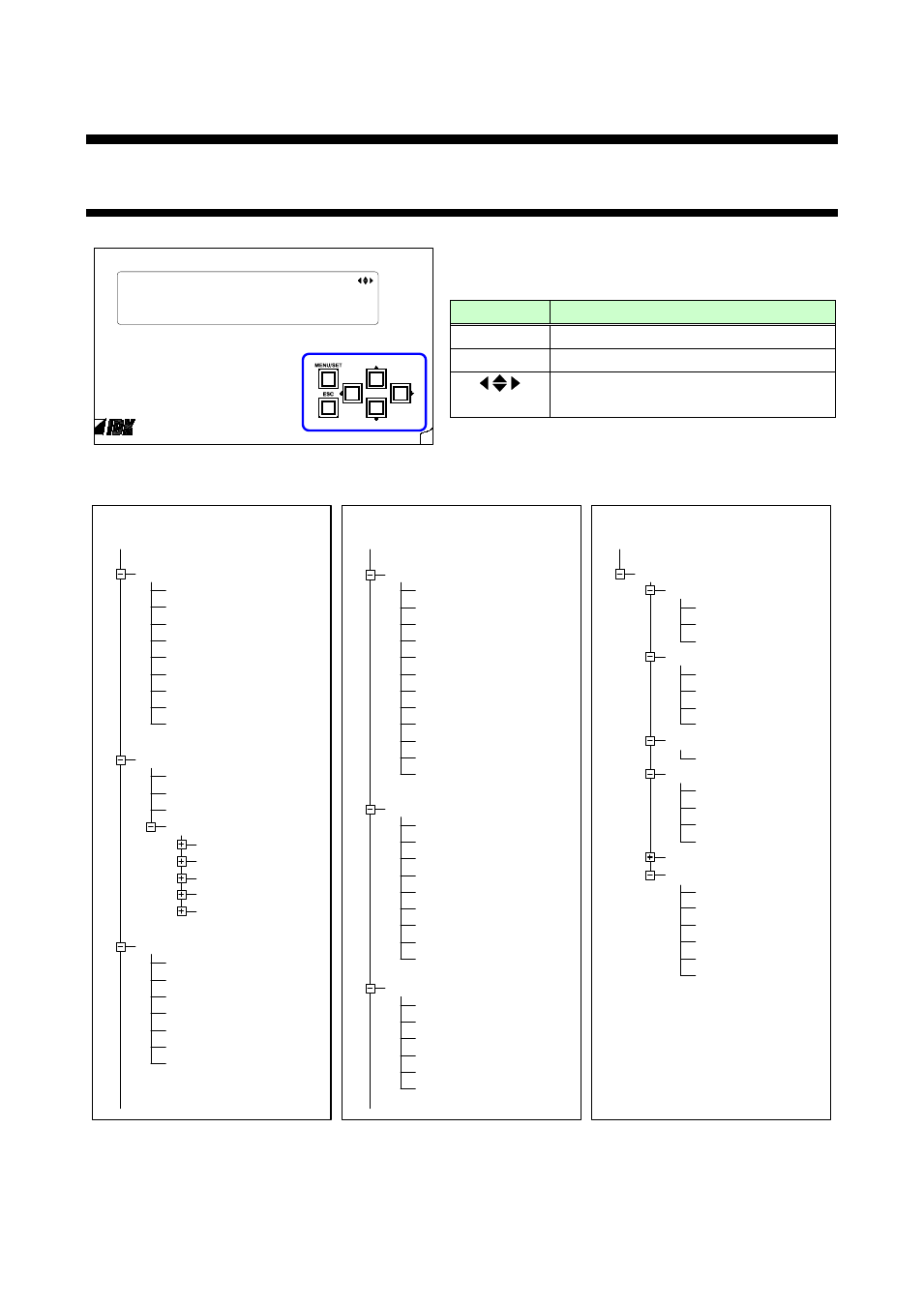

5 Basic operation
5.1 Menu operation
[Table 5.1] Function of menu operation key
Key Function
MENU/SET Enters the menu and applies setting.
ESC Exits from the menu.
Moves cursor/page and changes set
value.
[Fig. 5.1] Menu operation keys
SOURCE STATE
SUMMARY
VIDEO TIMING
VIDEO FREQ.
AUDIO STATE 1
AUDIO STATE 2
AVI INFO
SPD INFO
AUDIO INFO 1
AUDIO INFO 2
TOP
CABLE TEST
RESOL.
AMOUNT
COL.DEPTH
CAPT.WAIT
START
(RESULT)
TEST PATTERN
OUTPUT
CONTENTS
RESOLUTION
HDCP OUT
FORMAT
COLOR DEPTH
TEST TONE
TONE CH
TONE LEVEL
EDID OUT
EDID MODE
EDID CAPTURE
RESOLUTION
COLOR DEPTH
AUDIO CHANNEL
PCM
Dolby Digital
AAC
Dolby Digital+
DTS
DTS-HD
Dolby TrueHD
DDC MONITOR
STATUS
HP/DDC LOG
EDID LOG
HDCP LOG
OTHERS LOG
BUZZER
ESCAPE CODE
SINK STATE
SUMMARY 1
SUMMARY 2 TIMING
SUMMARY 3 SPEAK
SINK EDID
BASIC
EXTENSION #1
EXTENSION #2
EXTENSION #3
EXTENSION #4
SETTINGS
SOURCE LOG
BUZZER
ESCAPE CODE
DETECT WAIT
VIDEO INPUT
SIGNAL REQUEST
RECV OFFSET
HDCP INPUT
BUS RESET TIME
VIDEO OUTPUT
FORCED OUT
LAN
IP ADDRESS
GATEWAY ADDR.
SUBNET MASK
MAC ADDRESS
CLOCK
OTHERS
BACKLIGHT OFF
BUZZER
RESUME
FIRM VER.
BOAD VER.
FPGA VER.
[Fig. 5.2] Menu list
T O P 2 0 1 4 / 0 6 / 0 1 ( S U N ) 0 0 : 0 0
S O U R C E S T A T E | E D I D O U T | S E T T I N G S
S I N K S T A T E | T E S T P A T T E R N |
D D C M O N I T O R | C A B L E T E S T |
【 】
