GF-100 User’s Guide
39

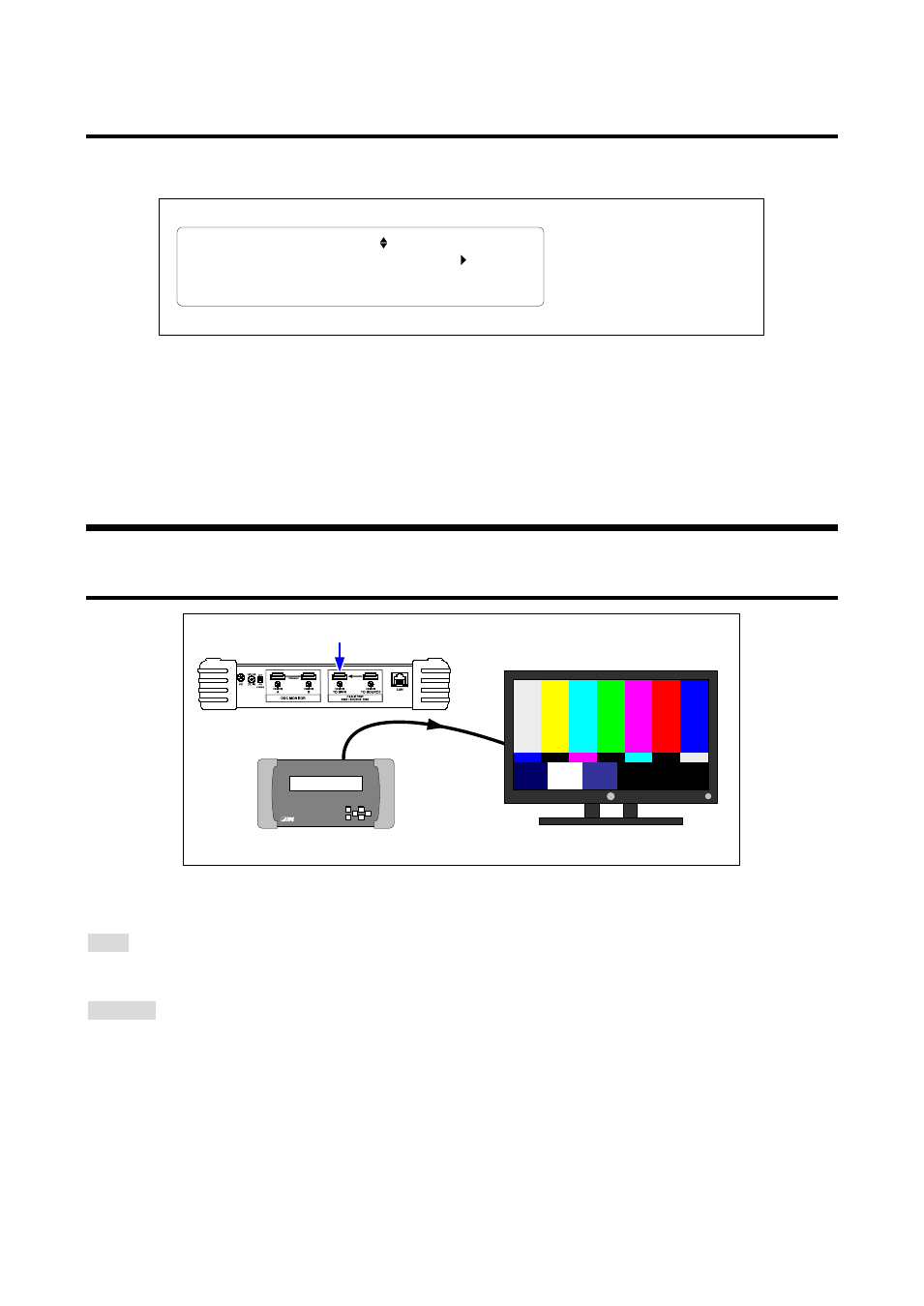

7.2.8 Detailed EDID information
Displaying the detailed EDID information of the sink device, such as manufacturer, supported resolution and
audio format.
T O P > S I N K S T A T E [ 4 / 4 ] S I N K E D I D
E D I D B L O C K = B A S I C ( U S E D )
P U S H " S E T " T O E N T E R
Detailed EDID information
・Manufacturer
・Supported resolution
・Supported audio format
etc.
[Fig. 7.7] Detailed EDID information
<Reference>
E-EDID: VESA Enhanced Extended Display Identification Data Standard Release A, Revision 2
CEA-861: CEA Standard A DTV Profile for Uncompressed High Speed Digital Interfaces
7.3 Test pattern/tone
7.3.1 Outputting test pattern/tone
GF-100 Sink device
Sink test connector
[Fig. 7.8] Outputting test pattern
Menu
TOP → TEST PATTERN → OUTPUT
Set value
OFF: Outputting the signals of the source test connector to the sink test connector
ON: Outputting test pattern/tone [Default]
