GF-100 User’s Guide
40
7.3.2 Selecting test pattern
Menu
TOP → TEST PATTERN → CONTENTS
Set value
[Default: SMPTE COLOR BAR]
75% COLOR BAR EIA COLOR BAR SMPTE COLOR BAR
H GRAY SCALE 10 STEP
H GRAY SCALE
5x5 CROSS HATCH 20x20 CROSS HATCH
VERTICAL STRIPES HORIZONTAL STRIPES
7x7 CROSS HATCH 4x4 CROSS HATCH
V GRAY SCALE 10 STEP V GRAY SCALE
6x6 CROSS HATCH
100% WHITE RASTER 75% GRAY RASTER 50% GRAY RASTER
25% GRAY RASTER BLACK RASTER RED RASTER GREEN RASTER BLUE RASTER
V GRAY SCALE 32 STEP H GRAY SCALE 32 STEP
MULTI SET 10x10 MULTI SET 12x12 MULTI SET 14x14 MULTI SET 20x20 MULTI SET 8x8

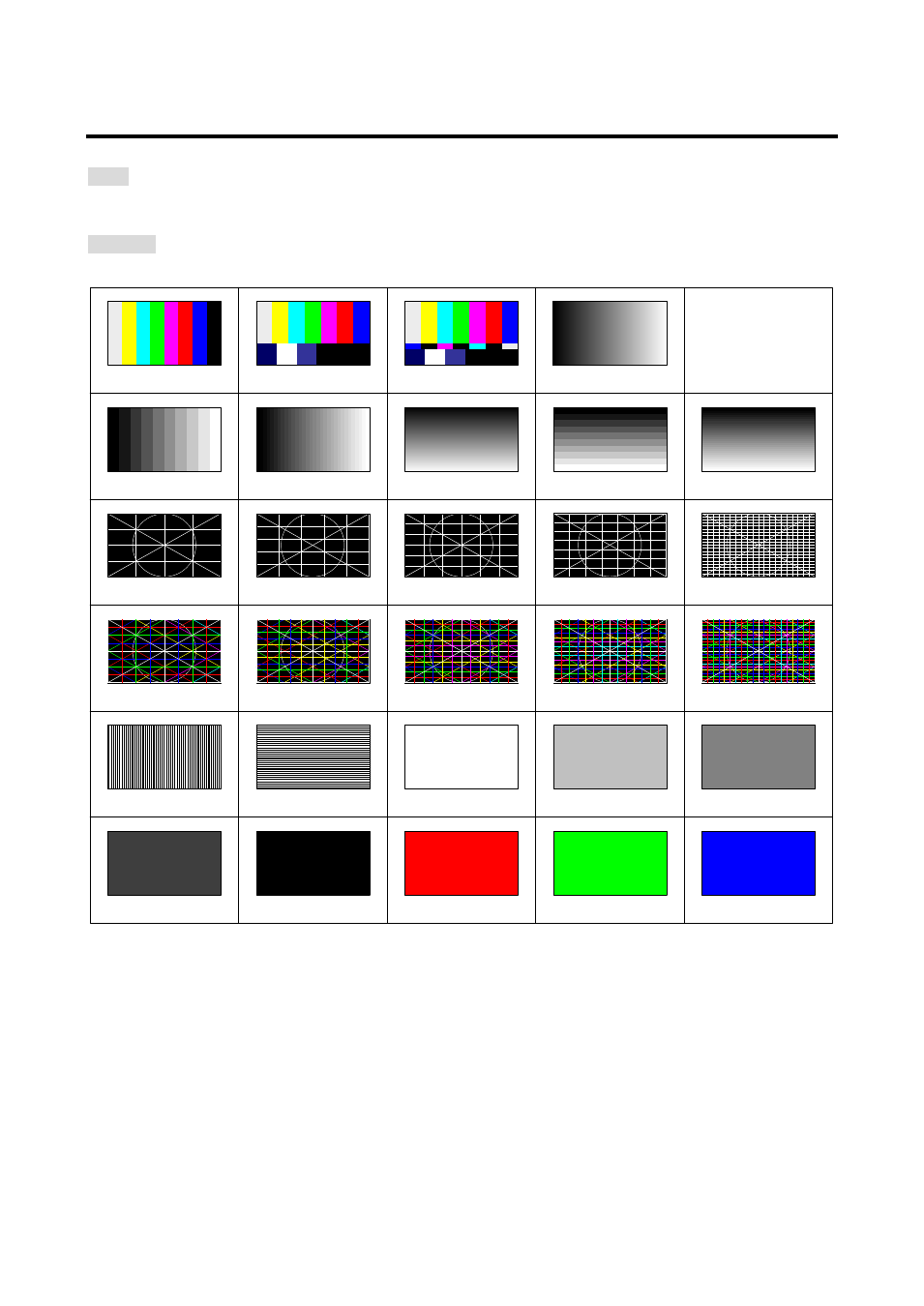

[Fig. 7.9] Test patterns
