7.2.5 Supported color depth (Deep Color)
12 bit (36 bit/pixel): “12bit” 10 bit (30 bit/pixel): “10bit” 8 bit (24 bit/pixel): “8bit”
T O P > S I N K S T A T E [ 1 / 4 ] S U M M A R Y 1
I D K 0 0 1 H
D V I & H D M I , H D C P : O K , N O T R E P E A T E R
R 4 4 4 / Y 4 2 2 / Y 4 4 4 , 8 b i t
T O P > S I N K S T A T E [ 1 / 4 ] S U M M A R Y 1
I D K 0 0 1 H
D V I & H D M I , H D C P : O K , N O T R E P E A T E R
R 4 4 4 / Y 4 2 2 / Y 4 4 4 , 8 / 1 0 / 1 2 b i t
12bit
12bit

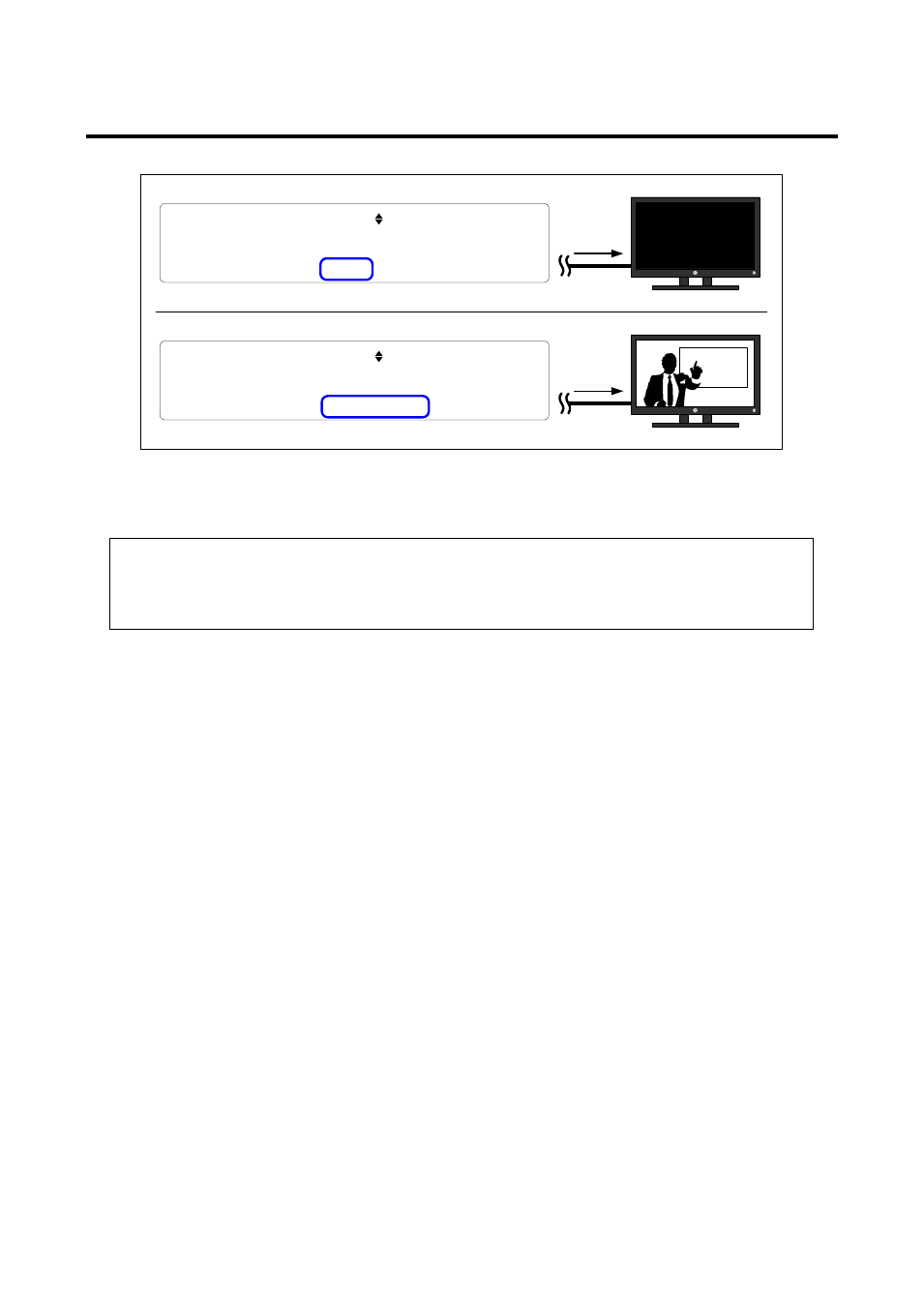

[Fig. 7.4] Supported color depth
<Recommended actions for when the image cannot be displayed on the sink device>
● Sink device: Check the power supply, input switching (if there are some inputs), and operation
using test patterns (P.39).
● Source device: Check the presence or absence of output signals (P.21) and color depth of output
signals (P.24).
