GF-100 User’s Guide
23
6.2.4 With/without HDCP (copyright protection)
If the source signals include HDCP, “HDCP” is displayed while “NO HDCP” is displayed for signals that do not
have HDCP.
T O P > S O U R C E S T A T E [ 1 / 9 ] S U M M A R Y
1 9 2 0 x 1 0 8 0 p , 5 9 . 9 4 H z , 1 6 : 9 , V I C = 1 6
H D M I , N O H D C P , R G B , 8 b i t
C O L O R , D D C = 5 . 0 0 V
P C M , 2 C H , 4 8 k H z , 2 4 b i t , N O T H I - B I T
T O P > S O U R C E S T A T E [ 1 / 9 ] S U M M A R Y
1 9 2 0 x 1 0 8 0 p , 5 9 . 9 4 H z , 1 6 : 9 , V I C = 1 6
H D M I , H D C P , R G B , 8 b i t C O L O R , D D C = 5 . 0 0 V
P C M , 2 C H , 4 8 k H z , 2 4 b i t , N O T H I - B I T
Without HDCP
With HDCP
(Encryption)

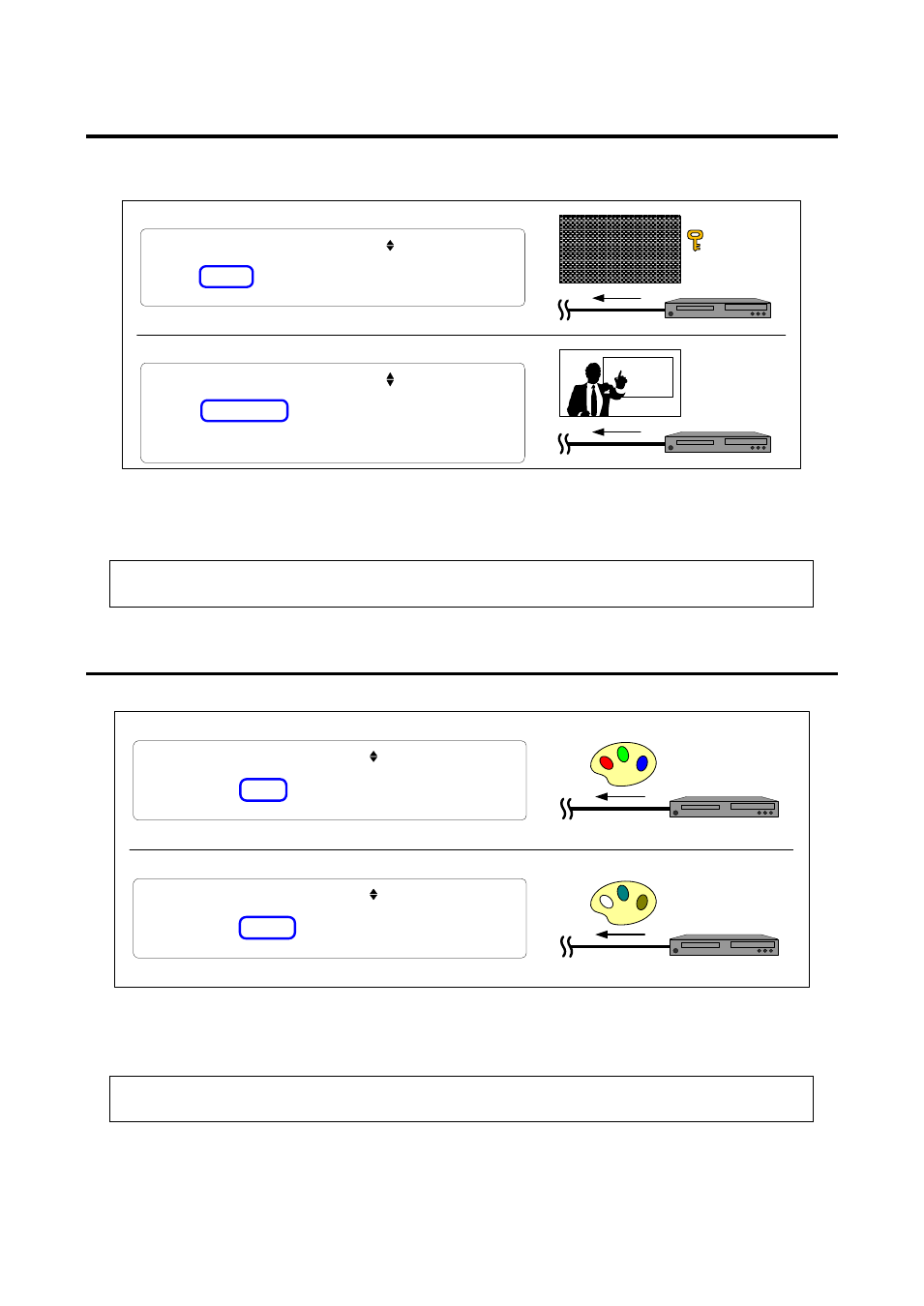

[Fig. 6.7] HDCP
<Recommended actions for when the image cannot be displayed on the sink device>
Check the power supply, input switching (if there are some inputs), HDCP supported/not supported,
and operation using test patterns (P.39) of the sink device.
6.2.5 Color space
RGB4:4:4: “RGB”, YCbCr4:2:2: “Y422”, YCbCr4:4:4: “Y444”
T O P > S O U R C E S T A T E [ 1 / 9 ] S U M M A R Y
1 9 2 0 x 1 0 8 0 p , 5 9 . 9 4 H z , 1 6 : 9 , V I C = 1 6
H D M I , H D C P , Y 4 4 4 , 8 b i t C O L O R , D D C = 5 . 0 0 V
P C M , 2 C H , 4 8 k H z , 2 4 b i t , N O T H I - B I T
T O P > S O U R C E S T A T E [ 1 / 9 ] S U M M A R Y
1 9 2 0 x 1 0 8 0 p , 5 9 . 9 4 H z , 1 6 : 9 , V I C = 1 6
H D M I , H D C P , R G B , 8 b i t C O L O R , D D C = 5 . 0 0 V
P C M , 2 C H , 4 8 k H z , 2 4 b i t , N O T H I - B I T
YCbCr4:4:4
RGB
R
G
B
Y
Cb
Cr
[Fig. 6.8] Displaying color space
<Recommended actions for when the image is not display with correct colors>
● Sink device: Check the supported color space (P.36) and operation using test patterns (P.39).
● Source device: Change output color space.
