Operator's Manual multimaster CAS 35 PBA Air Feeder PBA
20 Mathias Bäuerle GmbH

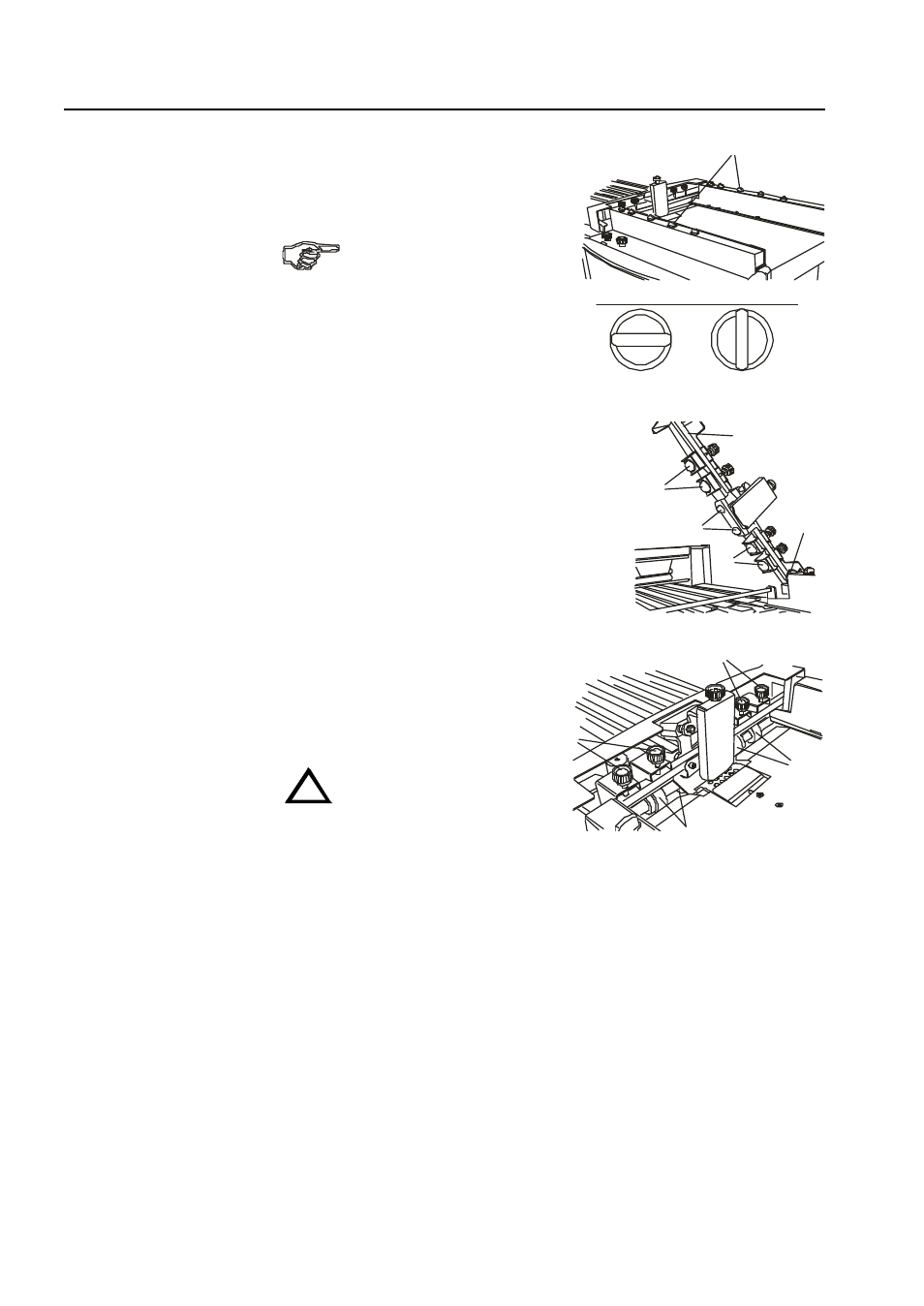

Air
• Open the valves (1) at both air brackets.
1
In most cases it is sufficient to open
the second and the last valve (with
respect to the format length).
closed open
Infeed Balls
During transport from the feeder to the register table,
the separated sheets are guided by infeed balls (2, 3).
Adjust the infeed balls in such a way that they run on
the guide rollers (4) below, independent of the
paper size.
2
3
3
4
4
5
5
For accurate positioning, loosen the clamp csrew (5)
of the ball cages by turning them counter-clockwise.
If the infeed width of the paper is smaller
than 28 cm resp. 11", the outer infeed balls
must be removed. For this lift the carrier
arm (6) until it is locked (7).
7
6
! Make sure that the carrier arm is
locked home!
Proceed as follows to return the carrier arm to its operating position after removal of
the outer infeed balls:
• Further lift the carrier arm with your left hand.
• Loosen the red locking bracket with your right hand.
• Lower the carrier arm.
• Lock the carrier arm firmly by pressing it against the spring.
