Operator's Manual multimaster CAS 35 PBA Fold Unit
Mathias Bäuerle GmbH 25
10. FOLD UNIT
Description
The fold unit of the multimaster CAS 35 has an infeed width of 35 cm and is generally
equipped with two automatic fold plates.
The automation of these fold plates comprises the automatic positioning of the fold
plate stops and the automatic closing of the deflectors.
It is not necessary to remove the fold plates and to insert the deflectors when changing
the fold.

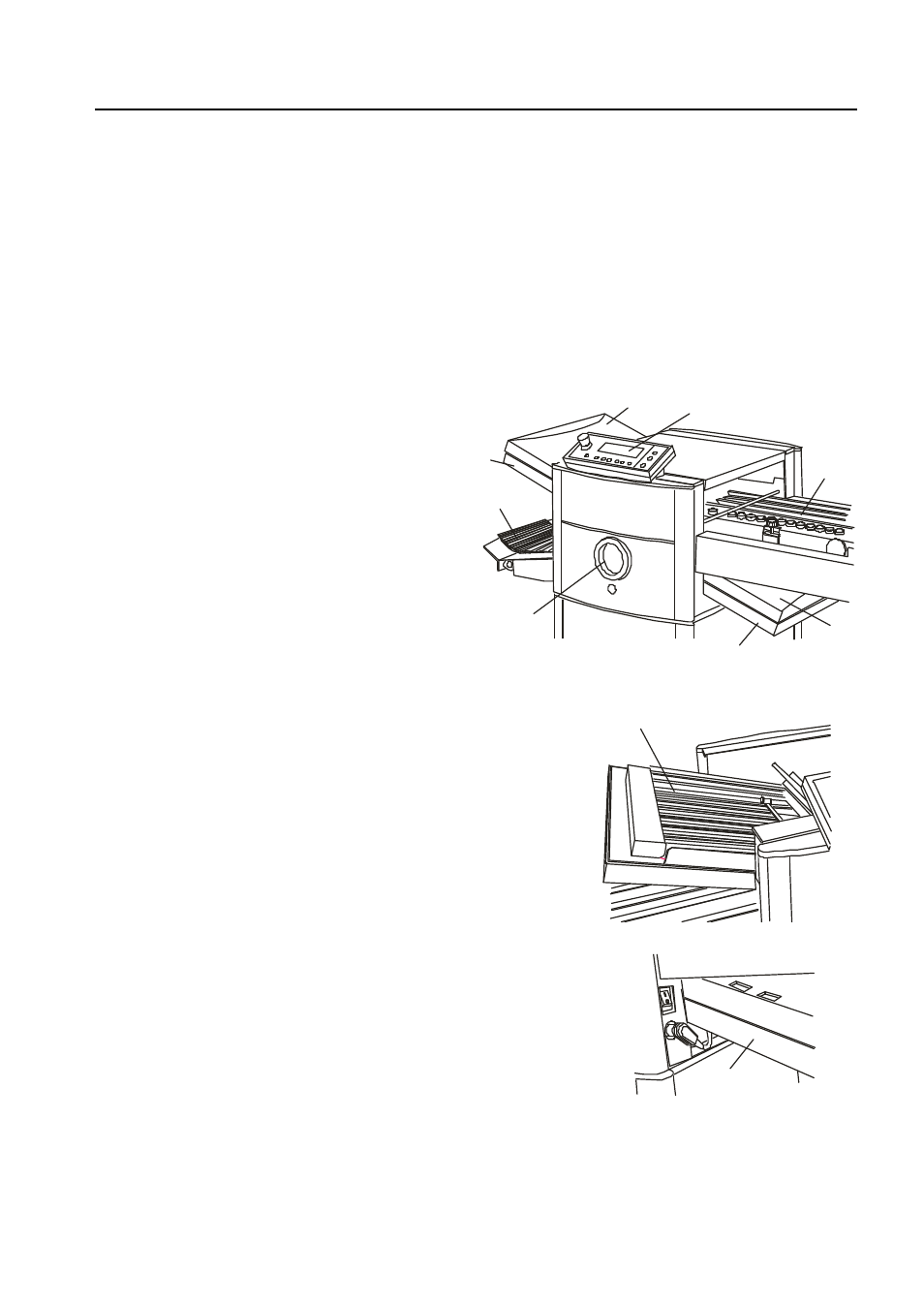

1 Noise cover
2 Noise cover
3 Operator panel
4 Handwheel
5 Register table
6 Delivery
1
5
4
2
3
6
7 Fold plate 1
8 Fold plate 2
7
7
8
8
