Operator's Manual multimaster CAS 35 PBA
Register Table
Mathias Bäuerle GmbH
23

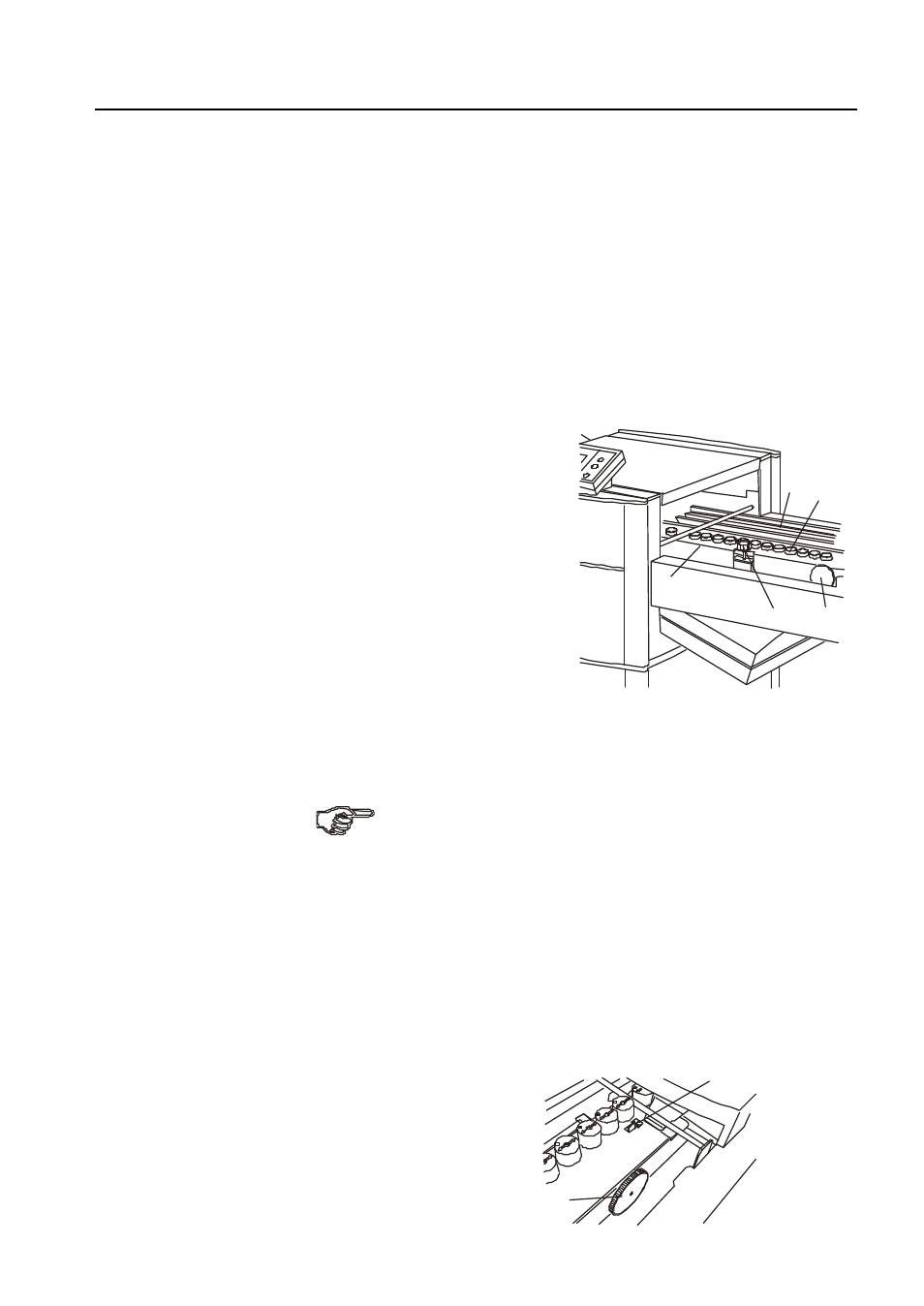

9. REGISTER TABLE
Principle of
Operation
On the register table, an inclined transport belt drives the sheets against an aligment
rail equipped with driver balls.
Description
Functional parts and operator elements of the register table:
1
Ball cages
2
Lock screw for register rail
3
Hold-down bars
4
Register rail
5
Adjustment wheel for changing the
infeed angle
6
Display window for angle
adjustment
1
2
5
4
3
Setting the Format
R egister rail, ball cage and transport belt form one single unit and are adjusted
together.
Make sure that the feeder is set to the correct format.
•
Loosen the lock screw (2) by turning it counter-clockwise.
•
Move the alignment rail in such a way that the mark on the rail lines up with the
mark on the left air bracket.
•
Retighten the lock screw (2) by turning it clockwise.
•
Distribute the hold-down bars (3) across the sheet width.
The infeed angle can be changed by means of the adjustment wheel (5) and the
scale (6).
5
6
