Type of Balls
The number and type of balls in the ball cage
(1) depend on format and type of paper.
Always try to use as few balls as
possible. Balls not needed for a
particular job should be removed
to avoid premature belt wear.
It is recommended to use the following balls:
Paper grades below 60 GSM: Plastic balls
Paper grades from 60 - 150 GSM: Plastic balls, every 6th should be a steel ball
Paper grades above 150 GSM: Mainly steel balls
In the infeed section (the first 4 to 6 balls) it is recommended to always use one
or two steel balls.
For very light paper grades every second ball opening should be left free.

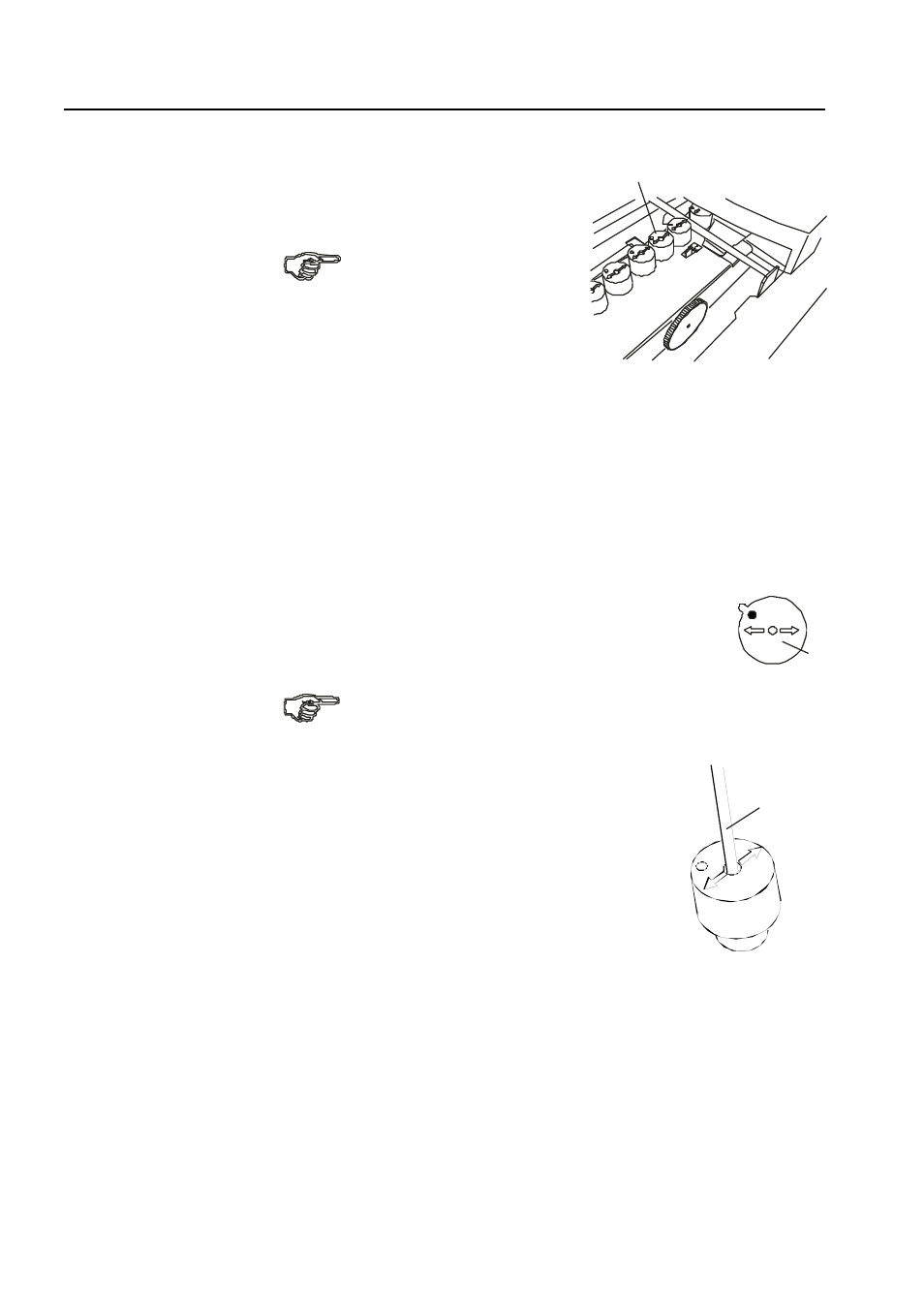

All balls are positioned in removable ball cages (2).
When inserting the ball cages make sure that the guide key of the
ball cages engages the corresponding cutouts in the ball rail.
2
Introduce the ball cages in such a manner that the arrows always point
in direction of paper travel.
Exchanging the
Balls
• Remove the ball cages from the ball rail.
• Use a pin (3) to push the ball from the ball cage.
• Insert a new ball into the ball cage from the
bottom.
• Insert the ball cages in the ball rail.
1
3
