Page 11
11

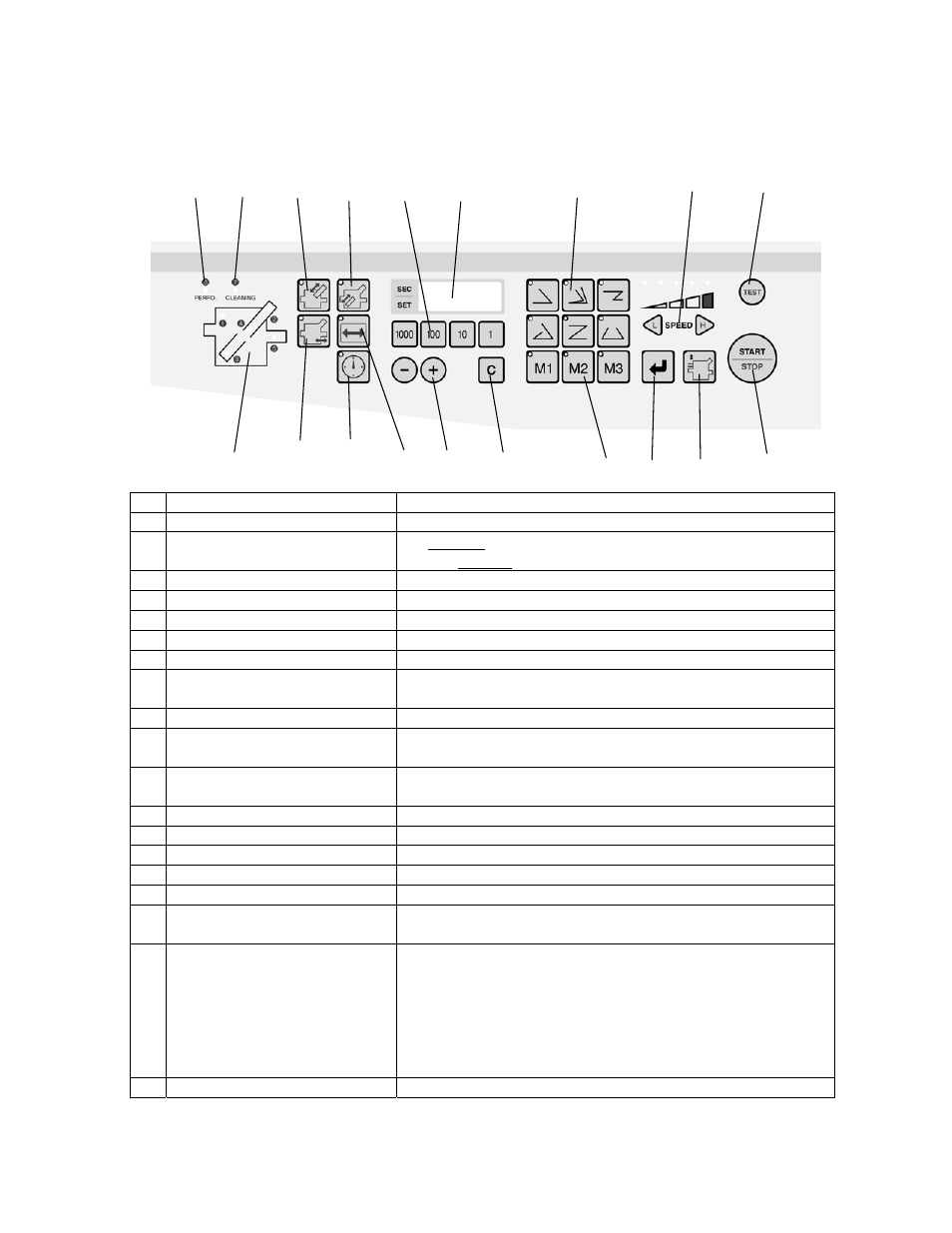

(4) Designation and Functions of Operations Panel
No.
Designation/Indication Function
①
START/STOP key
Starts and stops machine.
②
TEST key
1) Test folds two sheets without counting.
2) Also test blow without folding, when pressed more than 2 seconds.
③
Speed adjustment key
Adjusts speed.
④
Paper feed table up/down key
Moves up and down the paper feed shelf.
⑤
Store key
Fold position after adjustment is stored.
⑥
Memory 1/2/3 key
Three special fold types are stored.
⑦
Fold type key
Six fold types can be input and stored.
⑧
Counter
Shows the number of sheets, the position of the
stopper pin of Table 1 and 2, and paper size.
⑨
Clear/Reset key
Clears the counter / resets after an error.
⑩
+/- key
Used for adjusting the position of the stopper of Table 1 and 2, the
position of paper ejection roller, and paper length
⑪
Numerical key
Used for inputting the number of sheets to be folded and the length of
non-standard size paper
⑫
Table 2 stopper move mode key
Indicates when the position of stopper of Table 2 is adjusted.
⑬
Table 1 stopper move mode key
Indicates when the position of stopper of Table 1 is adjusted.
⑭
Paper length input mode key
Indicates when paper length is input
⑮
Interval key
Sets a certain time of interval to stop paper feed.
⑯
Paper ejection roller move key
Indicates when the position of the paper ejection roller is adjusted.
⑰
Check lamp
Indicates when paper stock runs short, or the location of paper feed
trouble.
⑱
Cleaning lamp
Indicates when cleaning of the FEED section (belt, roller) is necessary.
It lights every after 10,000 peaces of paper are fed.
For reset, turn on the machine holding down – key.
You can disable this function when you turn up the machine keep
pushing [single (Fold type)] key.
You can activate this function again when you turn up the machine
with[gate(Fold type)] key pushed.
⑲
Perforation mode lamp
Indicates when the optional perforating unit is installed.
①
④
⑤
⑥
⑨
⑩
⑭
⑮
⑯
⑰
②
③
⑦
⑧
⑪
⑫
⑬
⑱
⑲
