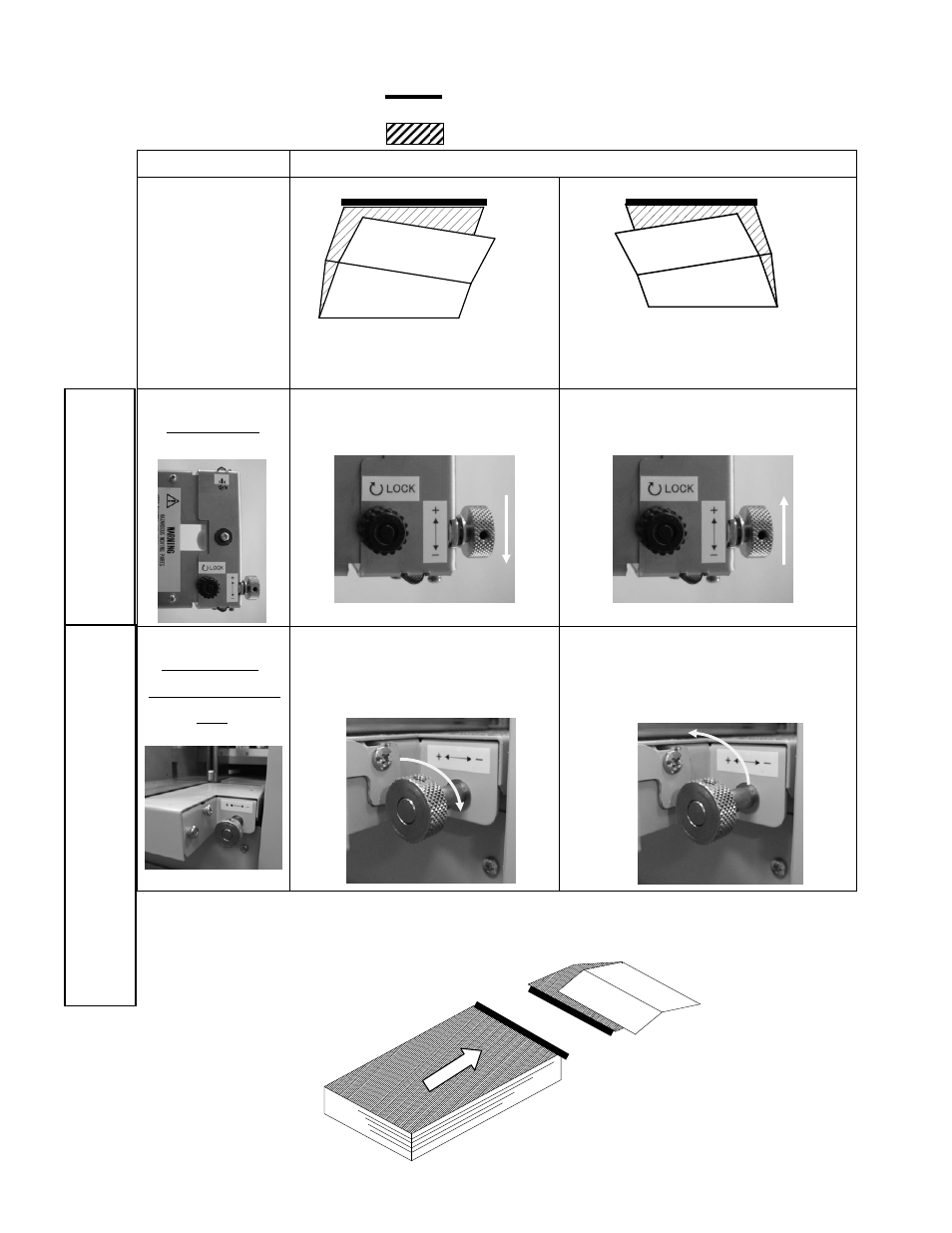

Skew Adjustment by folding pattern
Fold Type Double Parallel
Skew
Feed Roller Direction Adj. Dial
(Less than 34.31 lbs Bond)
Turn Metallic Thumb Screw
Counterclockwise ( - )
Turn Metallic Thumb Screw
Clockwise ( + )
Skew Adj. Knob
(More than 34.31 lbs Bond or
Feed Roller Direct. Adj. Dial is not
effective)
Turn Thumb Screw
Clockwise ( - )
Turn Thumb Screw
Counterclockwise ( + )
Bold line indicates leading edge when paper is place on feed try.
Shadow indicates upper surface when paper is on feed tray.
For less
than
34.31
lbs Bond
For
more
than
34.31 lbs
Bond or
Feed
Roller
Direct.
Adjust.
Dial is
not
effective
.
NOTE: Do not use, at the same time, Feed Roller Direction Dial and Skew Adjustment
Knob unless really needed.
