H36PVN Power Vent Indoor Gas Fireplace
Page 18
XG0649 - 031511
Installation
Linear Power Vent - Vertical Termination
** from fireplace to in-line power vent
Maximum allowable vent run must be reduced by ten feet (10'-0") for
every additional 90° elbow added . Figure's 8 and 8a .

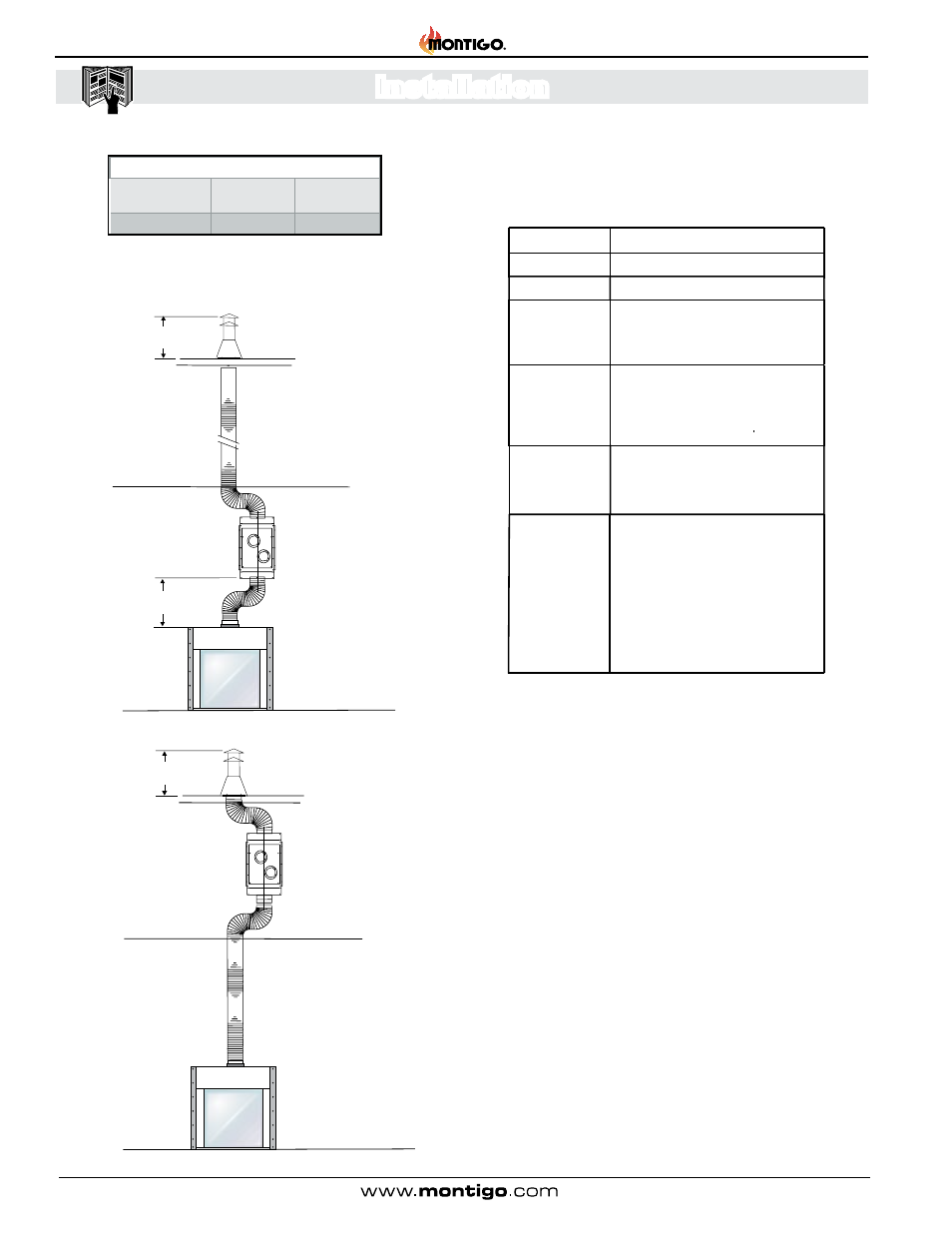

Figure 8 . Vertical Vent for the Linear Power Venter
Example A. Vertical Mounting with Vertical Termination
Example B. Vertical Mounting with Vertical Termination
Figure 8a . VerticaI Linear Power Vent with Vertical Vent Run
Venting Components
The following venting components and associated Montigo
part numbers are available for the LDVPV58:
Connection and installation of the vent components
should adhere to the following guidelines:
„ Connect all vent sections using a minimum of three sheet
metal screws on the outer pipe flue .
„ Ensure the pipe ends male to female slide in a minimum
of 1 1/2" of overlap .
„ Ensure all runs are supported with a minimum of 3 supports
per 10’ of venting .
„ When hanging/ supporting venting, ensure that 1” clearance
is maintained on all sides to any combustible material .
„ Ensure when cutting sections of rigid pipe to maintain
integrity of internal supports .
„ Place the springs, supplied with the pipe kit, between the
outer and inner pipes to keep the pipes separate and avoid
any possible hot spots .
„ Montigo recommends the use of a flex section for the final
pipe connected directly to the fireplace offering greater
flexibility of installation and absorption of movement .
„ All exterior joints in venting should be sealed with high
heat silicone RV230 .
A - Termination DVPV58
C - Control Module
D - Flex Sections
G - Power Cord
Harnesses:
F - Elbows
B - Power Vent LDVPV58
RHSIT05
EPVH10 -10 foot power cord and harness
EPVH20 -20 foot power cord and harness
EPVH30 -30 foot power cord and harness
EPVH40 -40 foot power cord and harness
EPVH50 -50 foot power cord and harness
EPVH60 -60 foot power cord and harness
EPVH70 -70 foot power cord and harness
EPVH80 -80 foot power cord and harness
EPVH90 -90 foot power cord and harness
EPVH100 -100 foot power cord and harness
PEL-90MM (m/m 90° Elbow)
PEL-90FF (f/f 90° Elbow)
PEL-90FM (f/m 90° Elbow)
PEL-45FM (f/m 45° Elbow)
E - Rigid Sections PEXT - 1 (12" m/f Section)
PEXT - 2 (24" m/f Section)
PEXT - 3 (36" m/f Section)
PEXT - 4 (48" m/f Section)
PXT-20 (20" section)
PFL-1 (12" Section)
PFL-2 (24" Section)
PFL-3 (36" Section)
PFL-4 (48" Section)
Venting Installation
Maximum
Vent Run
Minimum
Vent Run**
Max. #
Elbows
80 Feet 2 Feet 3
2’-0 ”
MIN
Vertical Installed
Linear PowerV ent
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
90deg
Elbow
Termination
2’-0 ”
MIN
LDVPV58
Vertical Installed
Linear Power Vent
Vertical
Flex Pipe
90deg
Elbow
90deg
Elbow
90deg
Elbow
90deg
Elbow
Termination
2’-0 ”
MIN
LDVPV58
