3.5.4 Cross
You can detect a moving object crossing a specified virtual line (cross line) in a watch area.
You can see current status of moving object by “Bounding Box”.
(“Bounding box” means you can see a virtual rectangle on moving object. In prior of this, you
make sure that you set “On” in display and Bounding box in OSD Setup)
Min. : Set the min size of object while object crossed.
Max. : Set the max size of object while object crossed.
Direction : Set the direction while object cross.
CW : CW (Clock Wise)
CCW : CCW (Counter Clock Wise)
Both : CCW (Counter Clock Wise), CW (Clock Wise),
Tracking : Set the tracking use while object crossed.
Base : Set the reference point while object entered.
It occurs a event when reference point enters in a specified enter box.
Top : Reference point is the top of object.
Bottom : Reference point is the bottom of object.
Count : Set the counting of crossing object.
Set Point : Set the cross line.
Clear
: Remove the cross line.

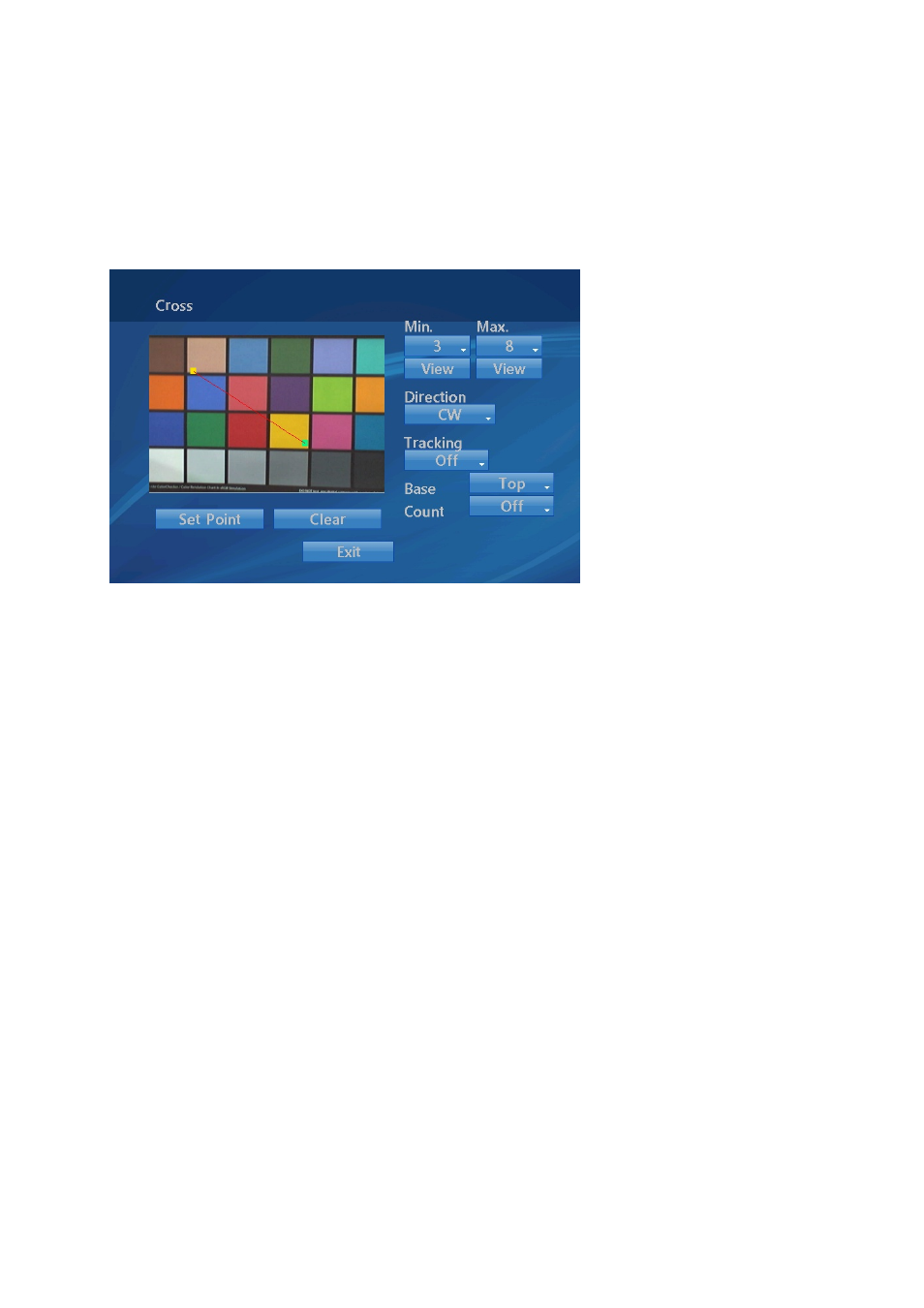

Follow steps as below to set the Cross:
1. Set the min size of the enter object and set the max size.
2. Select the cross direction.
3. Select the tracking use while object crossed.
4. Select the “Set Point” for cross line.
