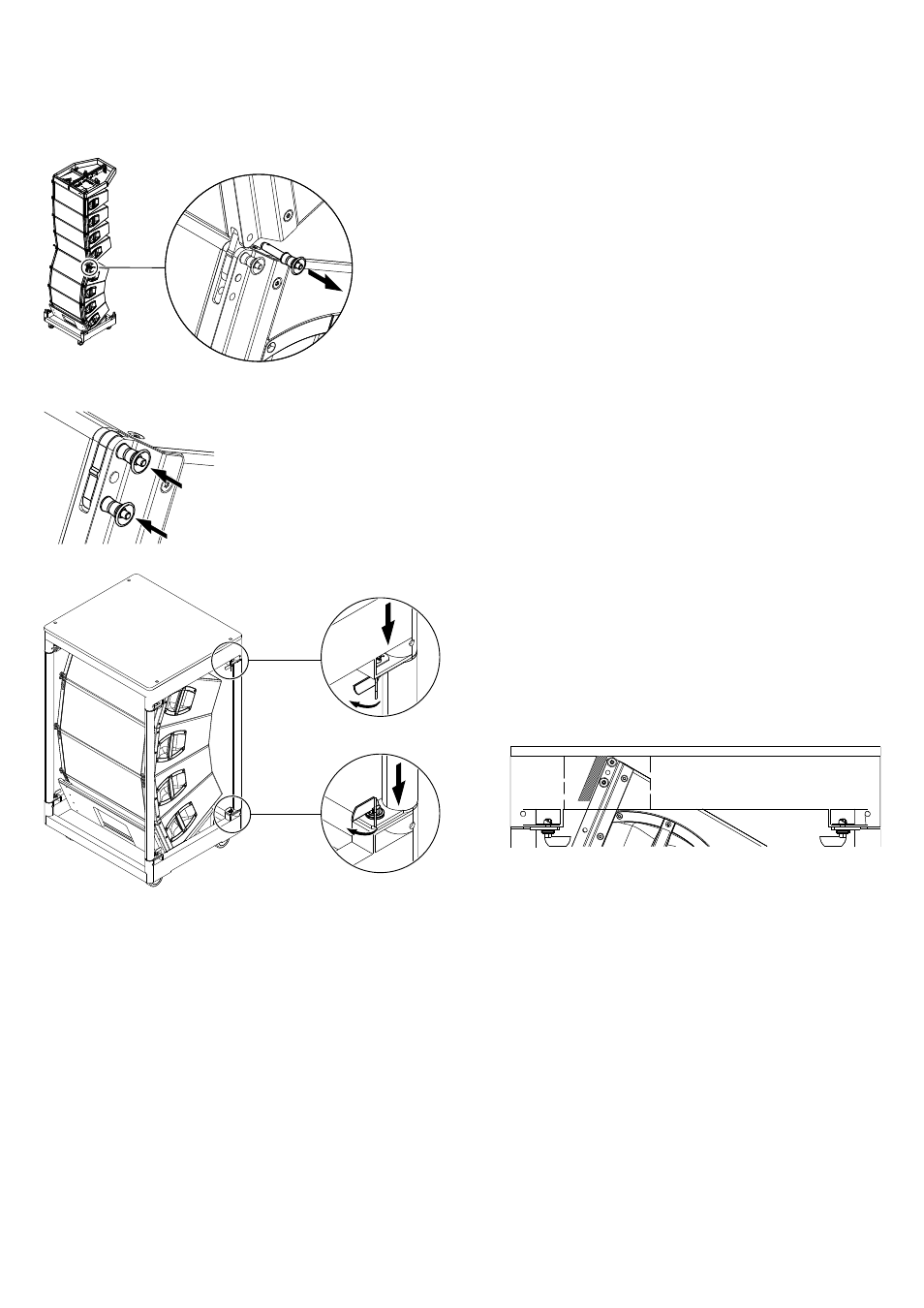

6. Lower the array slowly and evenly onto the cart until the Front
links are load-free.
7. Release the Locking pins of the Front links on the top cabinet of
the assembly while a second person renders support to
prevent the upper suspended assembly from unpredictable
swing.
8. Slowly lift the remaining assembly to allow the cart to be
turned or moved aside.
Proceed in the same manner until the array is completely
dismantled.
2. Reassembling the cart
1. Slide in the Front links of the top cabinet and reinsert the two
Locking pins.
2. Attach the connecting poles to the bottom tray and lock all
fasteners (CamLocks).
3. Attach the top lid and lock all fasteners (CamLocks).
Note: The top lids of the touring carts are equipped with
additional guiding tracks to fix the cabinet assemblies in place.
In conjunction with the E7463 V Touring cart 4 x V8/V12
observe the direction of attachment as shown in the graphic
below.
d&b V-Series Rigging manual (1.9 EN) 42
