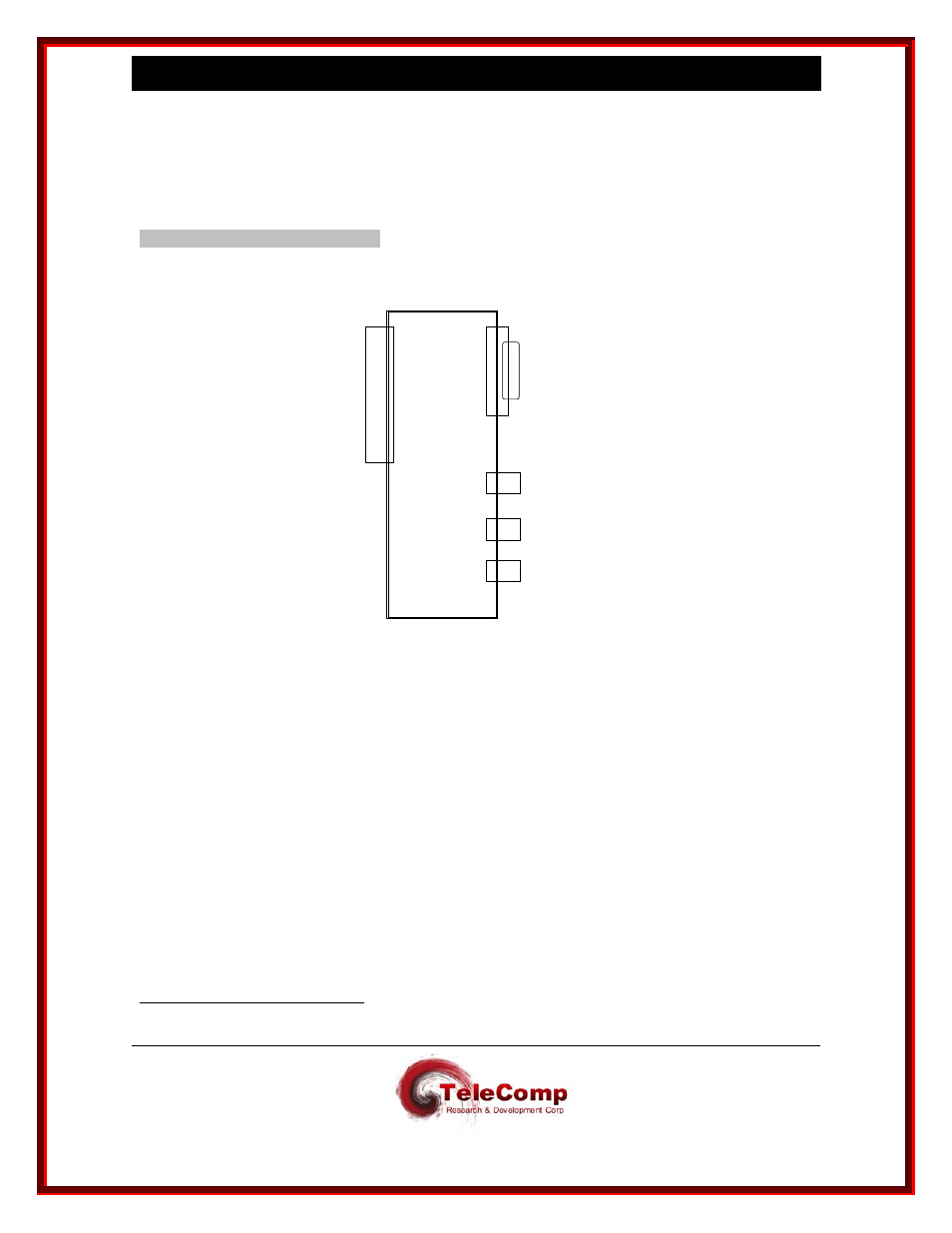

2.3 Standard Performance I/O Board
The UMI mates with the CEY5 I/O board in support of the UMI connectivity options. The CEY5
I/O board contains all the necessary connectors the UMI requires for currently available Console
and LAN connections.
Cables and adapters are available.
CEY5
Console
LAN
DSU
(Currently Not Used)
Serial
(Currently Not Used)
2.3.1 Console
This interface requires a standard RJ45 terminated, twisted pair, data cable. It connects as a
data terminating equipment (DTE) to an asynchronous device and uses RS-232C signaling.
Connection to the UMI console is required for UMI “Module-Based” Administration (described
later in this document) or StarKeeper® II NMS alarm collection
2
. Otherwise, the console can be
disconnected during normal operation.
2.3.2 LAN
This interface requires a standard RJ45 terminated Category 5, twisted pair, data cable. It
connects to a 10BaseT hub or Router on the local LAN segment.
2 The UMI also supports console access through a TCP telnet connection, which is accessed
using TCP port 1023. This service is available only when the unit is in service.
