U N I V E R S A L M E D I A T I O N I N T E R F A C E ( U M I ) U S E R M A N U A L
04/30/09 9

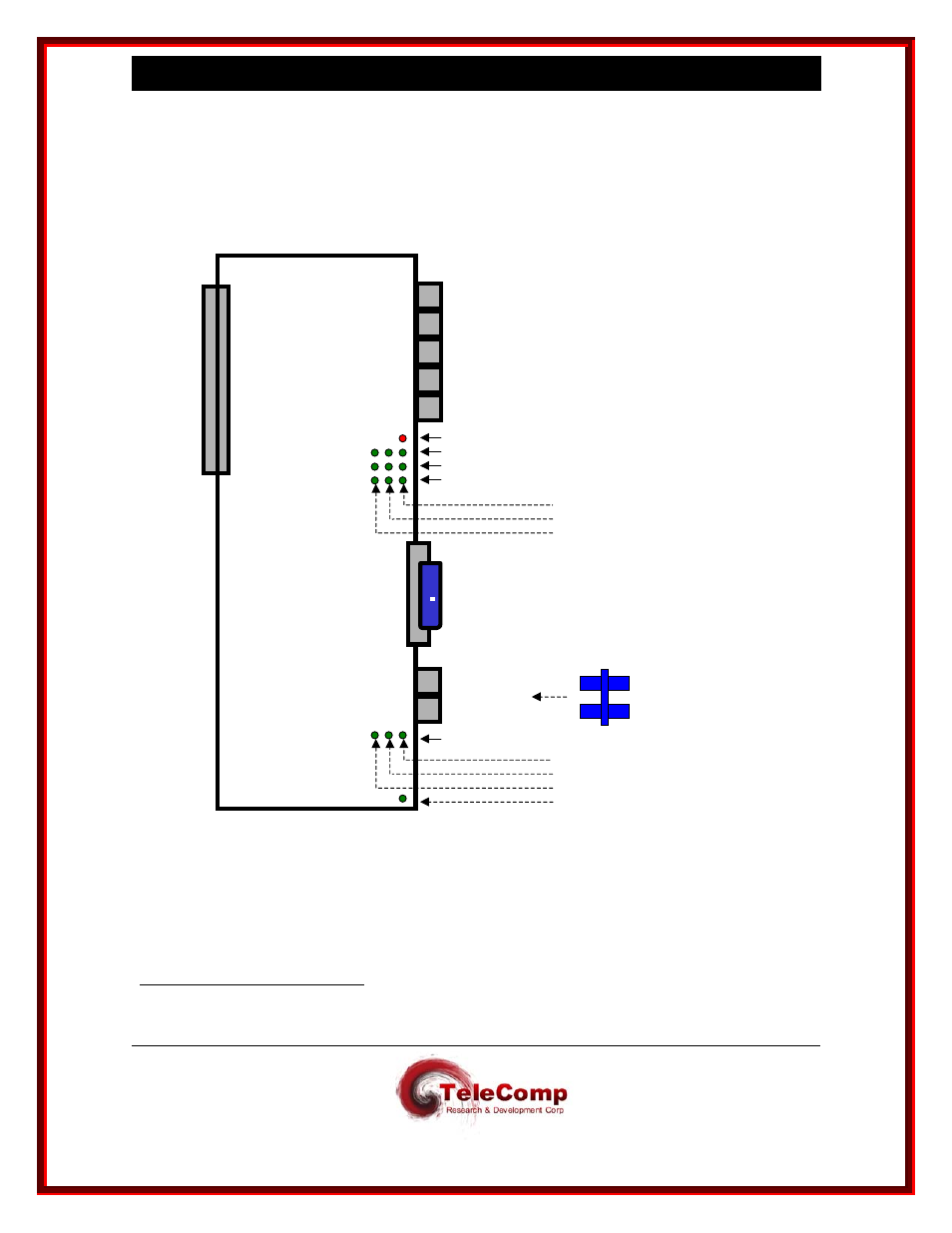

2.2 High Performance I/O Board
The UMI
1
mates with the DTK41 High Performance I/O (HPIO) board in support of the UTM
connectivity options. The DTK41 I/O board contains all the necessary connectors the UTM
requires for currently available Console and LAN connections.
Note: Cables and adapters are available
DTK41
Console
10/100 #3
DSU
Serial
10/100 #2
10/100 #1
DSU
10/100 #3
10/100 #2
10/100 #1
Link
Traffic
100
Fiber (SC)
Link
Traffic
100
Fiber Indicators ST Plug-In
(Only if ST Fiber
is required)
Fiber (ST)
Power
2.2.1 Serial
The UMI does not use the serial interface of the DTK41 at this time. The DTK41 Serial interface is
software configurable. Options are as an RS-232C DTE for serial rates up to 64Kbps, or as a
V.35 DTE for serial rates up to E1.
1 A Series 1:2 UMI is required for the DTK-41 (or any other I/O board which requires power) since the
original UMI did not provide any power whatsoever to the I/O module, and the original UMI did not
provide a management interface.
