APKD DOUBLE-CASE, DOUBLE-SUCTION USER INSTRUCTIONS 26999903 07-13
Page 47 of 55 flowserve.com

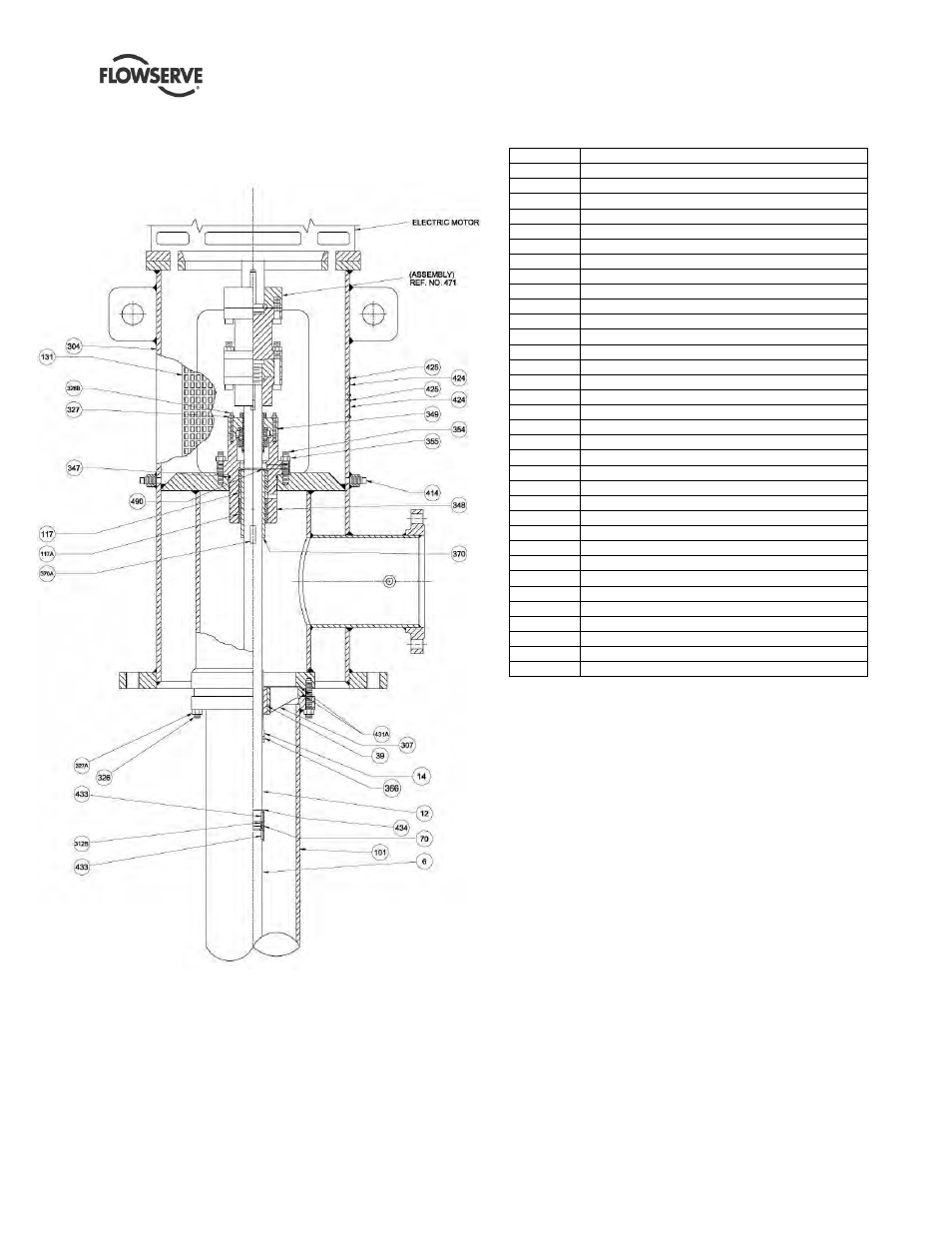

8.1.1 Parts identification: Discharge head and
column assembly
Typical wet pit/sump type design-product lubricated
APKD
8.1.1.1 Parts list-Disch. head and column
Assy.
Ref no. Description
6 PUMP SHAFT
12 TOP SHAFT
14 SLEEVE-TOPSHAFT
39 BEARING
SLEEVE
70 KEYED SHAFT SLEEVED
101 COLUMN PIPE
117 BEARING SLEEVE
117A BEARING SLEEVE
131 COUPLING GUARD
304 DISCHARGE HEAD
307 BEARING RETAINER
312B CLAMP RING
326 STUD
326A STUD
327 NUT-HEX
327A NUT-HEX
347 O-RING
348 STUFFING
BOX
349 MECHANICAL SEAL
354 STUD
355 NUT-HEX
366 SET
SCREW
370 STUFFING BOX-SLEEVE
370A KEY-SLEEVE
414 PLUG
424
FLOWSERVE DISPLAY NAMEPLATE
424 FLOWSERVE SERIAL PLATE
425 DRIVE SCREW
425 DRIVE SCREW
431A O-RING
433 KEY-COUPLING
434 RETAINING
RING
471 FLANGED COUPLING ASSEMBLY
490 RETAINING RING
