APKD DOUBLE-CASE, DOUBLE-SUCTION USER INSTRUCTIONS 26999903 07-13
Page 48 of 55 flowserve.com

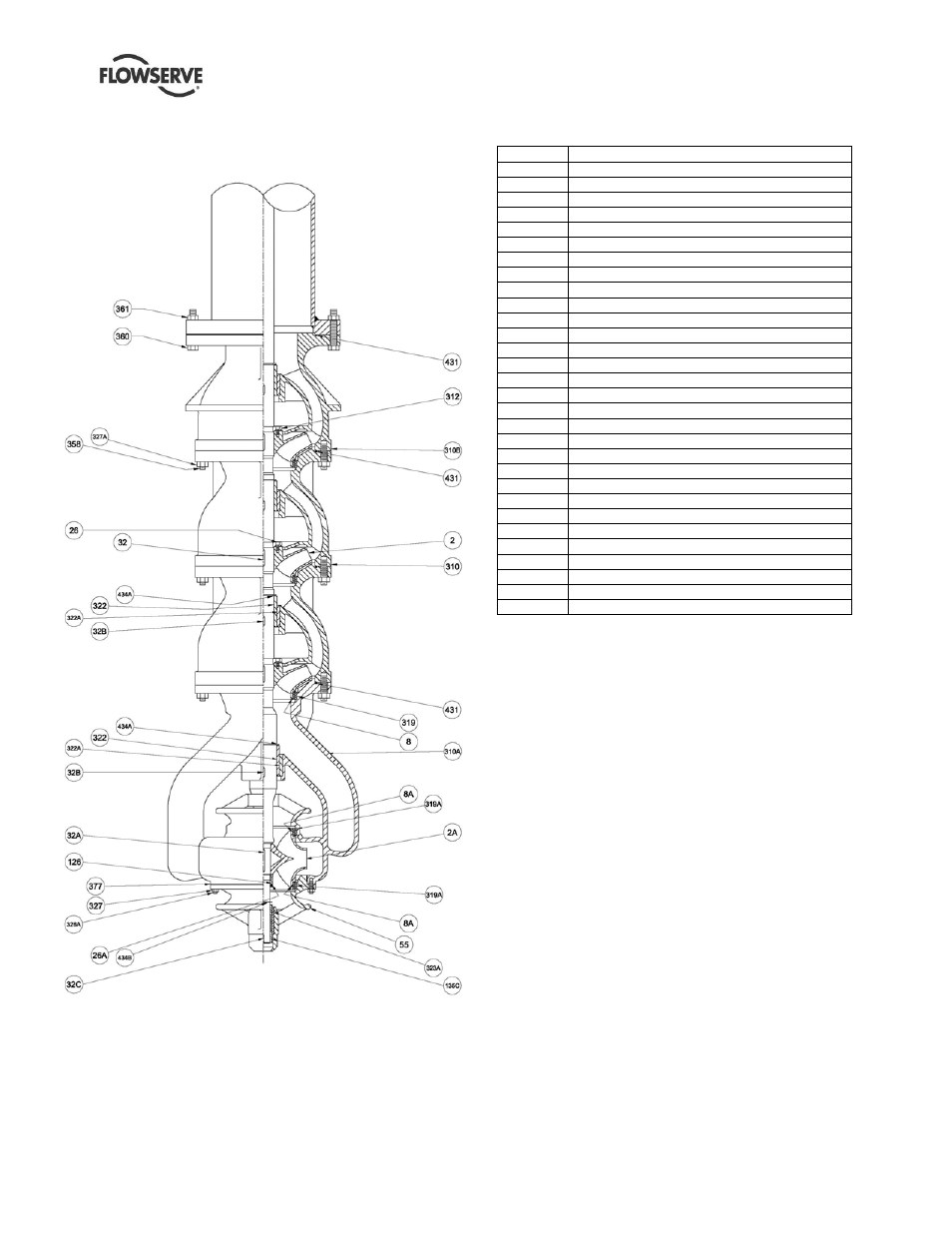

8.1.2 Parts identification: Bowl assembly
Typical wet pit/sump type design-product lubricated
APKD 8.1.2.1 Parts list-Bowl assembly
Ref no. Description
2 1 st STAGE IMPELLER
2A INTERMEDIATE IMPELLER
8 WRG RING – INT. IMPELLER
8A WRG RING – 1 ST STAGE IMPELLER
26 SCREW CAP-SOCKET
26A SCREW CAP-SOCKET
32 KEY-INT. IMPELLER
32A KEY-1 st STAGE IMPELLER
32B KEY-JOURNAL SLEEVE-BOWLS
32C KEY-JOURNALSLEEVE-SUCTION HEAD
55 SUCTION HEAD
126 SHAFT NUT
135C JOURNAL SLEEVE-SUCTION HEAD
310 APKD BOWL
310A APKD BOWL 1 st STAGE
312 IMP. SPLIT RING
319 BOWL WRG RING
319A BOWL WRG RING
322 JOURNAL SLEEVE-BOWLS
322A BEARING SLEEVE – SUCTION HEAD
323A BEARING SLEEVE – BOWLS
326A STUD
327 NUT-HEX
327A NUT-HEX
358 STUD
377 GASKET
426 SCREW
CAP-HEX
431 O-RING
434 RETAINING
RING
434A RETAINING RING
